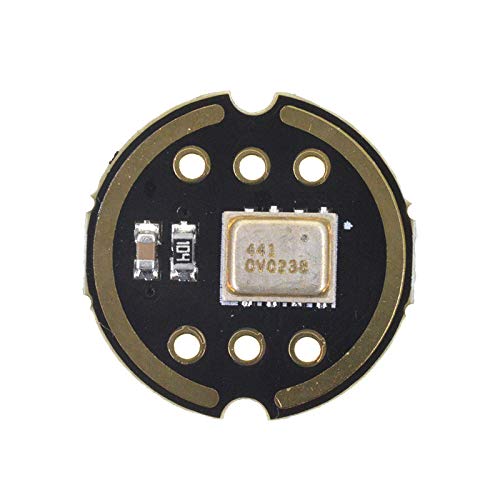

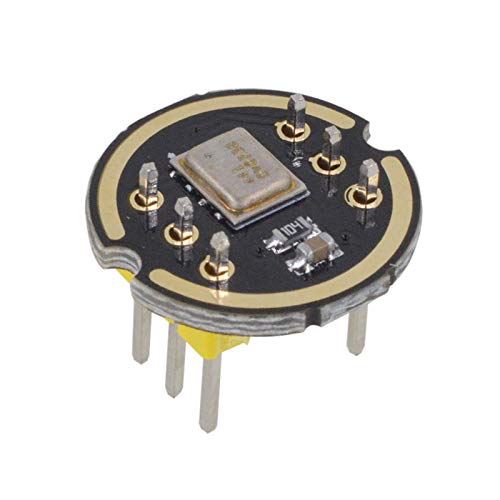

INMP441 MEMS Omnidirectional Microphone Module High Precision/SNR Low Power I2C Interface Supports ESP32

The INMP441 MEMS Omnidirectional Microphone Module delivers exceptional performance with its low power consumption and digital output capabilities. This omnidirectional MEMS microphone features a bottom port design and integrates various components, including a MEMS sensor, signal conditioning, an analog-to-digital converter, an anti-aliasing filter, and power management, all connected through a standard 24-bit I2S interface. This I2S interface enables direct integration with digital processors like DSPs and microcontrollers, eliminating the need for an audio codec in your setup. The INMP441 boasts a high signal-to-noise ratio, making it ideal for near-field applications, and its broad frequency response ensures the reproduction of natural sound at high definition.

Features:

• Digital I2S interface providing precise 24-bit data output

• Impressive signal-to-noise ratio of 61 dBA

• High sensitivity level at 26 dBFS

• Consistent frequency response ranging from 60 Hz to 15 kHz

• Energy-efficient with a low current consumption of just 1.4 mA

• Superior power supply rejection (PSR) at -75 dBFS

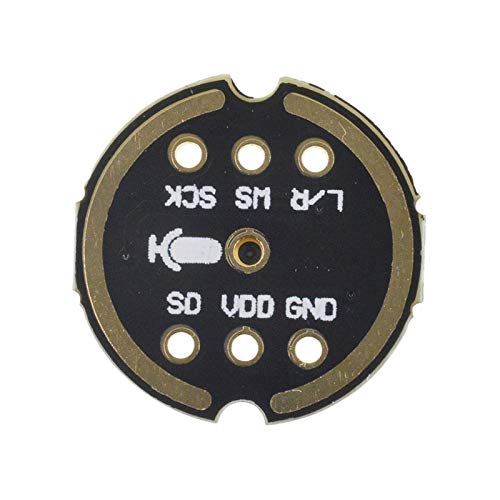

Interface Definition

• SCK: Serial clock for I2S communication

• WS: Serial data word selection for I2S communication

• L/R: Selection for left/right channel output.

• When set to low, the microphone transmits a signal on the left channel of the I2S frame.

• When set to high, the microphone sends signals to the right channel.

• SD: Serial data output for the I2S interface.

• VCC: Power input range of 1.8V to 3.3V.

• GND: Ground connection.

NMP441 Connection with ESP32

• SCK - GPIO14

• SD - GPIO32

• WS - GPIO15

• L/R - GND

• GND - GND

• VDD - VDD3.3

Package Includes:

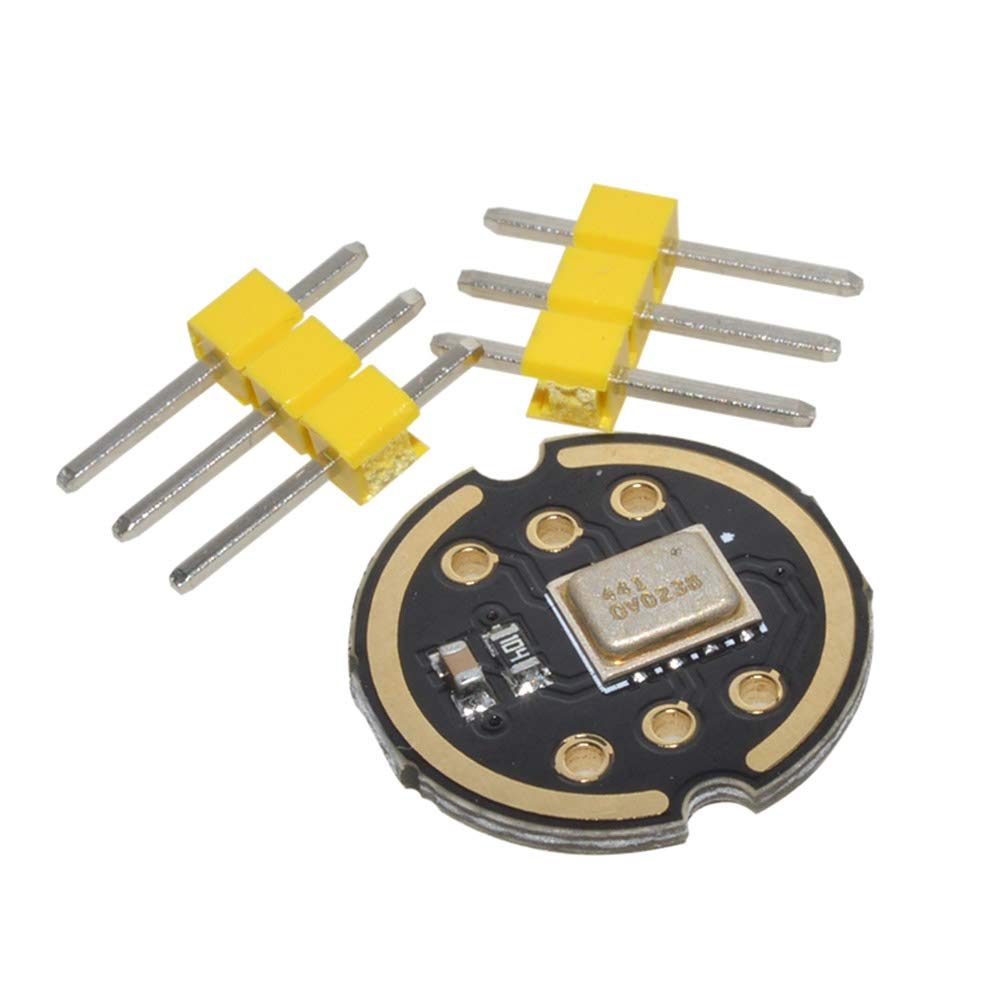

• 1 X INMP441 MEMS Microphone Sensor Module
