RC522 RFID Kit 13.56MHz Reader/Writer Module with Standard RFID Card, Key Tag, and Header Pins for Access Control & DIY Projects

The RC522 - RFID Reader/Writer 13.56MHz with Cards Kit includes a 13.56MHz RF reader/writer module based on the RC522 IC and two S50 RFID cards. The MF RC522 is a highly integrated module for contactless communication at 13.56 MHz, supporting ISO 14443A/MIFARE mode.

The RC522 RFID Reader features an advanced modulation and demodulation algorithm, ensuring smooth RF communication at 13.56 MHz. The included S50 RFID cards simplify the learning process and help you easily integrate 13.56 MHz RF technology into your project.

This module communicates with microcontrollers via SPI, and there are already numerous open-source projects in the hardware community utilizing RC522 RFID communication, especially with Arduino.

RC522 RFID 13.56MHZ Reader Writer Module Features:-

• Integrated MF RC522

• 13.56MHz contactless communication card chip.

• Low-voltage, low-cost, small size of the non-contact card chip to read and write.

• Suitable for Smart meters and portable handheld devices.

• Advanced modulation and demodulation concept completely integrated in all types of 13.56MHz passive contactless communication methods and protocols.

• 14443A compatible transponder signals.

• ISO14443A frames and error detection.

• Supports rapid CRYPTO1 encryption algorithm, terminology validation MIFARE products.

• MFRC522 support MIFARE series of high-speed non-contact communication, two-way data transmission rate up to 424kbit/s.

• Low cost, and ideal for user equipment development.

• The reader and RF card terminal design meets advanced applications development and production needs.

• Can be directly loaded into the various reader molds, very convenient.


RC522 RFID 13.56MHZ Reader Writer Module Specifications:-

• Operating Current :13-26mA / DC 3.3V

• Idle Current :10-13mA / DC 3.3V

• Sleep Current: < 80uA

• Peak Current: < 30mA

• Operating Frequency: 13.56MHz

• Supported card types: mifare1 S50, mifare1 S70 MIFARE Ultralight, mifare Pro, MIFARE DESFire

• Environmental Operating Temperature: -20 - 80 degrees Celsius

• Environmental Storage Temperature: -40 - 85 degrees Celsius

• Relative humidity: relative humidity 5% - 95%

• Reader Distance: ≥ 50mm / 1.95" (mifare 1)

• Module Size: 40mm × 60mm

• Module interface: SPI

• Data transfer rate: Maximum 10Mbit/s

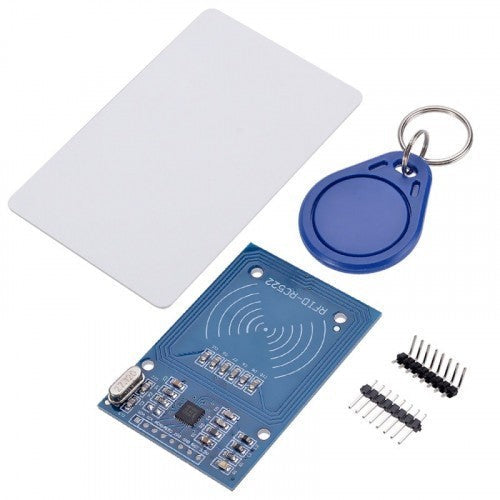

RC522 RFID 13.56MHZ Reader Writer Module Package Content:-

• 1x  A RFID-RC522 Module

• 1x  RFID Blank Card

• 1x  special-shaped card (as shown by the key ring shape)

• 1x Straight Pin

• 1x Curved Pin
