The TB6600 Stepper Motor Driver Controller 4A is a professional-grade, user-friendly solution designed for controlling two-phase stepper motors. It seamlessly integrates with Arduino and various microcontrollers that output a 5V digital pulse signal. Jumper wires facilitate the connection between the stepper motor and the Arduino.

This Arduino-compatible stepper motor driver features a broad power input range, accepting 9~42VDC power supply. It can deliver a peak output current of 4A, suitable for most stepper motor applications. The driver supports both speed and directional control, enhancing operational versatility.

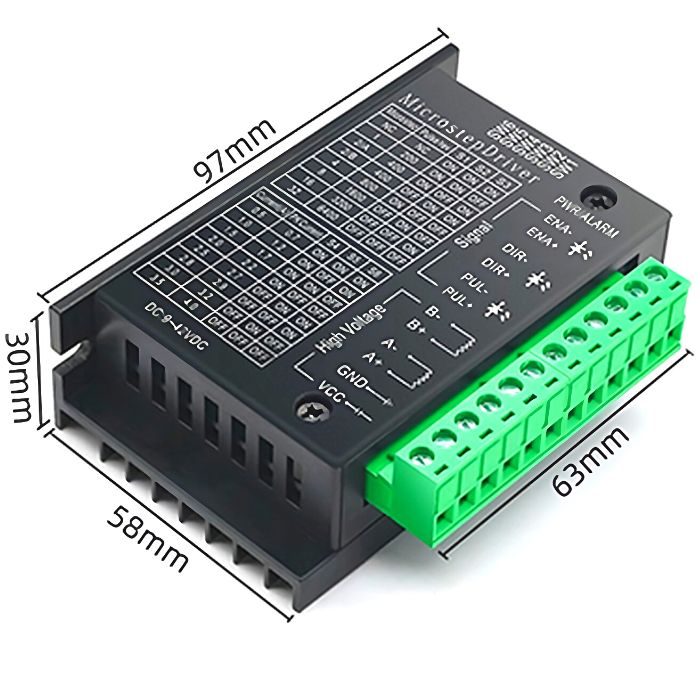

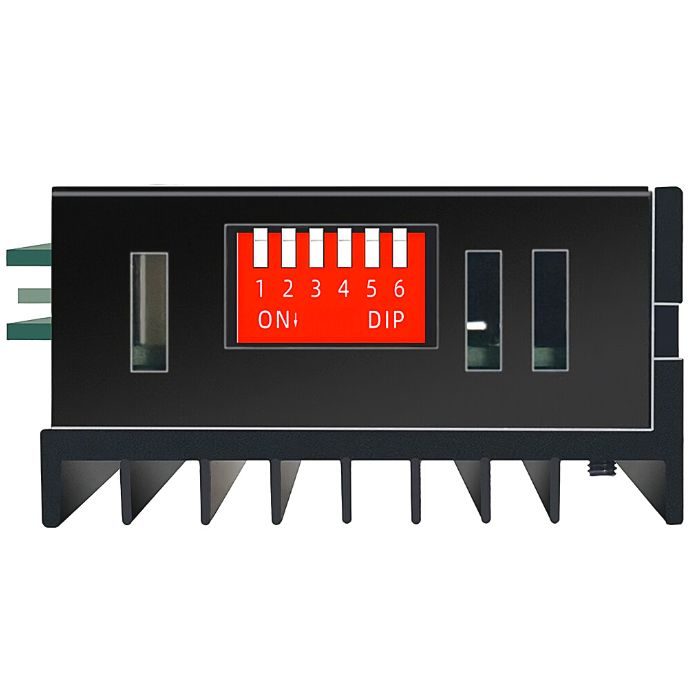

Customization is made easy with a 6 DIP switch configuration that allows you to set micro-stepping and output current. It offers 7 micro-step settings (1, 2 / A, 2 / B, 4, 8, 16, 32) and 8 current control options (0.5A, 1A, 1.5A, 2A, 2.5A, 2.8A, 3.0A, 3.5A). High-speed optocoupler isolation is employed across all signal terminals to improve resistance to high-frequency interference. This driver efficiently powers 57, 42-type two-phase, four-phase, and hybrid stepper motors.

The TB6600 Stepper Motor Driver Controller 4A operates within a voltage range of 9~42V TTL, featuring an upgraded segment count of 32 for the 42/57/86 stepper motors, making it well-suited for high subdivision applications. It is compatible with step motors of types 57, 42, and 86, spanning both 4-phase and 2-phase configurations (4, 6, and 8 wire).

 Control signal connections:

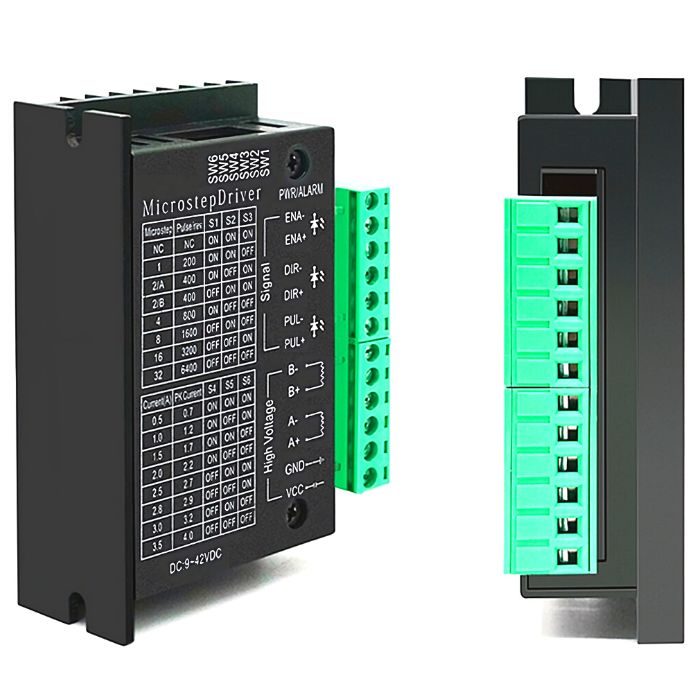

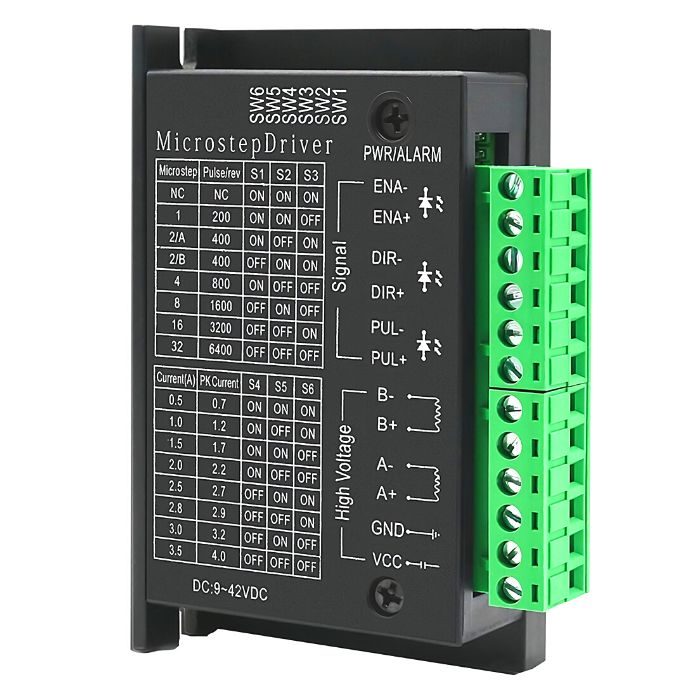

•    PUL +: positive pulse signal input.

•    PUL-: negative pulse signal input.

•    DIR +: positive control for motor direction.

•    DIR-: negative control for motor direction.

•    ENA +: positive control to disable the motor.

•    ENA-: negative control to disable the motor.

 Motor winding connection:

• A+ : connection for A+ phase motor winding.

• A- : connection for A- phase motor winding.

• B+ : connection for B+ phase motor winding.

• B- : connection for B- phase motor winding.

 Supply voltage connection:

•         VCC: positive terminal for power supply “+”

•         GND: negative terminal for power supply “-”

Features:

• Bipolar constant current H bridge drive.

• Offers eight distinct output current types.

• Includes six available subdivision modes.

• High-speed photoelectric isolation for input signals.

• Features offline storage capabilities.

• The semi-enclosed design is built to withstand demanding environments.

• Includes a half-automatic current lock function to enhance energy efficiency.
