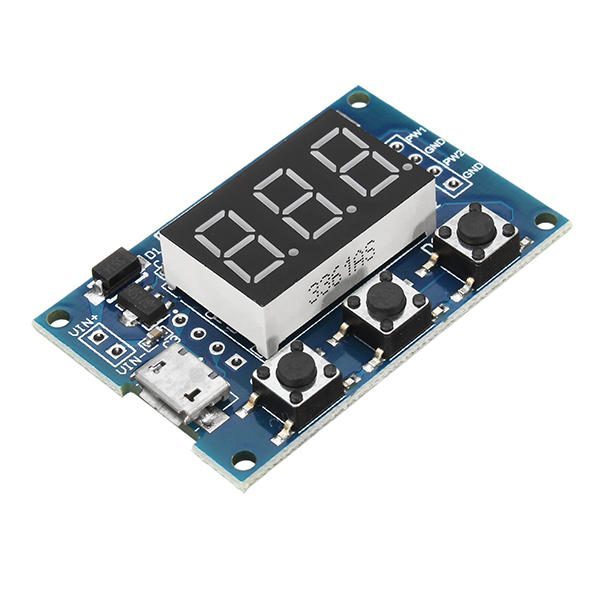

2 Channel PWM Pulse Frequency Adjustable Duty Cycle Square Wave Rectangular Wave Signal Generator Module

The 2 Channel PWM Pulse Frequency Adjustable Duty Cycle Square Wave Rectangular Wave Signal Generator Module is designed as a dual-channel PWM/Pulse generator capable of variable frequencies ranging from 1Hz to 150KHz and adjustable duty cycles from 1% to 100%. Users can manage the frequency and duty cycle through onboard switches or via a serial communication protocol. This module serves as an effective solution for driving stepper motors with variable frequency pulse inputs and controlling DC motors using adjustable PWM duty cycles.

Features:

• Two independent PWM channels with adjustable frequency and duty cycle.

• Extensive frequency range of 1Hz to 150KHz.

• Parameter adjustments possible through Serial protocol.

• Dimensions: 41mm x 28mm with a thickness of 1.6mm.

Specifications:

• Operating Voltage (VDC): 5 to 30.

• USB Type: Micro USB.

• Frequency Range: 1Hz to 150KHz.

• Frequency Precision: 0.02.

• Operating Temperature (°C): -30 to 60.

• Signal Load Capacity: Output current ranges from 8 to 30mA.

• Dimensions in mm (LxWxH): 44mm x 30mm x 11mm.

• Weight (g): 8.

Application Fields:

• Functions as a square wave generator for experimental development.

• Utilised for driving stepping motor drivers with square waves.

• Generates adjustable pulses for microcontrollers.

• Produces adjustable pulses for controlling related circuits (e.g., PWM for light speed adjustments).

Serial Port Control:

• Communication Standard: 9600 bps.

• Data Bit: 8.

• Stop Bit: 1.

• Verify Bit: None.

• Flow Control: None.

Setting PWM Frequency:

• “S1FXXXT”: set PWM1 frequency to XXX Hz (001~999).

• “S1FXX.XT”: set PWM1 frequency to XX.X KHz (00.1~99.9).

• “S1F:X.X.X.T”: set PWM1 frequency to XXX KHz (0.0.1~1.5.0).

• “S1”: PWM1.

• “S2”: PWM2.

• “F”: Frequency.

• “D”: Duty cycle.

• “T”: Stop sign bit.

Setting PWM Duty Cycle:

• “S1DXXXT”: set PWM1 duty cycle to XXX (001~100).

• “S2DXXXT”: set PWM2 duty cycle to XXX (001~100).

• Successful setting feedback: DOWN.

• Unsuccessful setting feedback: FALL.

Parameter Setting:

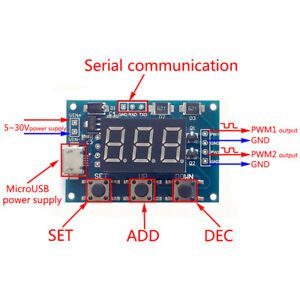

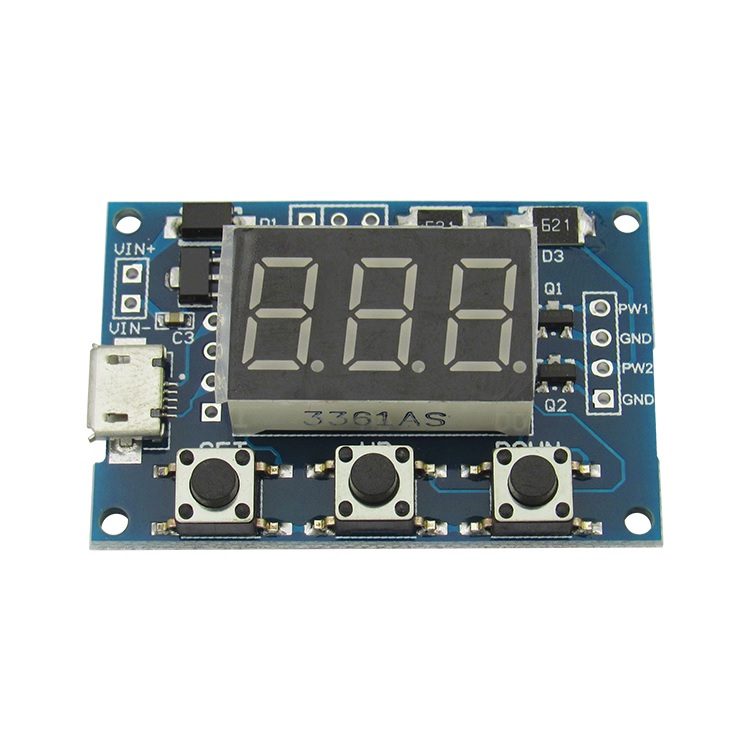

This module features a 3-channel key: Set, Up, Down.

1. By briefly pressing the SET key, users can toggle through four parameter values (FR1: PWM1 frequency; dU1: PWM1 duty cycle; FR2: PWM2 frequency; dU2: PWM2 duty cycle); the corresponding parameter name will flash before switching.

2. Directly press the UP or DOWN key to modify the current parameter value.

3. For the 2-channel PWM, three frequency values can be set; in the frequency display interface, long-pressing SET allows for cycling through the three frequency duty cycles, which are consistent (XXX: 1Hz~999Hz; XX.X: 0.1KHz~99.9KHz; X.X.X.: 1KHz~150KHz).

Package includes:

• 1 x 2 Channel PWM Generator Module.
