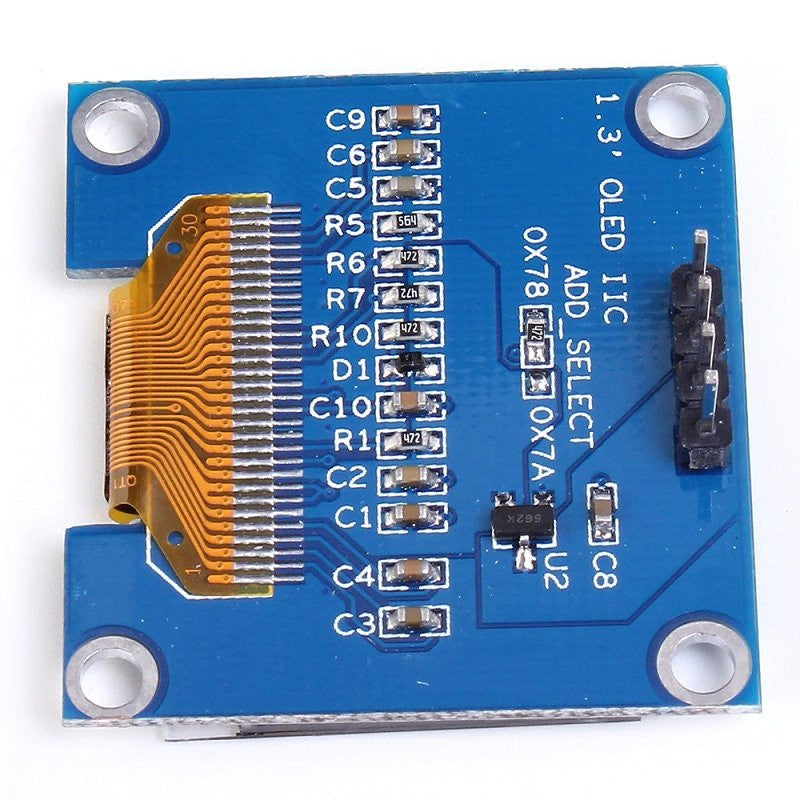

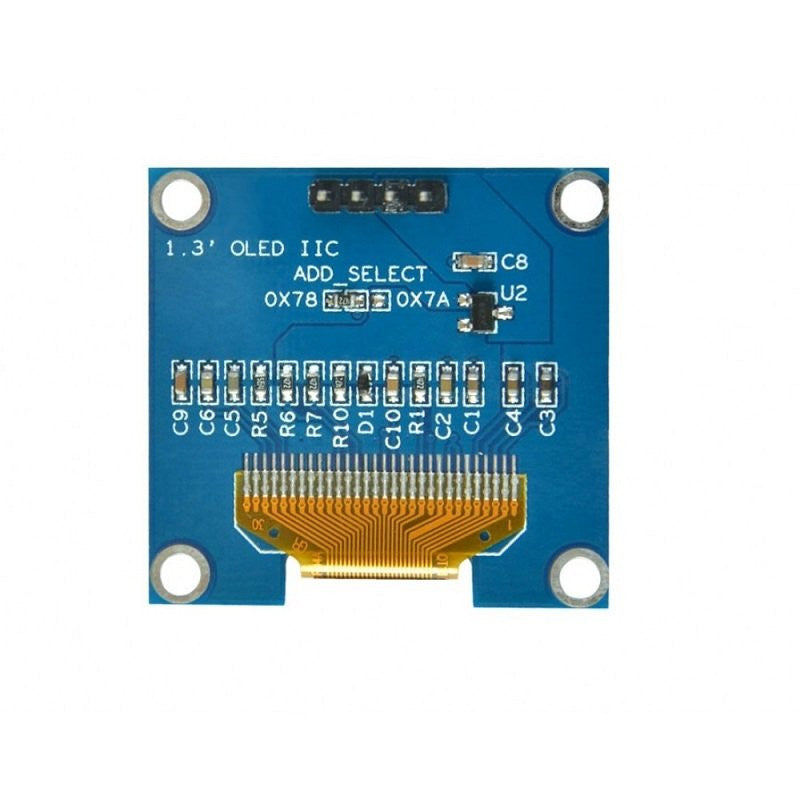

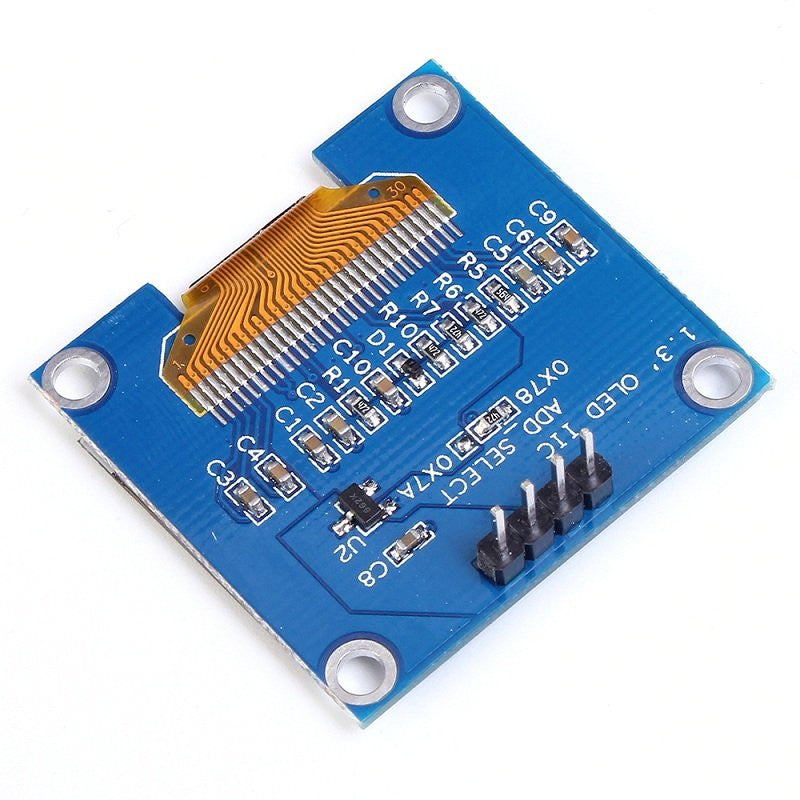

This 1.3-inch I2C OLED Display is a monochrome 128x64 dot matrix display module with an I2C interface, ideal for applications requiring an ultra-compact display. Compared to LCDs, OLED screens offer several advantages, including higher brightness, self-emission, better contrast ratios, a slim profile, wide viewing angles, a broad temperature range, and lower power consumption. It is compatible with any microcontroller operating at 3.3V to 5V, such as Arduino.
1.GND: Power ground
2.VCC: Power positive
3.SCL: Clock wire
4.SDA: Data wire.

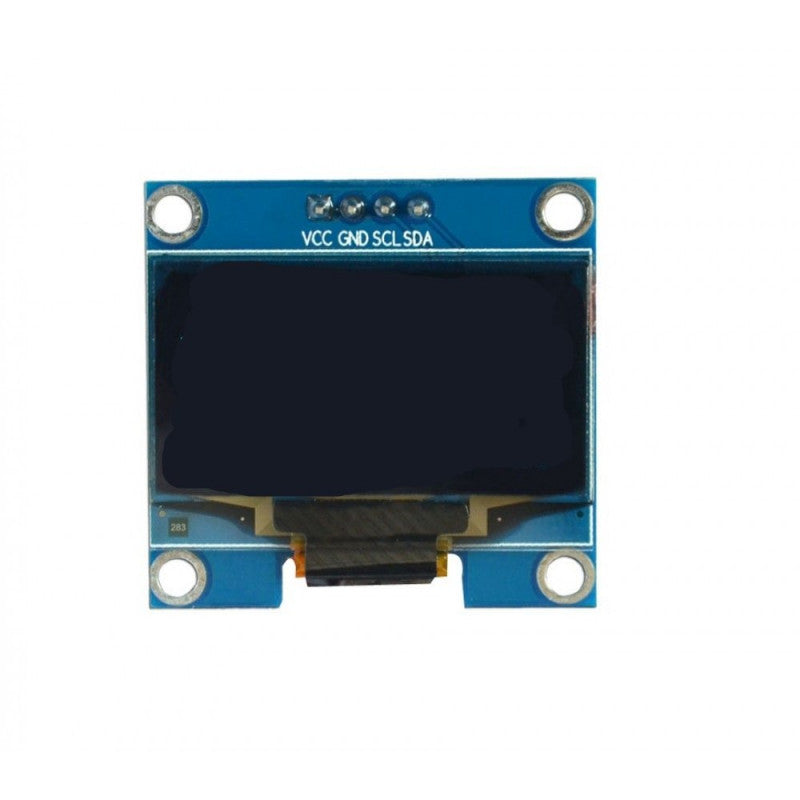

1 x 1.3 Inch I2C IIC 128x64 OLED Display Module 4 Pin - White
| Display Size |
1.3 inch |
| Resolution |
128 x 64 Pixels |
| Controlling Chip |
SSH1106 |
| Display Area |
34.5 x 19mm |
| Driving Voltage |
3.3-5V |
| Operating Temperature |
-40~70 Celsius |
| Interface Type |
IIC |
| Pixel Color |
White |
| Length (mm) |
35.5 |
| Width (mm) |
33.5 |
| Height (mm) |
4 |
| Weight (gm) |
7 |
*Product Images are shown for illustrative purposes only and may differ from actual product.
