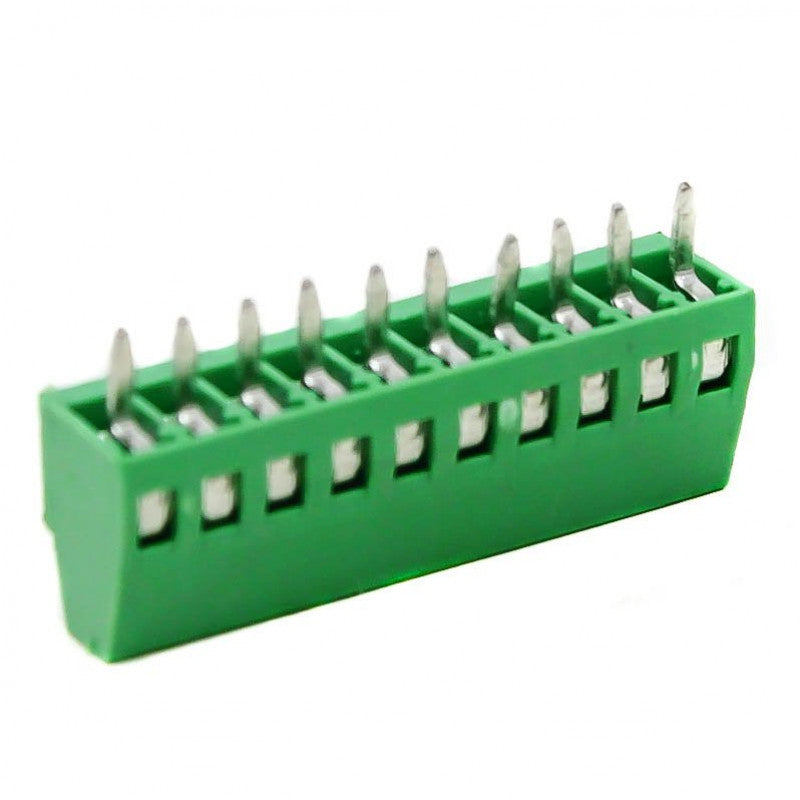

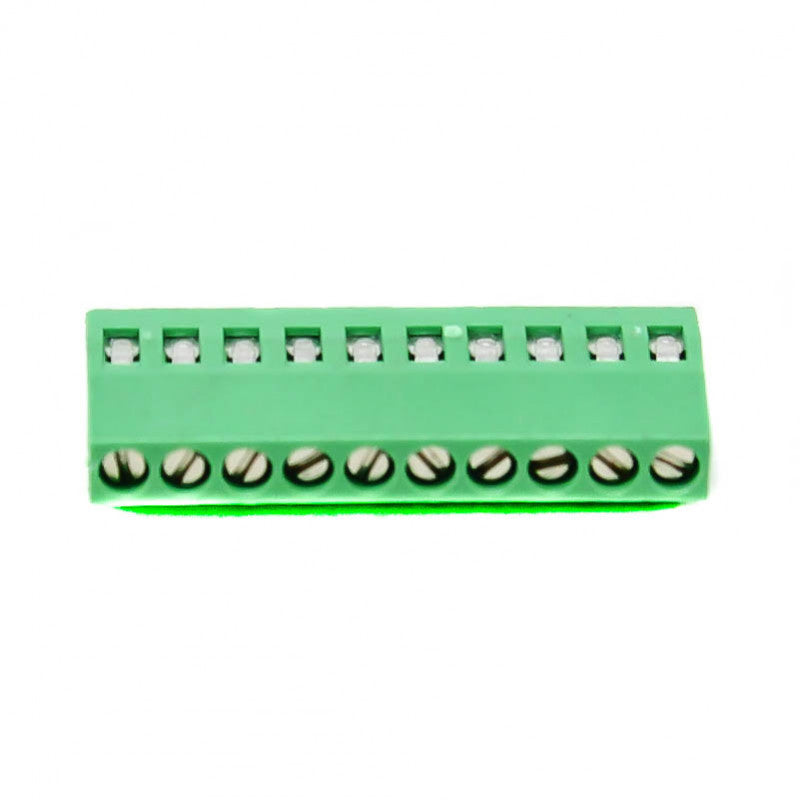

The 10 Pin 2.54 mm Pitch Pluggable Screw Terminal Block is a compact and versatile component used for connecting wires to a PCB. Its small size allows it to fit into tight spaces, making it ideal for connecting two conductors on a PCB where space is limited.
Equipped with screws to secure the wires, this terminal block accommodates wires ranging from 14 to 22 AWG. It is particularly suited for miniature rack systems or telecommunications equipment that require high contact density. Each terminal aligns with a pin spaced 2.54 mm apart, making it compatible with prototyping boards and PCB holes designed for standard 0.1-inch male and female headers, provided there is adequate clearance from nearby components.
Features:-
- Saves space due to the small design
- Screw connection with tension sleeve
- Maximum contact force ensures a low-temperature rise
- Connection in accordance with EN-VDE Standard.
Package Includes:-
1 x10 Pin 2.54mm Pitch Pluggable Screw Terminal Block.
Specifications :-
| Connector |
PCB Terminal Block
|
| Termination |
Screw
|
| No. of Contacts |
10
|
| Allowed Wire Size (AWG) |
22 ~ 18
|
| Voltage(V) |
320
|
| Operating Current (A) |
6
|
| Mounting Type |
Through Hole
|
| Pin Spacing (mm) |
2.54
|
| Material |
Metal and plastic
|
| Length (mm) |
26
|
| Width (mm) |
6
|
| Height (mm) |
12
|
| Weight (gm) |
3
|
|
|
*Product Images are shown for illustrative purposes only and may differ from actual product.
