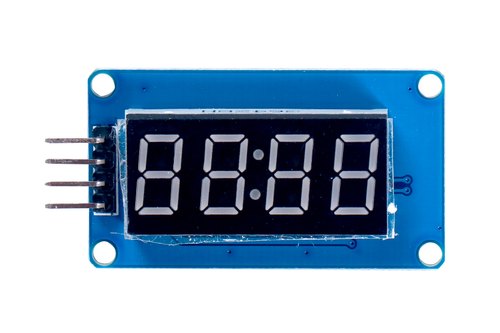

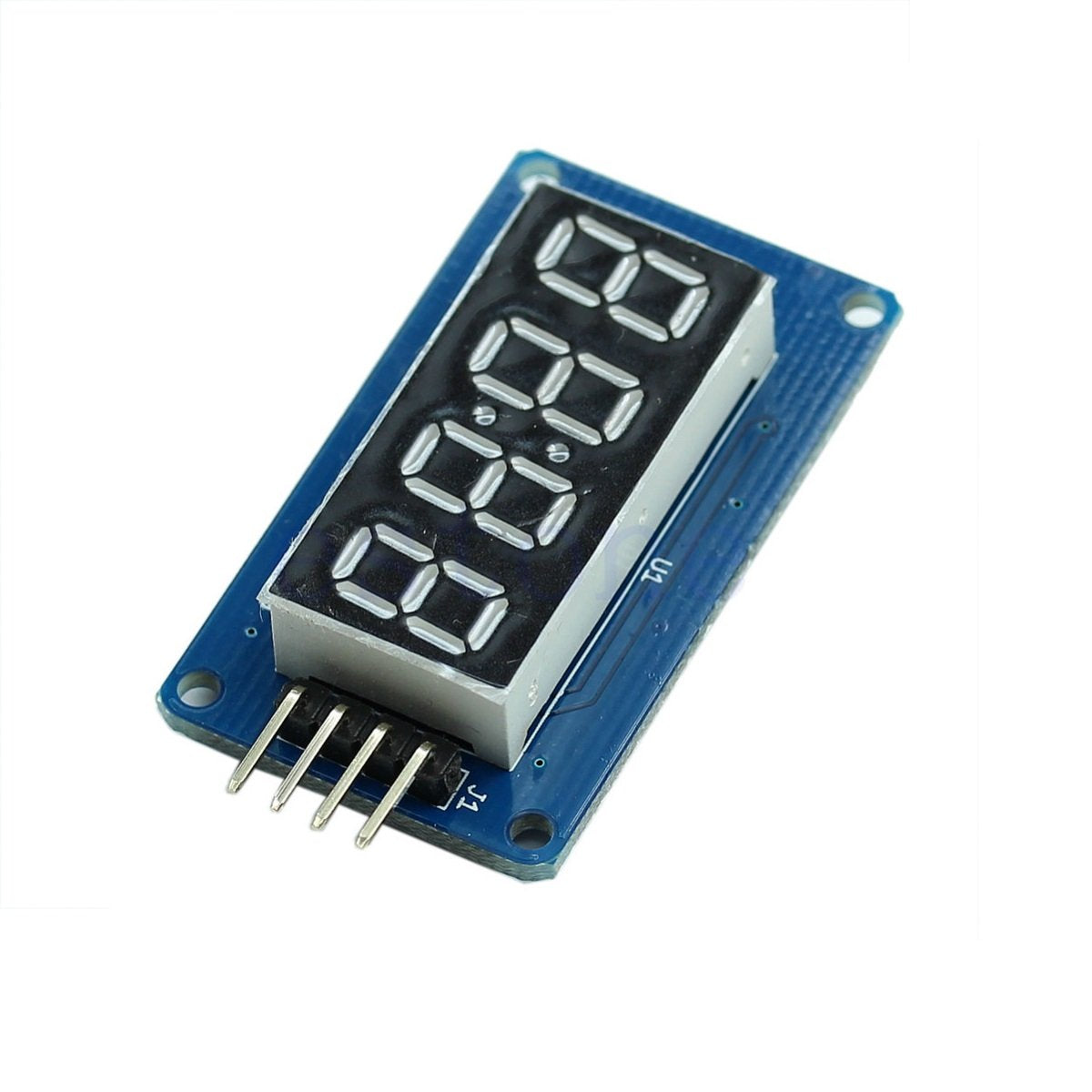

The TM1637 4-Digit 7-Segment LED Display Module with Clock for Arduino is a cost-effective way to display output data from your Arduino projects. While primarily designed to display numbers, it also supports certain characters like A, B, and C.
This module features 4 digits, all controlled by the TM1637 driver chip, and requires just two connections to operate. Thanks to its use of the I2C bus, only two wires are needed for control, freeing up additional pins on your microcontroller for other components.
The module is a 12-pin clock display, using four common anode 0.36-inch 7-segment tubes, driven by the TM1637 chip. With just two signal lines, the MCU can easily control all four digits.
Pinout Description of TM1637 4 Digits 7 Segment Led Display Module with Clock for Arduino :-
LED Display module to Arduino
- GND – GND
- Vcc – 5V
- DIO – D2
- CLK – D3
Features of TM1637 4 Digits 7 Segment Led Display Module with Clock for Arduino:-
- Ease to use.
- Ease of multiplexing.
- Can use as a 4 digit display unit.
- Can use as a clock display.
- DIY clock project.
- 4 digit display unit.
- Electrical/Electronic projects.
- The counter project using 7 segment display.
- 4 M2 screws positioning holes for easy installation
Package Includes:-
- 1 x TM1637 4 Digits 7 Segment Led Display Module with Clock for Arduino.
* Product Images are shown for illustrative purposes only and may differ from actual product.
