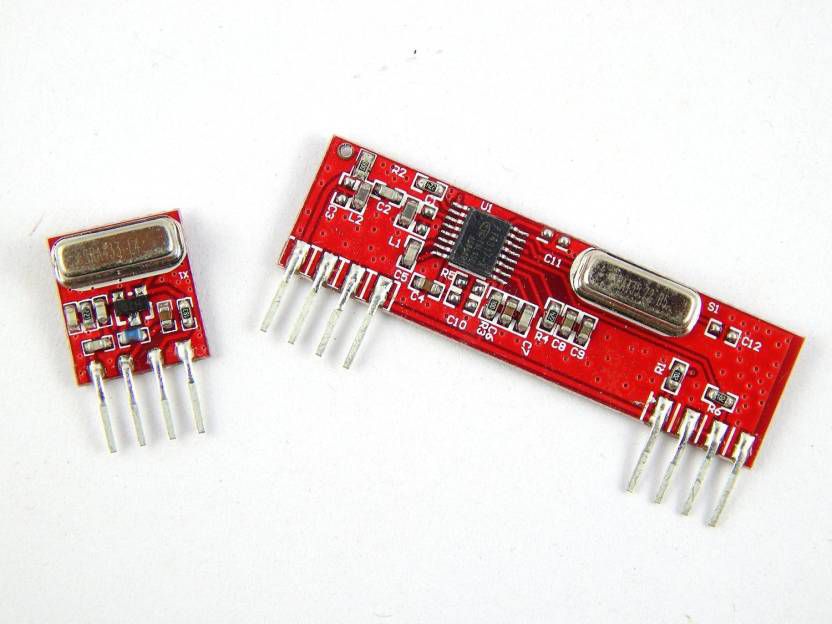

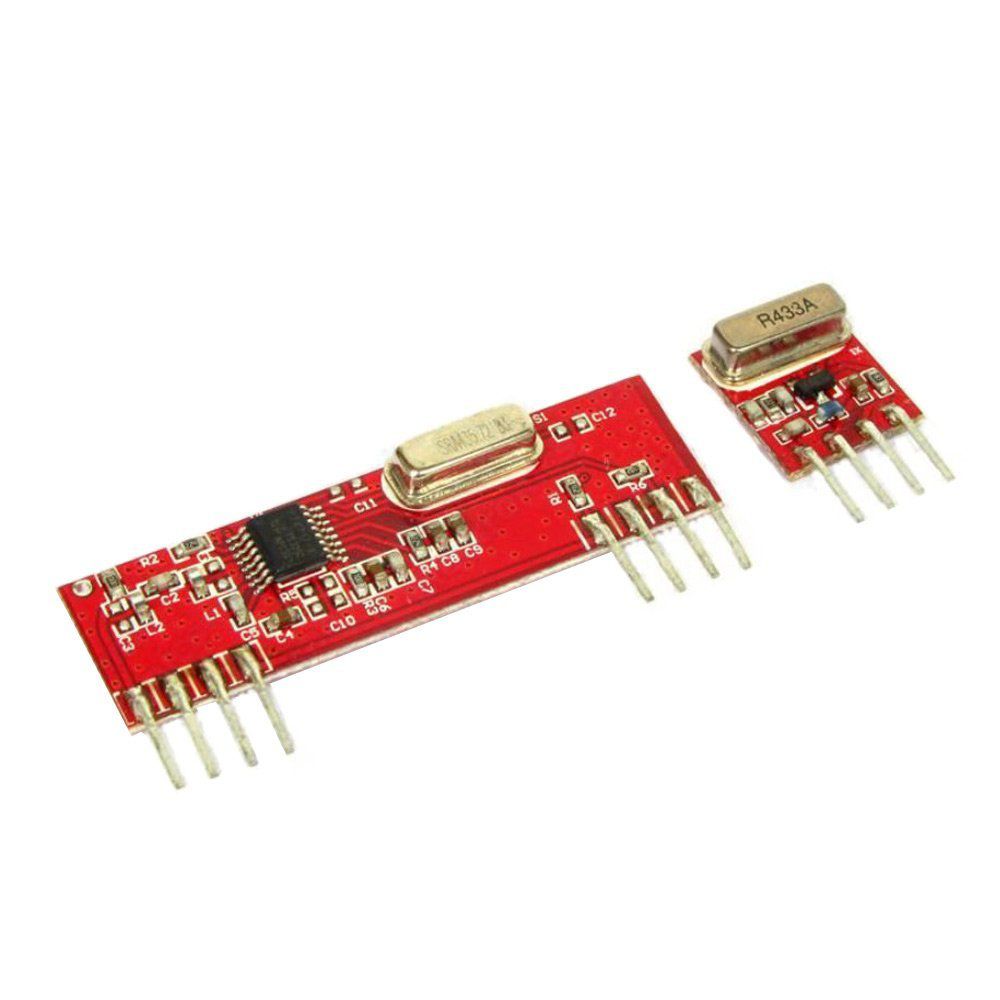

This hybrid RF Transceiver Module offers a complete solution for RF transmission and reception, capable of transmitting data up to 3kHz from any standard CMOS/TTL source.
The transmitter module is easy to operate and features low power consumption (typically 11mA). It can transmit data directly from a microcontroller or encoding device, reducing the number of components and minimizing hardware costs.

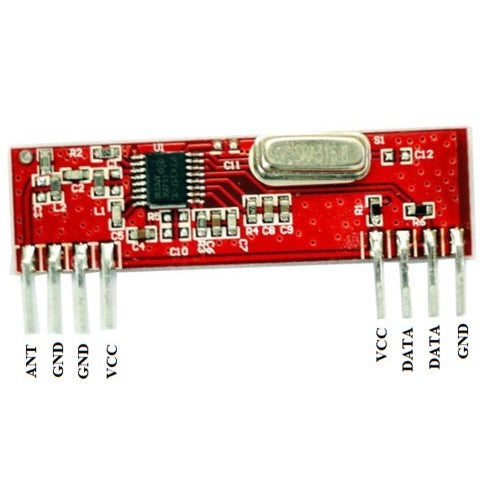

The RX-ASK is a hybrid ASK receiver module, providing an affordable solution for 433 MHz communication. The TX-ASK is a hybrid ASK transmitter module, designed with a SAW resonator for a cost-effective, compact, and easy-to-use design.
Specifications of 433MHz RF Transmitter Receiver Wireless Module:-
- Range in open space(Standard Conditions) : 100 Meters
- RX Receiver Frequency : 433 MHz
- RX Typical Sensitivity : 105 Dbm
- RX Supply Current : 3.5 mA
- RX IF Frequency : 1MHz
- RX Operating Voltage : 5V
- TX Frequency Range : 433.92 MHz
- TX Supply Voltage : 3V ~ 6V
- TX Out Put Power : 4 ~ 12 Dbm
Features of 433MHz RF Transmitter Receiver Wireless Module:-
- Low Power Consumption
- Easy For RF based Application
- Complete Radio Transmitter
- Transmit Range Up To 50m
- CMOS / TTL Input
- No Adjustable Components
- Very Stable Operating Frequency
- Low Current Consumption (Typ 11mA)
- Wide Operating Voltage
- ASK Modulation
Applications 433MHz RF Transmitter Receiver Wireless Module:-
- Remote Controls
- Automation System
- Wireless Security System
- Sensor Reporting
- Car Security System
-
Remote Keyless Entry
