Description:-

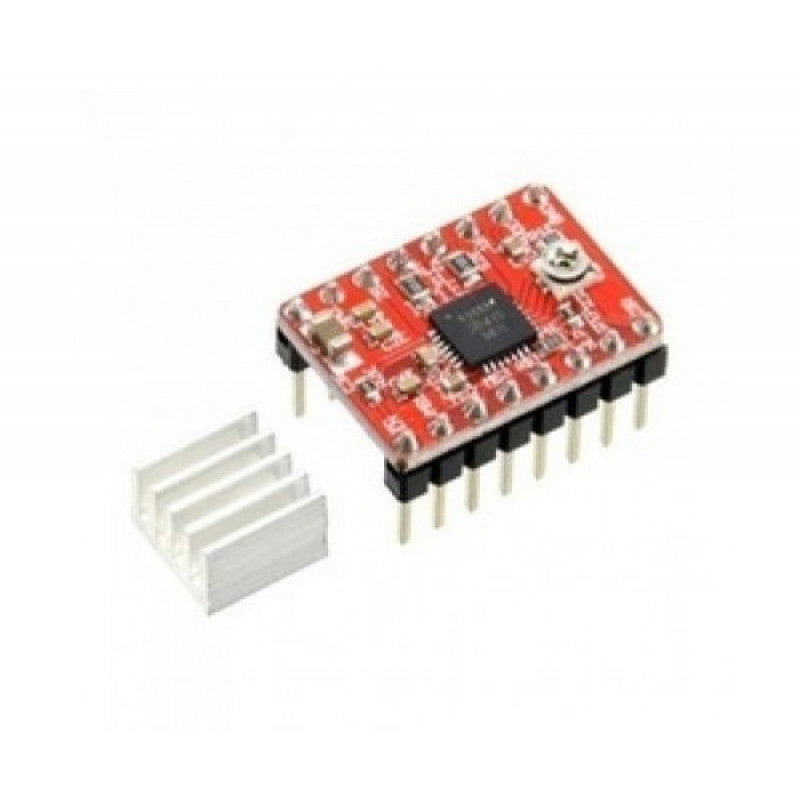

The A4988 Module is a compact and cost-effective breakout board featuring Allegro’s A4988 stepper motor driver. It offers multiple benefits such as adjustable current limiting, over-temperature and over-current protection, and supports five different step resolutions. With an input voltage range of 8V to 35V, it can supply up to 1A per phase without a heatsink.
The A4988 is a complete microstepping driver with an integrated translator, allowing for simple and efficient stepper motor control. It supports full, half, quarter, eighth, and sixteenth step modes, and can drive bipolar stepper motors with up to ±2A output capacity.
A key feature of the A4988 is its built-in translator, which enables microstepping with minimal complexity—each pulse on the STEP pin advances the motor by one microstep. This eliminates the need for phase sequence tables, high-frequency control, or complicated programming interfaces. It’s a perfect solution for systems with limited processing capabilities.
The A4988 also includes a fixed off-time current regulator, which automatically selects between Slow and Mixed decay modes during stepping operation. In Mixed decay, the current initially undergoes fast decay, followed by slow decay—helping to minimize audible motor noise, improve step precision, and reduce overall power consumption.
Features:-
- Simple step and direction control interface
- Five different step resolutions: full-step, half-step, quarter-step, eighth-step, and sixteenth-step
- Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates
- Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
- Over-temperature thermal shutdown, under-voltage lockout, and crossover-current protection
- Short-to-ground and shorted-load protection
- 4-layer, 2 oz copper PCB for improved heat dissipation
- Exposed solderable ground pad below the driver IC on the bottom of the PCB
Specifications:-
- Minimum operating voltage: 8V
- Maximum operating voltage: 35V
- Continuous current per phase: 1 Amp
- Maximum current per phase: 2 Amp
- Minimum logic voltage: 3V
- Maximum logic voltage: 5.5V
- Microstep resolutions: Full, 1/2, 1/4, 1/8, and 1/16
- Reverse voltage protection?: No
Datasheet:-
