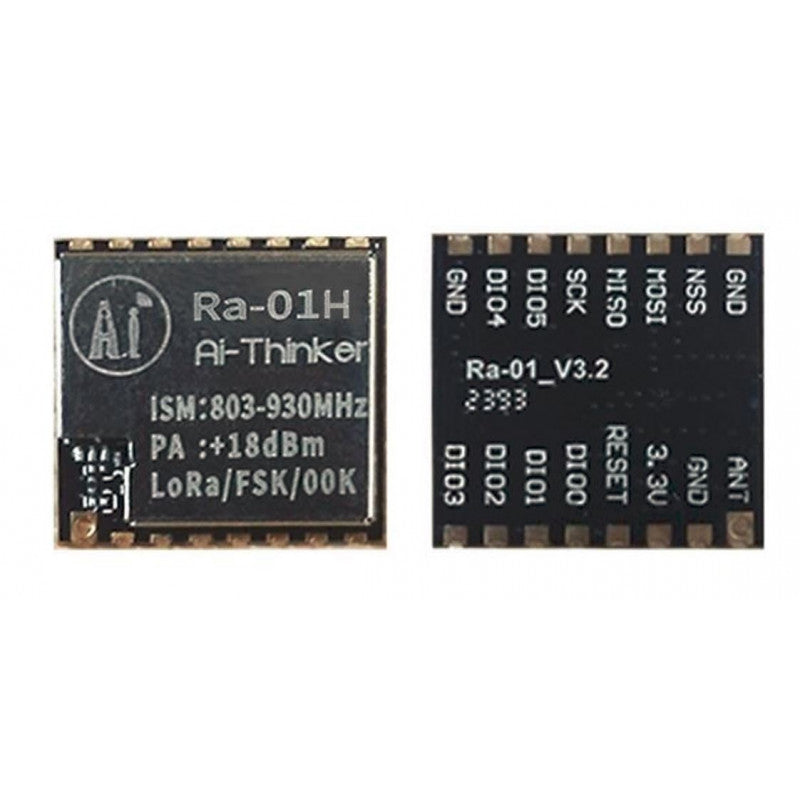

Ai-Thinker LoRa Series Module (Ra-01H)

The Ai-Thinker LoRa Series Module (Ra-01H) is designed and developed by Ai-Thinker. This module is intended for long-distance spread spectrum communication. It uses the SX1276 RF chip (see Figure 1), which is widely used in LoRa remote modems for ultra-long-distance communication.

The SX1276 supports strong anti-interference capabilities and minimizes current consumption. With the help of SEMTECH's patented LoRa technology, the SX1276 achieves a high sensitivity of -148 dBm and an output power of up to +20 dBm, enabling long-range transmission and high reliability.

Compared to traditional modulation techniques, LoRa modulation has clear advantages in terms of anti-blocking and signal selection. It addresses the typical challenges of balancing distance, anti-interference, and power consumption in wireless system design.

Applications include: automatic meter reading, home/building automation, security systems, and remote sensing.

Features:-

  • LoRa modem
  • Supports FSK, GFSK, MSK, GMSK, LoRa, and OOK modes
  • Frequency support: 803–930 MHz
  • Operating voltage: 3.3V; Maximum output power: 19 dBm
  • Maximum output current: 105 mA
  • Low power consumption:
    • Receiving current: 12.15 mA
    • Standby current: 1.6 mA
  • High sensitivity: as low as -140 dBm
  • Compact size with double-row stamp hole patch package
  • SPI interface with half-duplex communication and CRC; supports packets up to 256 bytes

Specifications:-

Parameter Value
Module Ra-01H
Package SMD-16
Size 17 × 16 × 3.2 mm (±0.2 mm)
Antenna Compatible half-hole weld tray (antenna soldering required)
Spectrum Range 803–930 MHz
Operating Temperature -40°C to 85°C
Storage Temperature -40°C to 125°C, < 90% RH
Power Supply 2.7–3.6V (typical: 3.3V), current > 200 mA
Interface SPI
Programmable Bit Rate Up to 300 kbps

Package Includes:-

  • 1 × Ai-Thinker LoRa Series Ra-01H Spread Spectrum Wireless Module
