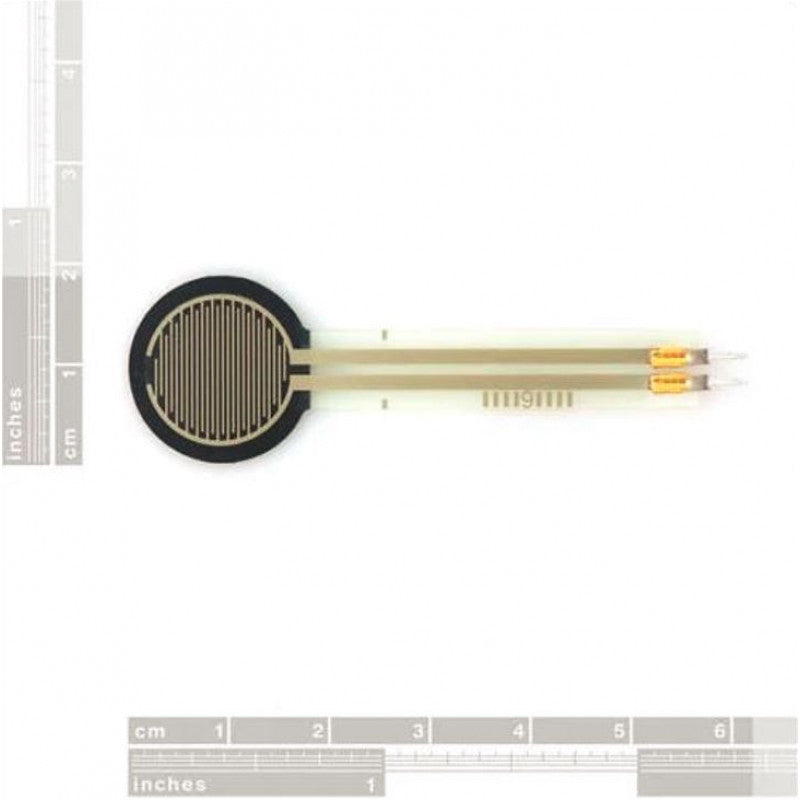

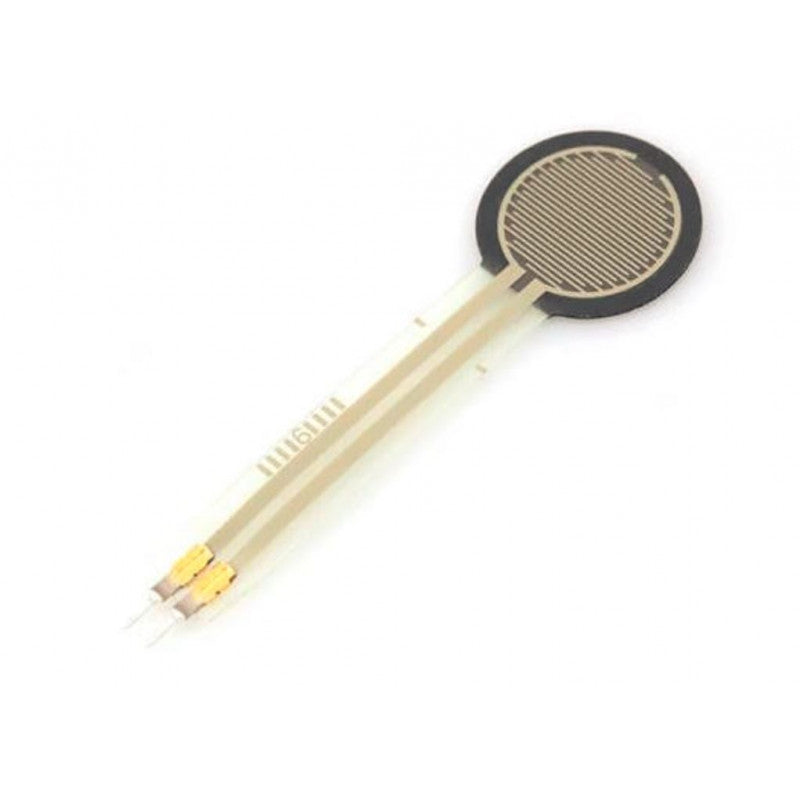

Get a high-quality 0.5-inch diameter force pressure sensor at an affordable price. This force-sensitive resistor (FSR) features a round sensing area with a diameter of 0.5 inches. Its resistance changes based on the pressure applied to the sensing area.
The resistance decreases as the applied force increases. When no pressure is applied, the resistance of the FSR is greater than 1MΩ. This sensor can detect forces ranging from 100g to 10kg.
The sensor has two 0.1-inch pitch pins that are breadboard-friendly, and it includes a peel-and-stick rubber backing for easy mounting. To measure the applied force, connect the FSR to a resistor to form a voltage divider and read the voltage at the junction.
While these sensors are straightforward to set up and effective for detecting pressure, they are not highly accurate. They are ideal for detecting whether something is being squeezed but may not be suitable for precise measurements like scales.
The sensor is compatible with microcontrollers, Arduino boards, Raspberry Pi, and other devices using an Analog to Digital Converter (ADC). Purchase this pressure sensor now for the best deal at an affordable price.
Features:-
- Easily customizable to a wide range of sizes.
- Cost-effective.
- Ultra-thin: 0.45 mm.
- Robust: up to 10 million actuations.
- Simple and easy to Integrate.
Applications:-
- Testing and Measurement Equipment.
- Embedded Electronics.
- OEM Development Kit.
- Consumer Electronics.
- Multimeter.
Specifications:-
- Shape : Circular
- Sensing Area diameter : 14mm
- Min Pressure : 100gm
- Max Pressure : 10Kg
- Diameter : 18mm
- Length : 60mm
- Weight : 2gm
Package Includes:-
1 x Force Sensor - 0.5" Force Sensitive Resistor
* Product Images are shown for illustrative purposes only and may differ from actual product.
