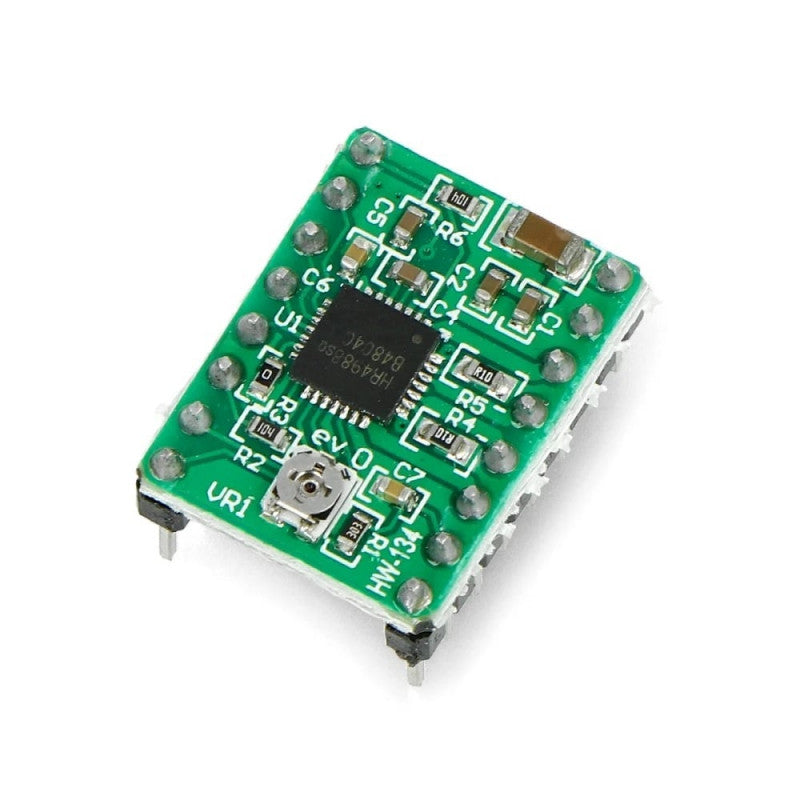

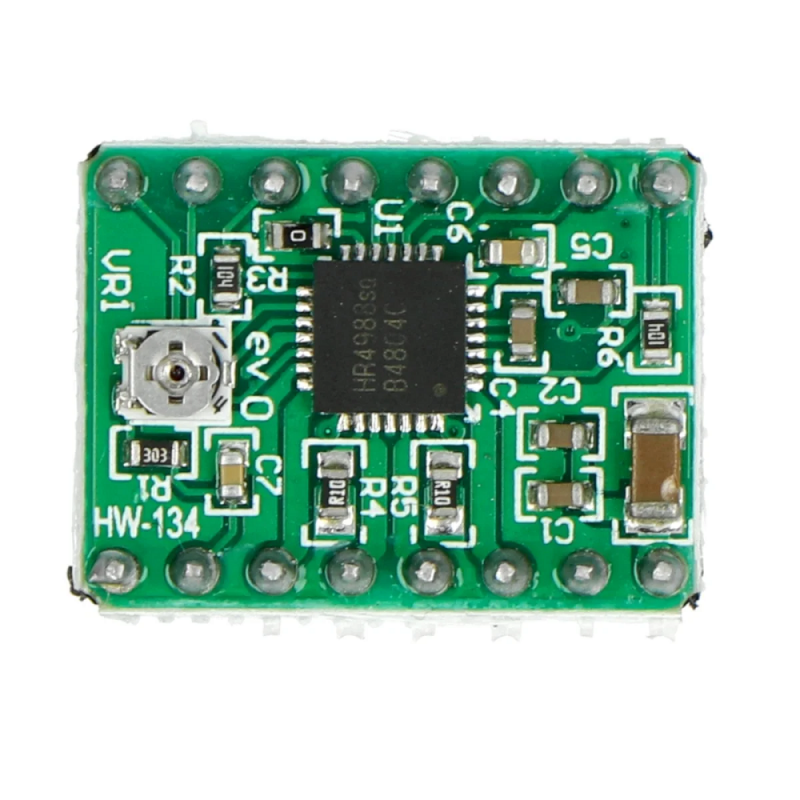

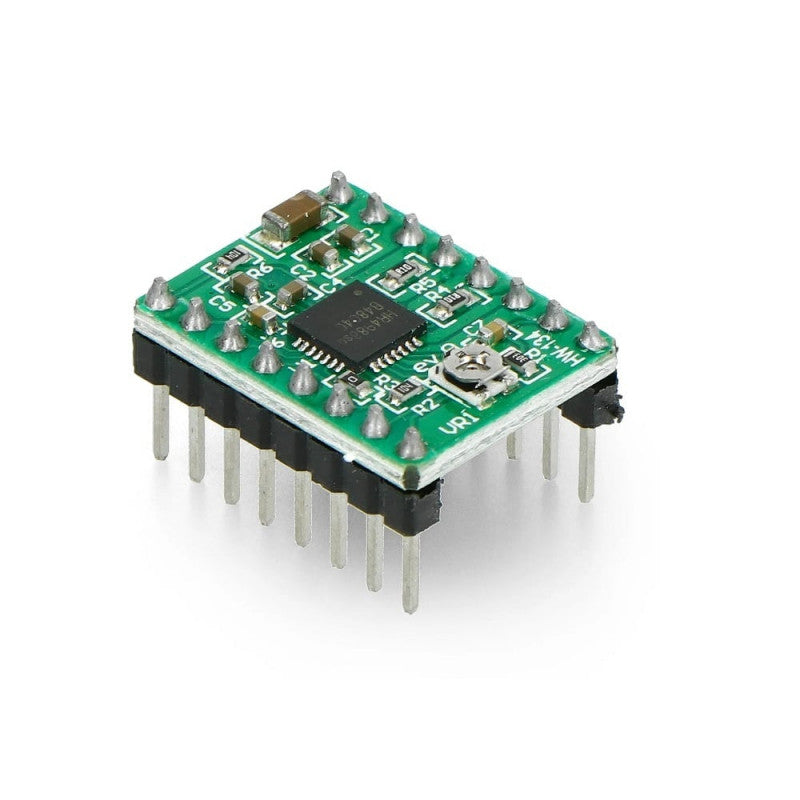

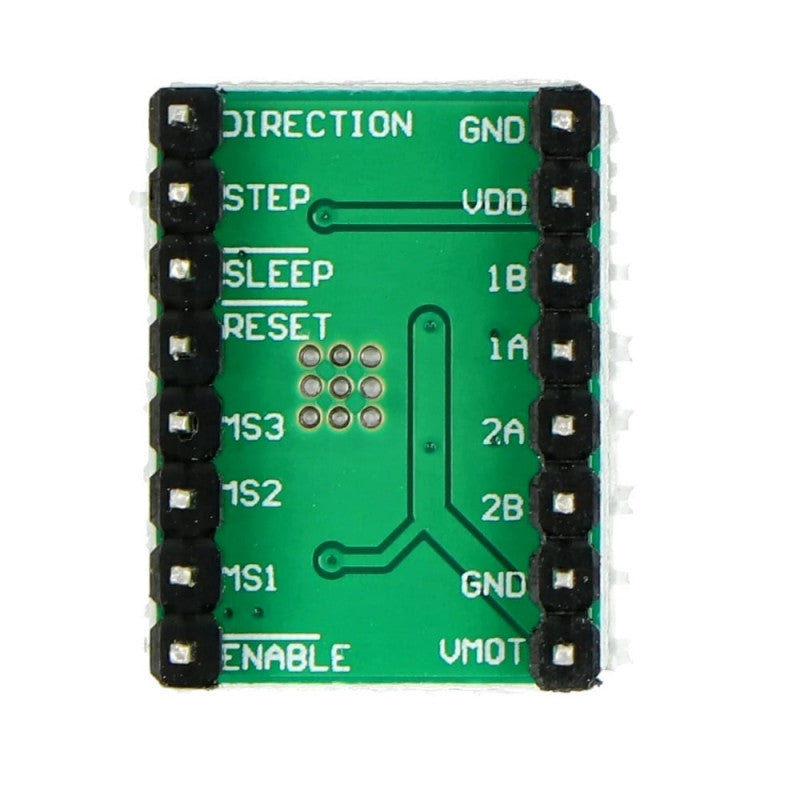

The Green A4988 Stepper Motor Driver - Normal Quality is a comprehensive micro-stepping motor driver with an integrated converter, making it user-friendly. It operates within a voltage range of 8V to 35V and can deliver around 1A per phase without the need for a heat sink or forced airflow (it can handle up to 2A per coil with adequate cooling).
The A4988 driver features a fixed off-time current regulator, which can operate in either slow or mixed decay mode. This converter is crucial for the straightforward implementation of the A4988.
There are no complicated phase sequence tables or high-frequency control interface programming required. The A4988 interface is well-suited for complex microprocessors that may be unavailable or overloaded. During stepping operations, the A4988 automatically chooses the appropriate current decay mode (slow or mixed) through its chopping control. The mixed decay current control scheme helps reduce audible motor noise, enhance step accuracy, and decrease power consumption.
Additionally, it includes internal synchronous rectification control circuitry to improve pulse width modulation (PWM) power efficiency during operation.
Internal circuit protection includes thermal shutdown with hysteresis, under-voltage lockout (UVLO) and crossover current protection. Dont need special power-up sequencing. A4988 uses a surface mount QFN package (ES), the size is 5 mm 5 mm, nominal overall package height is 0.90 mm, with an exposed thermal pad to enhance the heat dissipation function.
Attention! The connection and disconnection of the motor, while the driver is turned on, can damage the system.
Note:Thedifference between product A4988 driver Stepper Motor Driver- Standard Quality and A4988 driver Stepper Motor Driver- Good Quality is, The good quality A4988 has more number of PCB layersand it features the connecting pins which are of gold plated as compared to other.
Features :-
- Automatic current decay mode detection/choice.
- Mixed with slow current decay mode.
- The low power dissipation of synchronous rectifier.
- Internal UVLO(ultra voltage lockout).
- Crossover current protection.
- Thermal shutdown circuit.
- Ground fault protection.
- Loading and short circuit protection.
- The optional five-step mode: full, 1/2, 1/4, 1/8 and 1/16.
Package Includes :-
1 x Green A4988 driver Stepper Motor Driver- Standard Quality

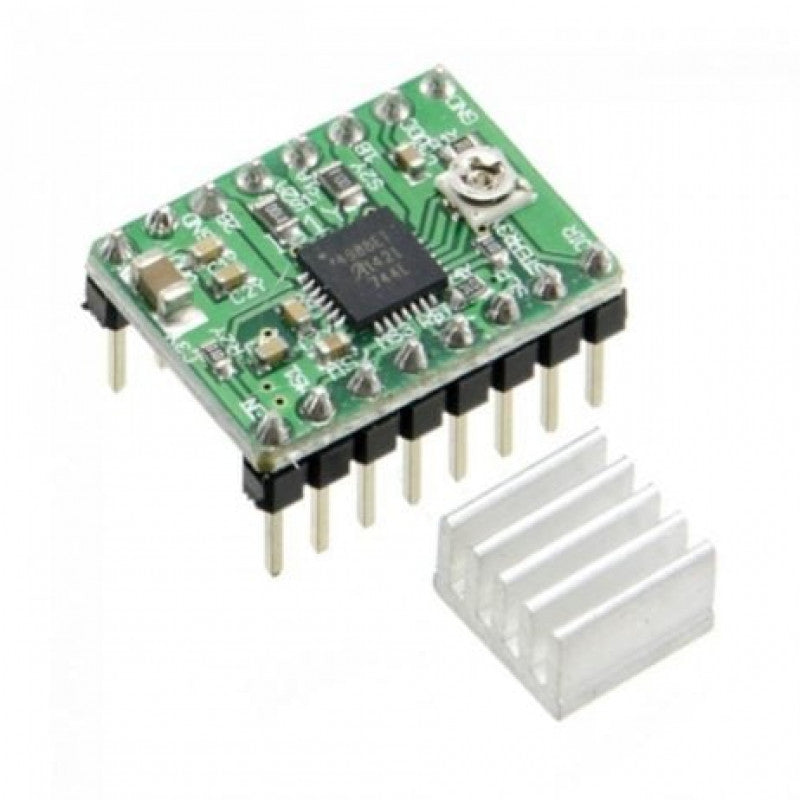

1 x Heat sink.
Attachments :-
Download
* Product Images are shown for illustrative purposes only and may differ from actual product.
