Description

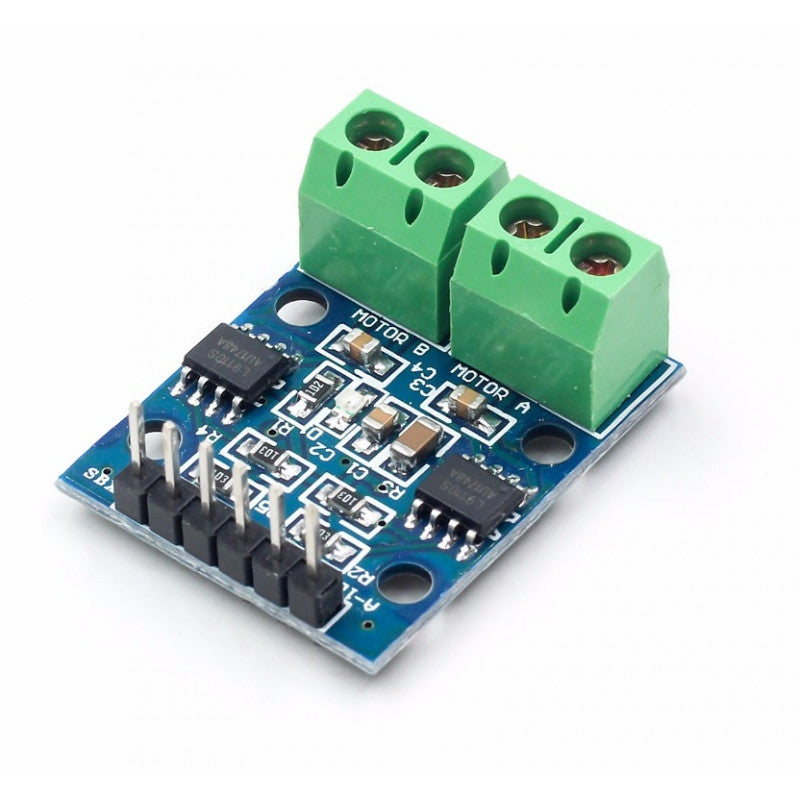

The L9110S dual-channel H-bridge motor driver module is a compact board designed for driving small robots. It is built around the L9110 Motor Driver IC and features two independent motor driver chips, each capable of handling up to 800mA of continuous current. The module operates at a voltage range of 2.5V to 12V, making it compatible with both 3.3V and 5V microcontrollers. Female header pins are used to connect the module to a microcontroller, while the motors are connected via two sets of screw terminals.

Speed control of the motors is achieved using a PWM (Pulse Width Modulation) signal, and a digital output is used to change the motor's direction. Additionally, this module can drive a single four-line, two-phase stepper motor. Four mounting holes make it easy to attach this board to your robot or other projects.

Module Interfaces:-

6P black bent pin description:

  • 1 VCC external voltage 2.5V-12V
  • 2 GND External GND
  • 3 AIA external microcontroller IO port
  • 4 AIB external microcontroller IO port
  • 5 BIA external microcontroller IO port
  • 6 BIB external microcontroller IO port

4P green terminal:

  • 1 OA1 OB1 contact DC 2-pin, non-directional
  • 2 OA2 OB2 contact DC 2-pin, non-directional

Use:

  • ON VCC, GND module power indicator light
  • AIA input high, AIB input low, [OA1 OB1] motor is transferred;
  • AIA input low, AIB input high, [OA1 OB1] motor reversal;
  • BIA input high, BIB input low, [OA2 OB2] motor is transferred;
  • BIA input low, BIB input high,] [OA2 OB2] motor reversal.

Specifications & Features of L9110S Dual Channel H-Bridge Motor Driver Module:

  • On-board two L9110 motor control chip
  • Module can be driven by two dc motors at the same time or one phase 4 line 2 type stepping motor
  • Input voltage: 2.5 to 12 Volt DC
  • Each channel has a continuous output current 800 ma

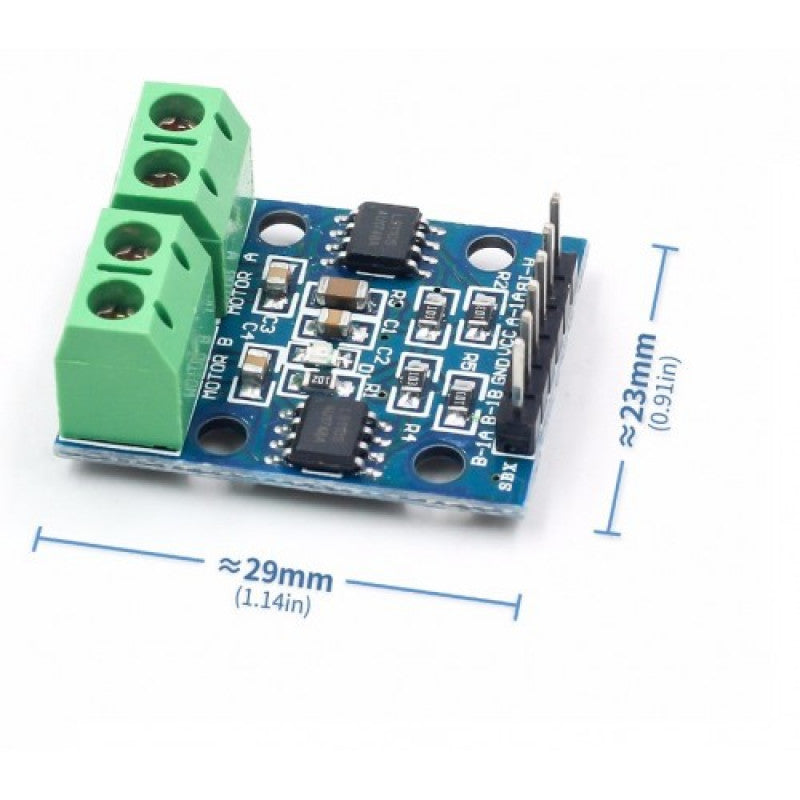

  • PCB Size: 29.2 mm x 23 mm
  • The maximum operating current of 0.8A
  • Ultra-small size, suitable for assembly
  • Is provided with a fixed mounting hole
