If you want to incorporate visual output into your Arduino projects, a display is essential. For moderate data presentation, the LCD2004 Parallel LCD Display is an excellent choice.
The LCD2004 Parallel LCD Display offers a straightforward and budget-friendly way to integrate a 20x4 black-on-RGB liquid crystal display into your project. It features a clear, high-contrast display with black text on a yellow background.
This yellow backlight LCD display is ideal for Arduino-based projects. The LCD2004 is straightforward to interface with Arduino and other microcontrollers.
The display can show either simple text or numerical values from sensors, such as temperature or pressure readings, or even the number of cycles executed by the Arduino.
Keep in mind that connecting this display will use about eight pins on your Arduino. Fortunately, an I2C adapter is available that can be soldered directly onto the display's pins, allowing you to connect only the I2C pins, which simplifies coding and uses a well-supported library.
Features :-
- 20 characters wide, 4 rows
- Black text on the yellow background
- The module can easily interface with an MCU
- The module is a low-power consumption character LCD Module with a built-in controller
- Single LED backlight included can be dimmed easily with a resistor or PWM.
- Can be fully controlled with only 6 digital lines! (Any analog/digital pins can be used)
Package Includes :-

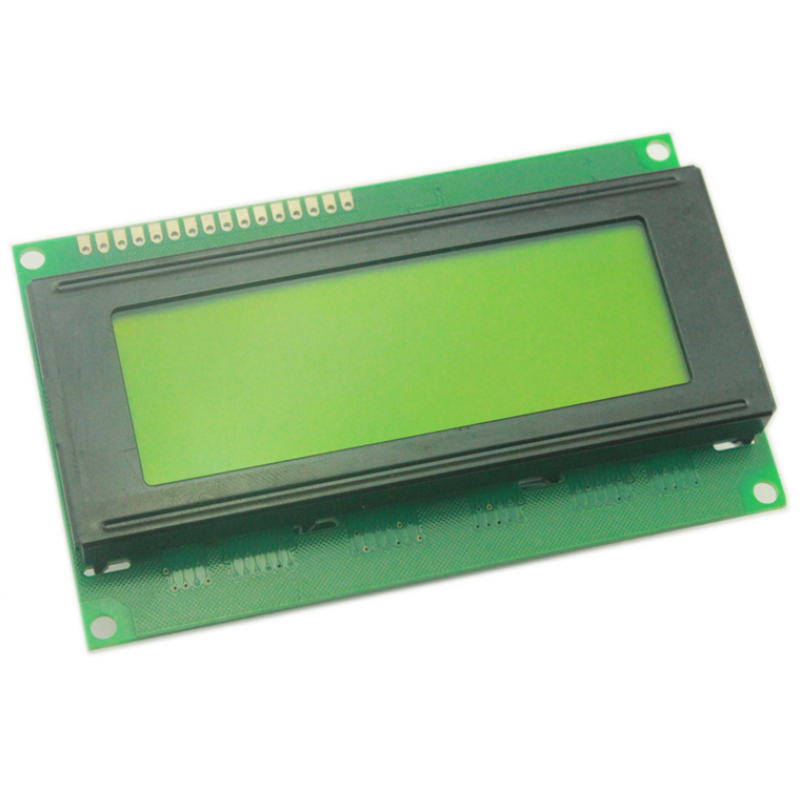

1 x LCD2004 Parallel LCD Display Yellow Backlight
Specifications :-
| Model |
LCD2004
|
| Characters |
20
|
| Character Color |
Black
|
| Backlight |
Yellow
|
| Input Voltage (V) |
5
|
| Length (mm) |
60
|
| Width (mm) |
98
|
| Height (mm) |
12
|
| Weight (gm) |
70
|
|
|
* Product Images are shown for illustrative purposes only and may differ from actual product.
