ROBODIUM Motor Master Kit

SKU: R1133
Availability: Out Of Stock
Rs. 1,180.00 (Inclusive of 18% GST) No Hidden Charges
🚚 Order Above ₹999 & Get Free Shipping Anywhere in India

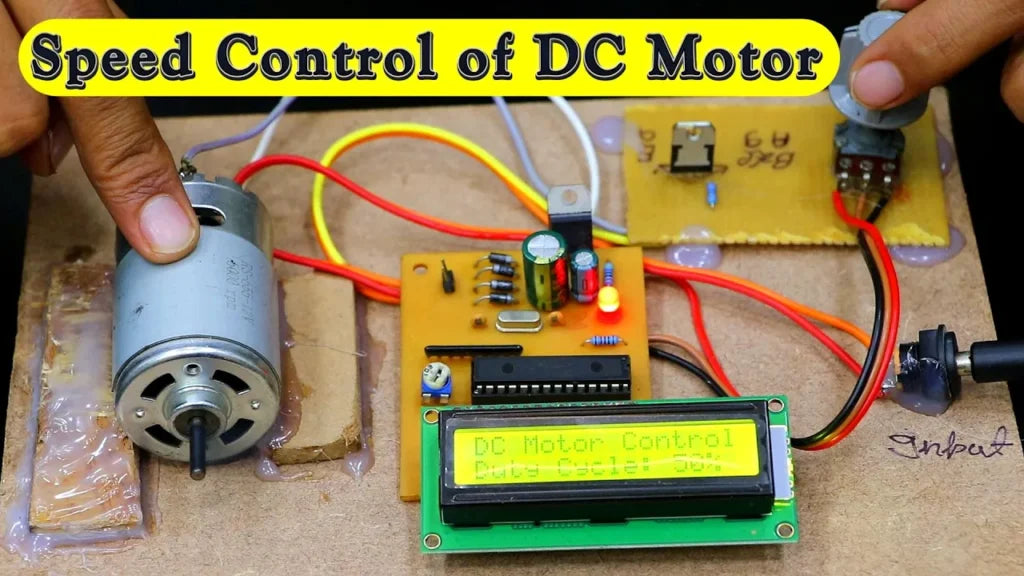

The ROBODIUM Motor Master Kit is a complete hands-on project designed to teach DC motor speed control using PWM (Pulse Width Modulation).
Using the TIP31C power transistor, Arduino UNO, and a 100K potentiometer, this kit allows users to precisely vary motor speed while monitoring values on a 16×2 LCD Display.

It is perfect for students, DIY makers, robotics learners, and engineering beginners who want to understand:

PWM motor control
Transistor-based motor driving
LCD interfacing
Safe power management
Practical electronics wiring

Ideal for robotics projects, mini engineering models, science exhibitions, and motor control demonstrations.

Specifications

Arduino UNO R3

  • ATmega328P microcontroller

  • 14 digital I/O pins (6 PWM)

  • USB programmable

  • Suitable for analog input from potentiometer

  • Supports external 5V / 9V power

DC Motor (130/Johnson Motor)

  • Operating Voltage: 3V–12V

  • RPM depends on model (High torque/standard)

  • Suitable for load and speed experiments

TIP31C NPN Power Transistor

  • Max Collector Current: 3A

  • Max Voltage: 40V

  • Drives motor using PWM signals

  • High efficiency for speed control applications

100K Potentiometer + Knob

  • Provides smooth variable input to Arduino

  • Used for speed adjustment

  • Perfect for analog analog reading experiments

16×2 LCD Display

  • I2C or parallel interface

  • Displays motor speed, PWM values, and status

  • Operating Voltage: 5V

Power & Protection Components

  • 5V Regulator / DC-DC Buck Converter

  • Ensures stable power for Arduino

  • Flyback Diode (1N4007 / 1N4148)

  • Protects transistor from motor back-EMF

  • Separate power lines for motor & Arduino

  • Prevents voltage fluctuations

Breadboard & Jumper Wires

  • Easy prototyping

  • No soldering required

Enclosure / Acrylic Mount

  • Protects components

  • Offers clean, professional project finish

Package Includes

Arduino UNO Board × 1
• TIP31C NPN Transistor × 1
• 130 Micro DC Toy Motor × 1
• Johnson 12V DC Geared Motor (60 RPM) × 1
• 100K Potentiometer + Knob × 1
• 5V Adapter / External Power Supply × 1
• 16×2 LCD Display × 1
• Breadboard (Solderless) × 1
• Jumper Wire Set × 1
• 1N4007 Diode (Flyback Diode) × 1
• 10K ohm Variable Resistor (Trimpot/Preset) × 1
