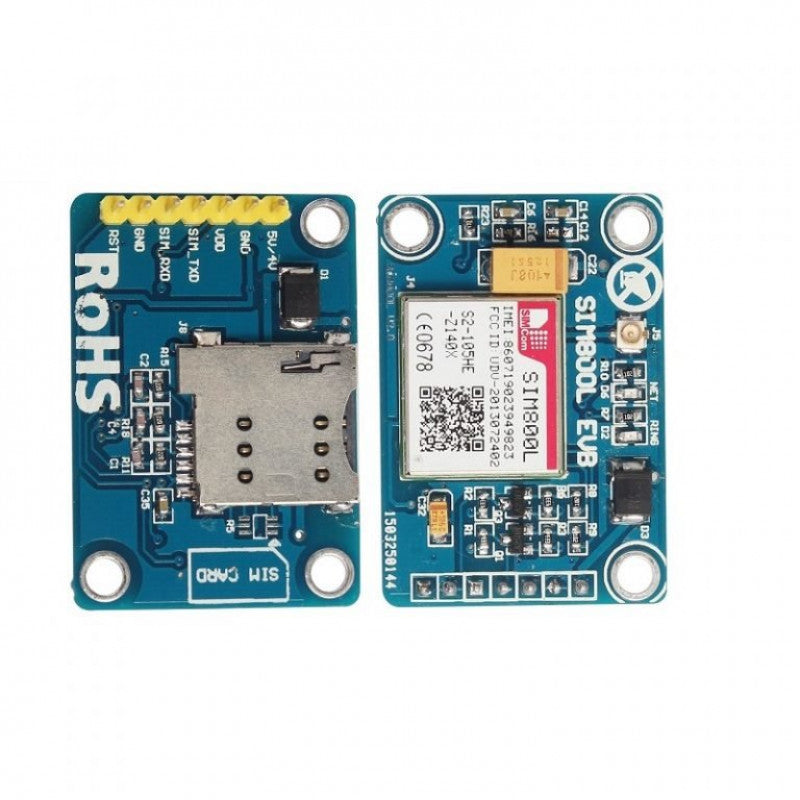

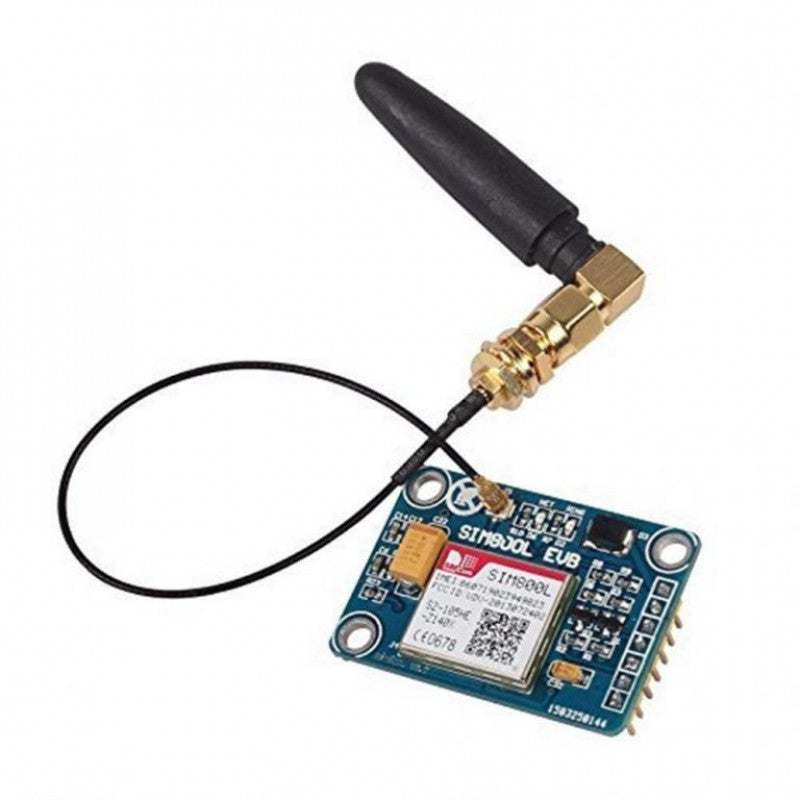

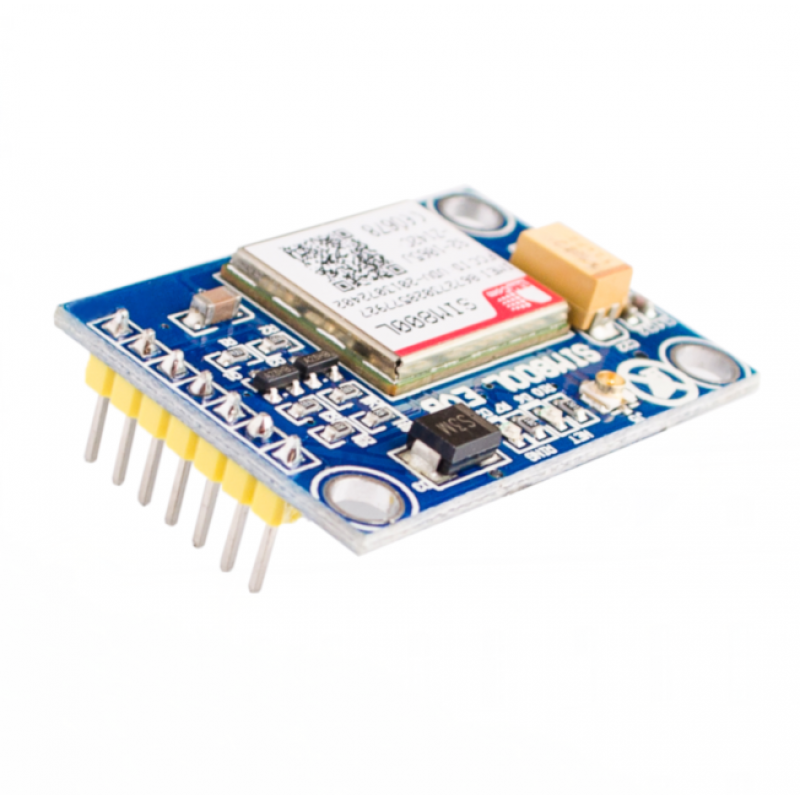

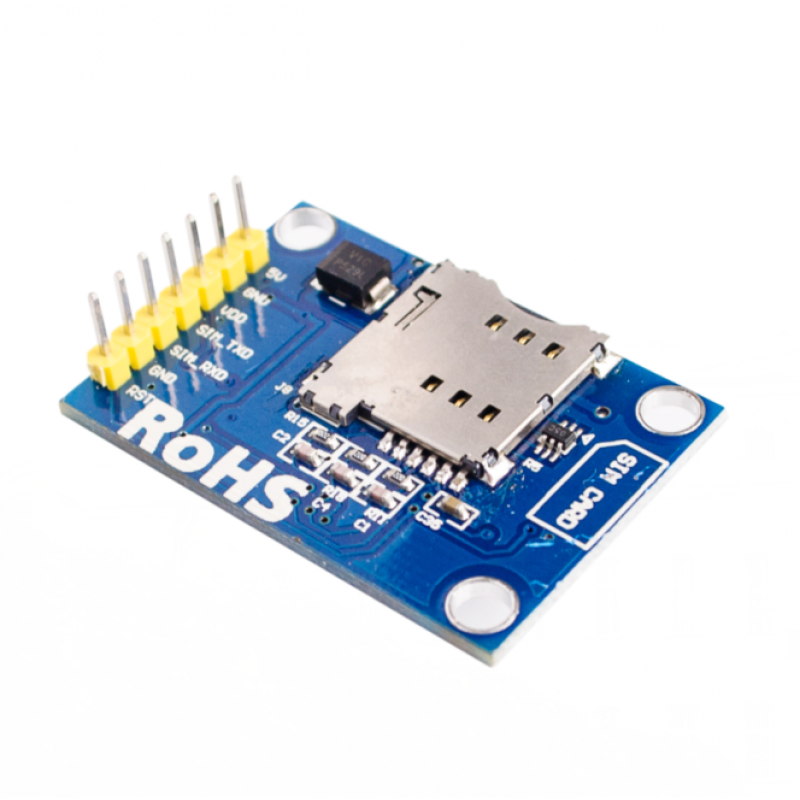

SIM800L V2.0 5V Wireless GSM GPRS MODULE Quad-Band with Antenna

SKU: R0121
Availability: In stock
Rs. 516.00 (Inclusive of 18% GST) No Hidden Charges
🚚 Order Above ₹999 & Get Free Shipping Anywhere in India

The SIM800L V2.0 5V Wireless GSM GPRS Module operates on a 5V power supply and features a USB to TTL serial port for computer debugging. It provides an output current of 800 mA and has a TTL serial interface that is compatible with both 3.3V and 5V microcontrollers, allowing for direct connection to a microcontroller upon purchase.

The module includes an IPX antenna interface, enabling you to easily switch between a PCB glue stick antenna and suction cup antenna. The SIM800L supports quad-band communications, making it suitable for global data access. It is particularly preferred for foreign trade and international projects.

The SIM800L V2.0 GSM/GPRS Module is a quad-band GSM/GPRS module that is compatible with Arduino. It enables both GSM functionalities (voice calls and SMS) and GPRS capabilities. One of its key benefits is that both the VCC and TTL serial levels operate at 5V, allowing for direct connection to Arduino or other systems that use a 5V voltage level.

While many GPRS/GSM modules on the market require additional 5V regulators and level converter circuits, the SIM800L V2.0 GSM/GPRS module comes with a built-in regulator circuit and TTL level converter on the board, simplifying its integration.

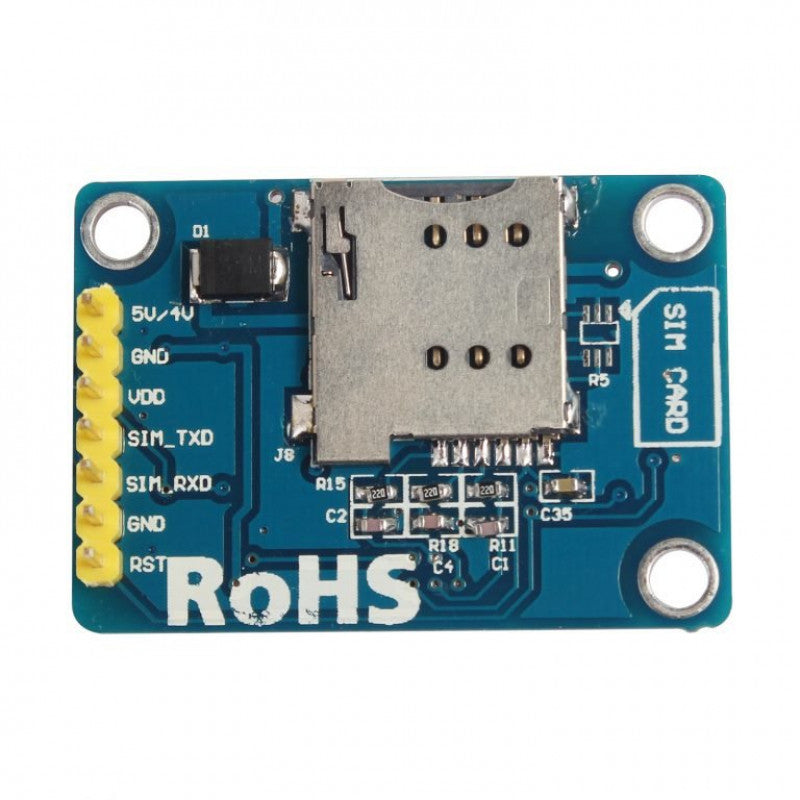

Pin Description:-

5v: Power interface Power the module CONNECT TO DC 5v
GND: Connect to GND.
VDD: TTL UART interface The TTL UART serial interface, you can connect the MCU like 51MCU or ARM or MSP430 directly. The pin of VDD is used to match the voltage of the TTL.
SIM_TXD: SIM module Transmitter.
SIM_RXD: SIM module Receiver.
GND:If this pin is unused, keep open.
RST: RST the module, if this pin is unused, keep open.


Features :-

  1. Network support: Quad-Band 850/900/1800/1900 MHz works on GSMnetworks in all countries across the world.
  2. TTL serial interface compatible with 3.3V and 5V MCU
  3. The small size is suitable for all kinds of sleeve belt type and embedded.
  4. playing card slot, convenient change mobile phone card.Can side reserve replacement cell phone bayonet into the box.
  5. using the IPX interface can arbitrarily change the antenna. The default PCB antenna greatly reduces: use the space.
  6. the board with gold plated board, more stable performance.
  7. when wiring neat guarantee board running more stable.
  8. this module adds a protection device, which can realize the prevention, high pressure, reduce the loss of the board, suitable for the project and learn.

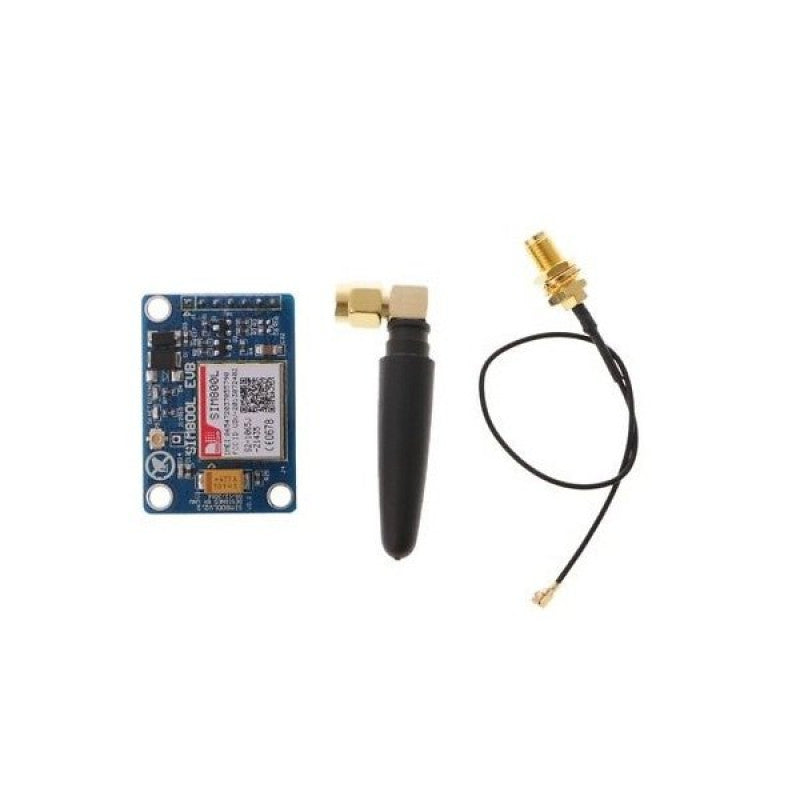

Package Includes :-

1 xSIM800L V2.0 5V Wireless GSM GPRS MODULE.

1 x L-Shape Antena

Specifications :-

Interface Type

TTL
UART

Baud Rate

Adaptive (default), Support2400-115200

Input Supply Voltage (VDC)

5 ~ 20

Power Interface

2.54mm Pin Header/MICRO USB

Antenna Interface

ASMA, IPX

Voice Interface

3.5mm

PCB Dimension (lxbxh)mm

40.127.111.1

Mounting hole dimensions

Hole diameter=3.8mm
X-axis pitch=33.5mm
Y-axis pitch=21.5mm


* Product Images are shown for illustrative purposes only and may differ from actual product.
