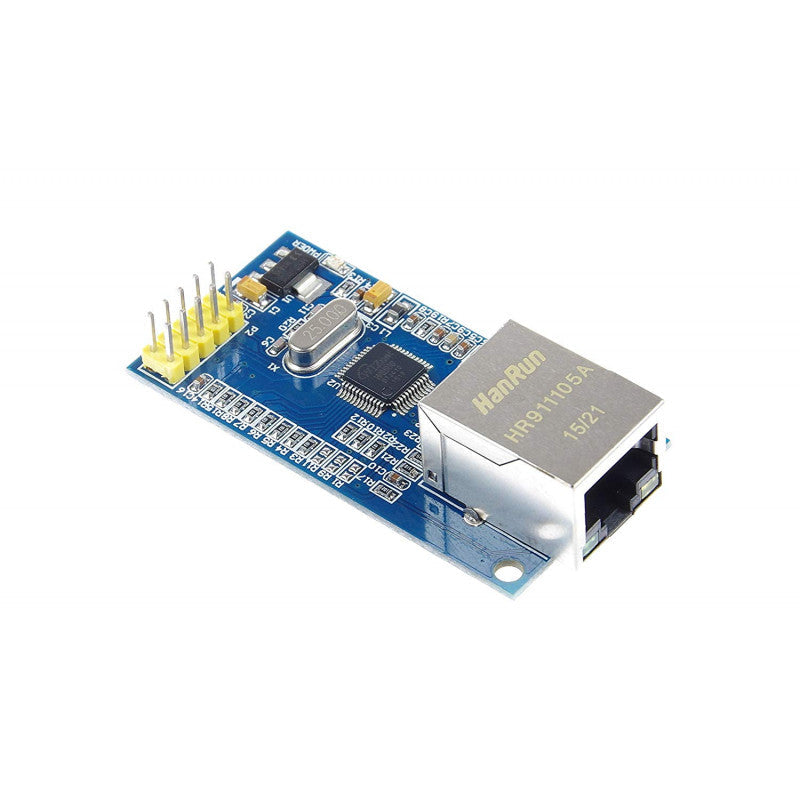

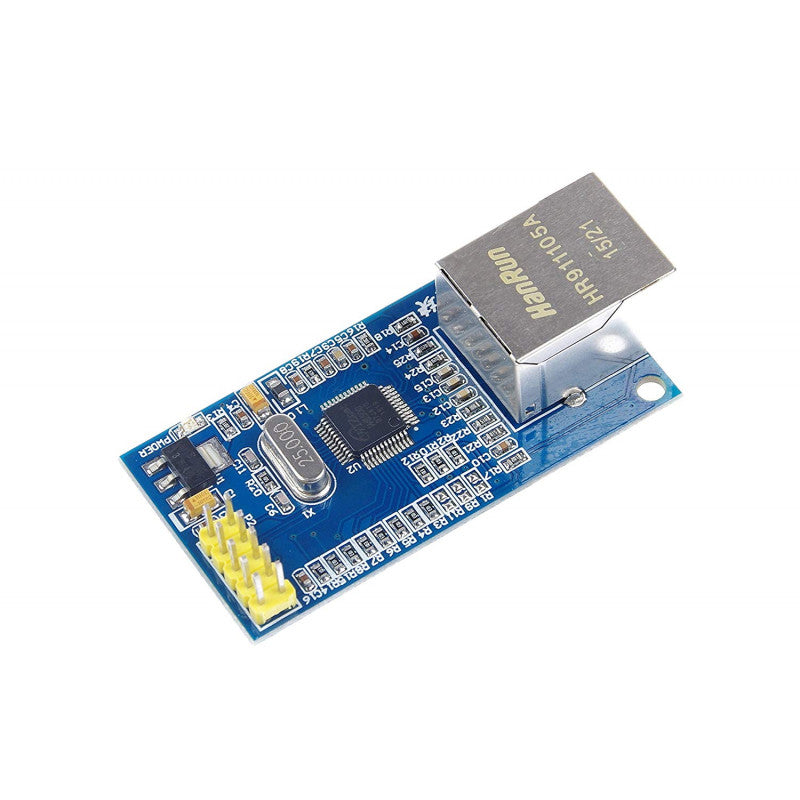

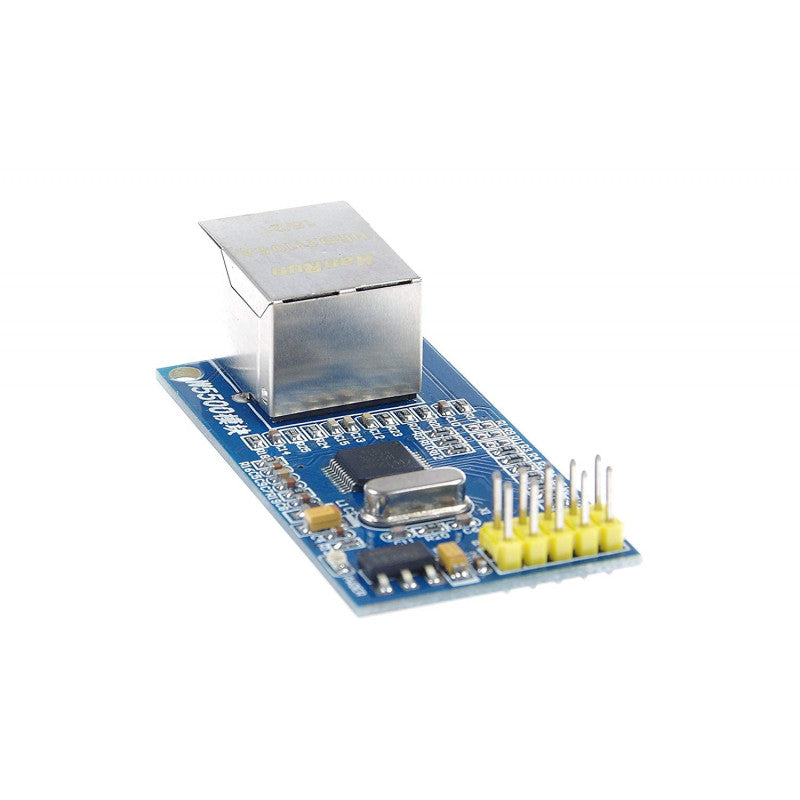

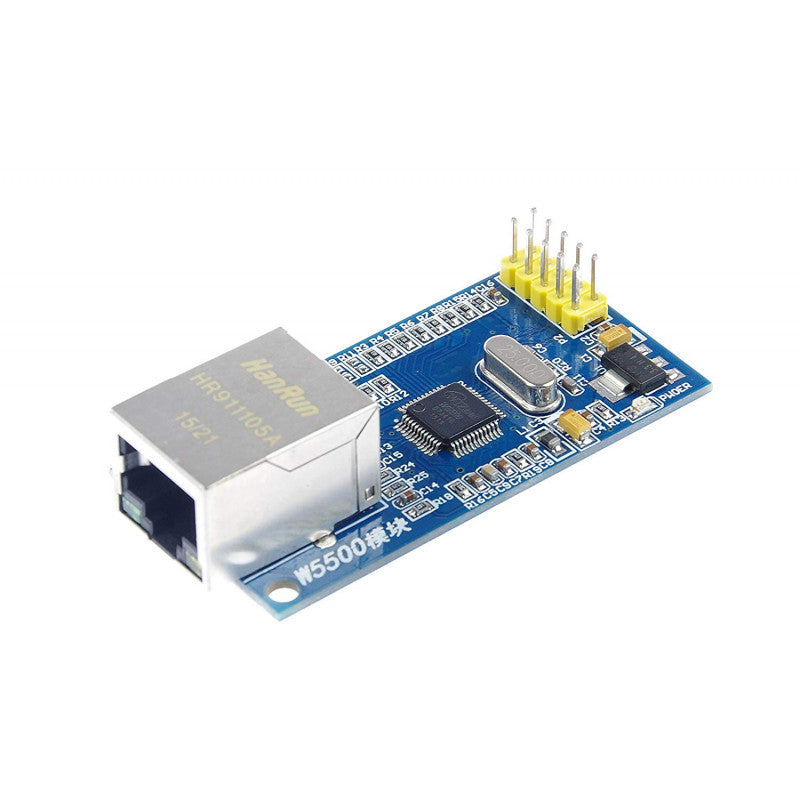

SPI to Ethernet Hardware TCP/IP W5500 Ethernet Network Module

SKU: R0104
Availability: Out Of Stock
Rs. 432.00 (Inclusive of 18% GST) No Hidden Charges
🚚 Order Above ₹999 & Get Free Shipping Anywhere in India

The W5500 chip is a hardwired TCP/IP embedded Ethernet controller designed to simplify Internet connectivity for embedded systems. It allows users to integrate Internet functionality into their applications using a single chip, which includes an embedded TCP/IP stack, 10/100 Ethernet MAC, and PHY.

The SPI to Ethernet Hardware TCP/IP W5500 Ethernet Network Module, based on the WIZNET W5500 chip, incorporates a complete hardware TCP/IP protocol stack, eliminating the need to implement it in code. It supports transmission rates of 10/100MBPS and features sleep mode and Wake on LAN functionality, along with an integrated 32K TX/RX buffer.

This module supports up to 8 independent ports running simultaneously and can operate with either a 3.3V or 5V power supply, making it versatile for use in different SCM systems. Communication between the module and the MCU system occurs via the SPI protocol, supporting SPI clock frequencies up to 80 MHz. The module also provides support for STM32 and 51 SCM in client, server, and UDP modes.

Applications:-

  1. Home Network Devices: Set-Top Boxes, PVRs, Digital Media Adapters
  2. Serial-to-Ethernet: Access Controls, LED displays, Wireless AP relays, etc.
  3. Parallel-to-Ethernet: POS / Mini Printers, Copiers
  4. USB-to-Ethernet: Storage Devices, Network Printers
  5. GPIO-to-Ethernet: Home Network Sensors
  6. Security Systems: DVRs, Network Cameras, Kiosks
  7. Factory and Building Automation
  8. Medical Monitoring Equipment
  9. Embedded Servers

Features:-

  1. 10BaseT/100BaseTX Ethernet PHY embedded.
  2. Supports automatic response (full duplex/half duplex mode).
  3. Supports 8 independent sockets simultaneously.
  4. Internal 32Kbytes Memory for Tx/Rx Buffers.
  5. Power off mode: support.
  6. Network wake: support.
  7. SPI interface (SPI MODE 0, 3), convenient connection with MCU.


Package Includes:-

1 x SPI to Ethernet Hardware TCP/IP W5500 Ethernet Network Module.


Specifications :-

Chip type

W5500

Input Voltage (V)

3.3 ~ 5

Supports Hardwired TCP/IP Protocols

TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE

Internal Memory (KByte)

32

Length (mm)

60

Width (mm)

28

Height (mm)

17

Weight (gm)

12

* Product Images are shown for illustrative purposes only and may differ from actual product.
