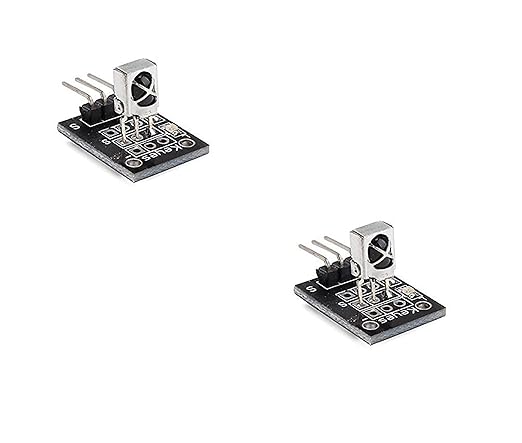

TSOP SENSOR MODULE KY-022 - (Pack of 2)

SKU: R1091
Availability: Out Of Stock
Product type: Uncategorized
Rs. 199.00 (Inclusive of 18% GST) No Hidden Charges
🚚 Order Above ₹999 & Get Free Shipping Anywhere in India

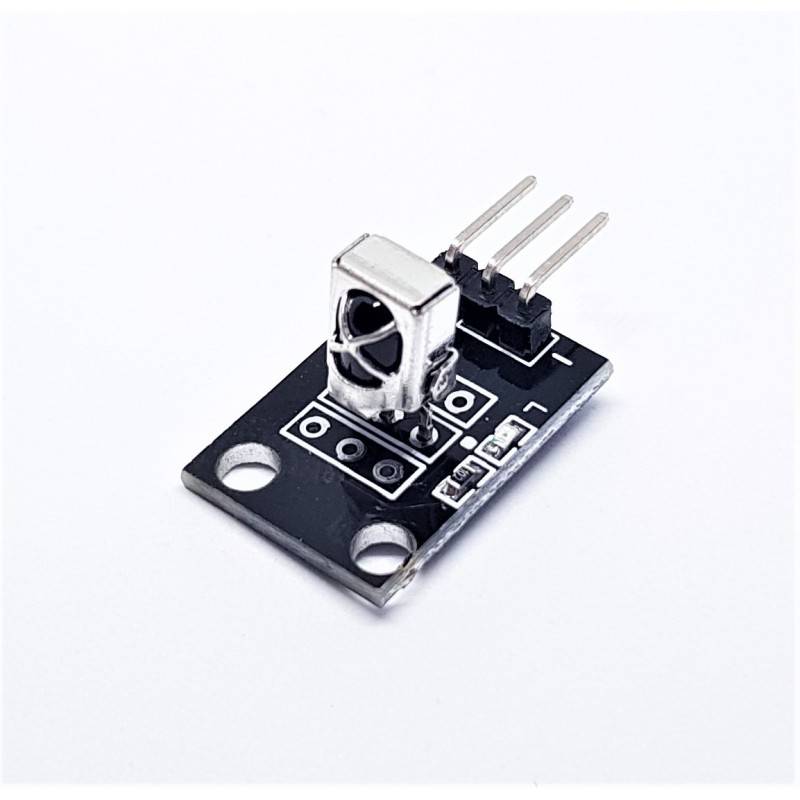

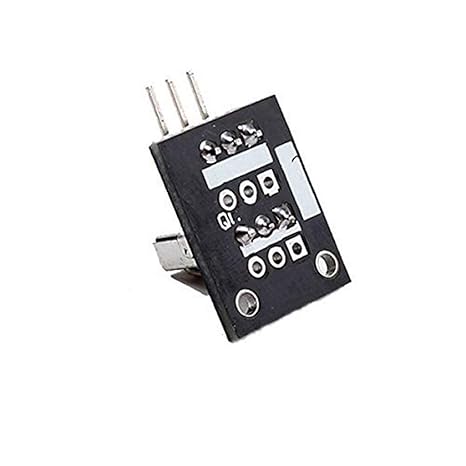

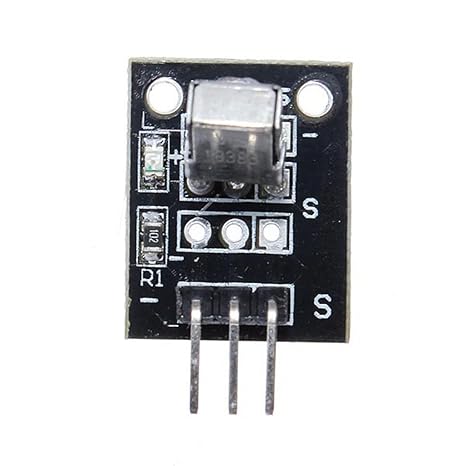

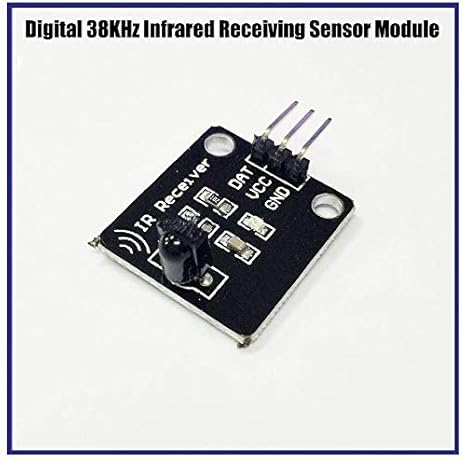

The TSOP Sensor Module KY-022 is an infrared (IR) receiver module used to detect infrared signals from devices such as remote controls, IR transmitters, or other IR-based communication systems. It is based on the TSOP series of IR receivers produced by Vishay, which are designed for receiving modulated infrared light at specific frequencies, commonly 38kHz for consumer electronics.

Key Features:

  1. IR Receiver:
    • The KY-022 module contains an IR receiver capable of detecting infrared signals from an IR remote or any device that emits infrared light.
  2. TSOP Sensor:
    • The module uses a TSOP sensor, typically the TSOP4838 or a similar model, designed to receive modulated signals (e.g., 38kHz) and demodulate them into a standard signal readable by microcontrollers.
  3. 38kHz Modulation Frequency:
    • The sensor module is tuned to 38kHz, which is the typical frequency used in consumer electronics like remote controls (TVs, air conditioners, etc.).
  4. Low Power Consumption:
    • The module operates on low power, making it suitable for battery-powered applications and energy-efficient devices.
  5. Simple Interface:

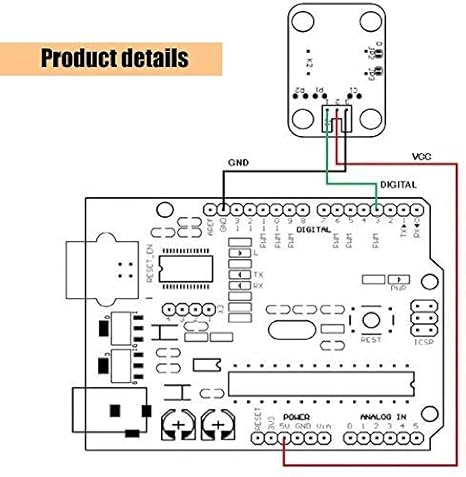

    • The module provides a simple digital output. It can be easily interfaced with microcontrollers, such as Arduino, Raspberry Pi, and others, to receive data from an IR remote control.
  6. Wide Angle of Reception:
    • The KY-022 sensor has a wide reception angle, allowing it to receive IR signals from a larger area. Typically, it can work within a range of around 20-30 feet (depending on the IR LED power and environment).
  7. Noise Filtering:
    • The TSOP series sensors, including the one in the KY-022 module, have built-in noise filtering to ensure accurate signal reception, even in environments with other sources of IR interference.
  8. Output Pin:
    • The module has an output pin (usually labeled "OUT") that sends the decoded signal to a microcontroller or other digital processing unit for further use. This output pin goes high when the IR signal is detected.
  9. Built-in Demodulation:
    • The TSOP module demodulates the modulated IR signal, meaning it converts the high-frequency signal (e.g., 38kHz) into a logic level that can be understood by a microcontroller or other devices.
  10. Compact and Easy to Use:
    • The module is compact in size and is designed to be easily integrated into DIY projects or embedded systems for IR signal detection.

Product Details:


Operating Voltage 3 - 5 V DC
Current Consumption 50 uA
Output Type 3.3 V TTL Output
Working Temperature -20 to +80 Deg C
Dimension 28mm x 15mm x 12mm
Detection range 1m-25m
Brand TSOP
Model KY-022
Delay Time 1ms
