USB Mini Discharge Load Resistor 2A/1A with 1A green LED and 2A red LED

SKU: R0044
Availability: Out Of Stock
Rs. 47.00 (Inclusive of 18% GST) No Hidden Charges
🚚 Order Above ₹999 & Get Free Shipping Anywhere in India

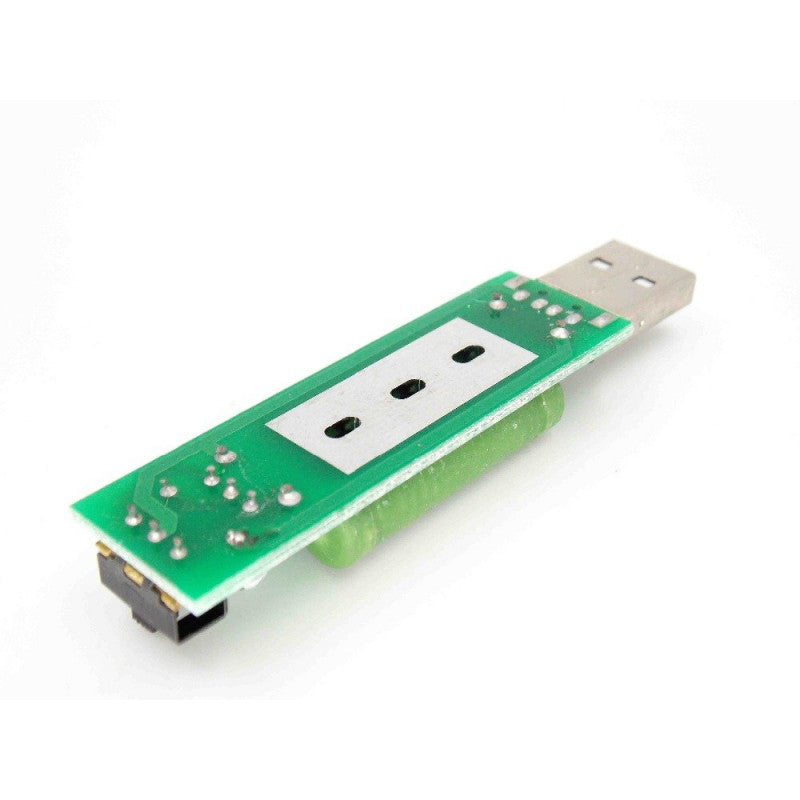

This is a USB Mini Discharge Load Resistor with 1A/2A capabilities, featuring an indicator with a 1A green LED and a 2A red LED. It uses a toggle switch to easily switch between 1A and 2A discharge currents, with corresponding colored work lights. When switched to 1A, the green LED lights up, and when switched to 2A, the red LED turns on. The back of the device has a large copper area and additional cooling holes to improve heat dissipation.

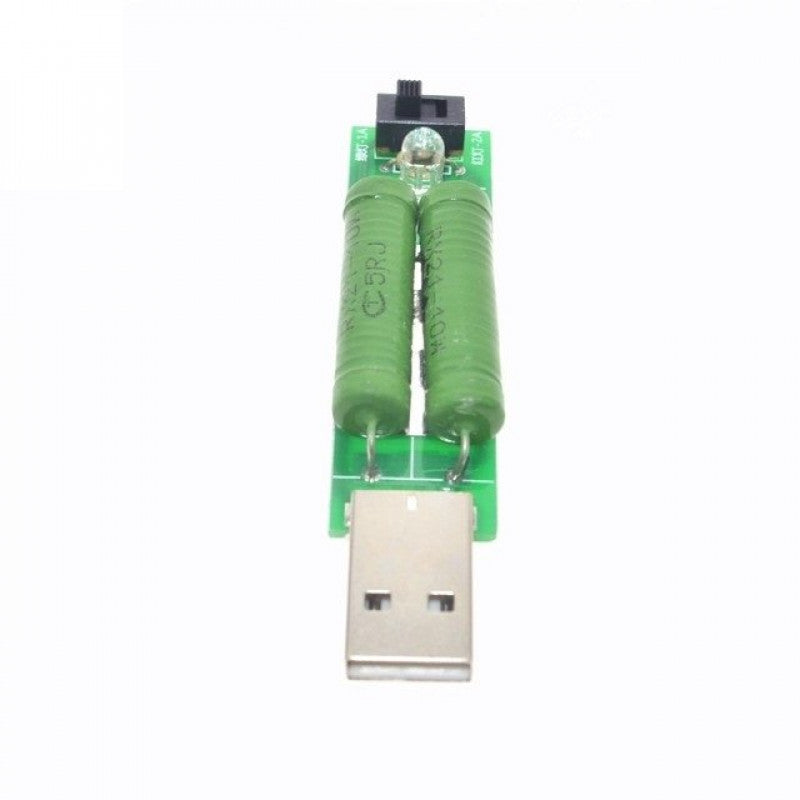

This device uses a true 5-ohm winding resistor for discharge, providing more accurate testing results, closer to 2A discharge.

Function switch:-

  • If your power supply’s maximum output is 1A, switch to the 1A mode for testing. For power outputs of 2A or above, switch to the 2A mode.

Judgment criteria:-

  • Insert the USB output port of the power source or mobile power supply. In 1A mode, the green LED will light up, and in 2A mode, the red LED will illuminate.

CAUTION:

1. The work of the loader, winding resistance due to high current, will inevitably produce very, very high temperature, so in use, and just use a short time, So as not to be burned! Do not allow flammable materials to touch the tester to avoid fire! In short, the use of the process must be highly vigilant!
2. Taking into account the resistance around the particularity of the initial use of electricity for some time after the emergence of a small white smoke and odor phenomenon is due to external paint also contains a very small amount of water, power high-temperature heating, water evaporation white smoke, Paint by high-temperature baking smell, after the use of a period of time completely disappeared. This phenomenon will appear, is a normal situation, do not worry about damage to the load tester, please rest assured that use.


Features :-

  1. USB mini discharge load resistor 2A/1A is mainly to do discharge test if the charger or mobile power supply output current is 2A, load meter power is 5V * 2A = 10W, if the output current is 1A, then the power load is 5V * 1A = 5W.
  2. Switch and USB interface design.


Package Includes :-

1 x USB mini discharge load resistor 2A/1A.



Specifications :-

Rated Power (W)

5 to 10

Type

Fixed Resistor

USB Type

Type-A

PCB Size ( L x W ) mm

58 x 18

Height (mm)

10

Weight (gm)

14

* Product Images are shown for illustrative purposes only and may differ from actual product.
