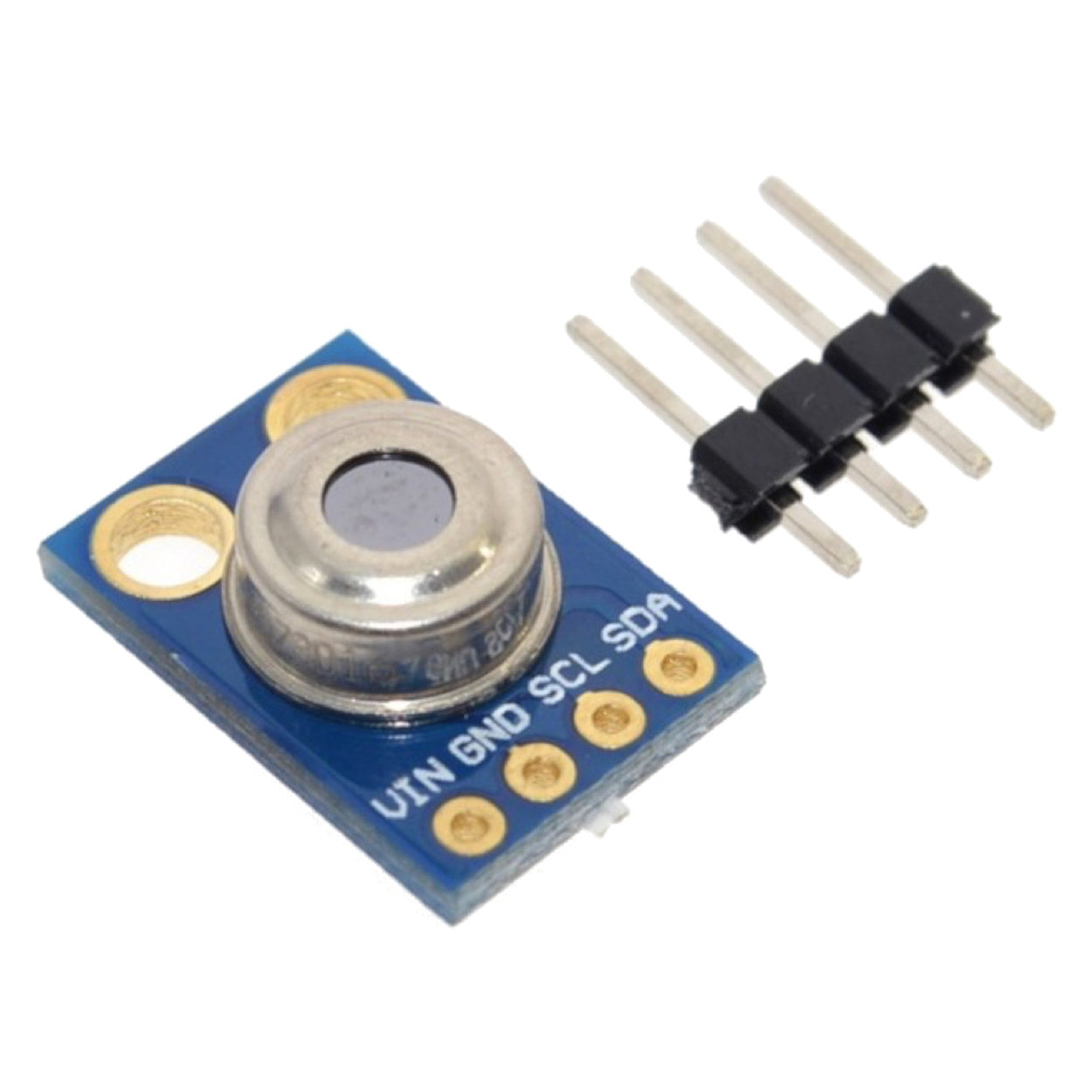

GY-906 MLX90614 BAA Non Contact Infrared Temperature Sensor Digital Output

This is an infrared thermometer designed for non-contact temperature sensing. An internal 17-bit ADC and a powerful DSP contribute to the MLX90614’s high accuracy and resolution. It has a huge number of applications, including body temperature measurement and movement detection. The sensor has a field of view of 90 degrees and returns the average temperature value of all objects within this field of view. It has a range of around 1cm.

Being a very popular module, numerous tutorials, guides and sample codes are available on the internet which will help you get started with this sensor. The breakout board offers a plug-and-play with Arduino, Raspberry Pi, NodeMCU, ESP8266, and other boards.

The MLX90614 provides two methods of output: PWM and SMBus (i.e. TWI, I2C). Both these outputs are easy and simple to use with Arduino, Raspberry Pi and other microcontrollers. The 10-bit PWM output provides a resolution of 0.14°C, while the TWI interface has a resolution of 0.02°C. The MLX90614 is factory calibrated in wide temperature ranges: -40 to 85°C for the ambient temperature and -70 to 382.2°C for the object temperature. The measured value is the average temperature of all objects in the 90-degree Field Of View of the sensor. The MLX90614 offers a standard accuracy of 0.5°C around room temperatures.

Features

• High accuracy of 0.5°C over a wide temperature range

• Works from 3.3V to 5V input.

• The module has a power regulator IC built in.

• Standard I2C interface with built-in 2x pull-up resistors

• SMBus-compatible digital interface for fast temperature readings and building sensor networks

• Customizable PWM output for continuous reading

• Power saving mode & Automotive grade

• Small size, low cost

• Easy to integrate

Package Includes:

• 1 x GY-906 MLX90614 BAA Non Contact Infrared Temperature Sensor Digital Output

Specifications:

• Product: Temperature Sensor

• Model: GY-906 MLX90614 BAA

• Type: Non-Contact Infrared Temperature Sensor Module

• Operating Voltage: 3V- 5V

• Operating Current: 2mA

• Communication protocol: I2C.

• Field of View (FOV) - 90°

• Sensor working temperature: -40 to +125 Degree C

• Sensing temperature range: -70 to +380 Degree C

• When measuring the temperature, please maintain a measuring distance of 1 cm

• PCB dimensions 11mm x 17 mm

Applications

• High precision non-contact temperature measurements

• Thermal Comfort sensor for Mobile Air Conditioning control system

• Temperature sensing element for residential, commercial and industrial building air conditioning, Windshield defogging

• Industrial temperature control of moving parts

• Temperature control in printers and copiers

• Home appliances with temperature control

• Healthcare, Livestock monitoring, Movement detection

• Multiple zone temperature control – up to 127sensors can be read via a common 2-wire

• Thermal relay/alert, Body temperature measurement
