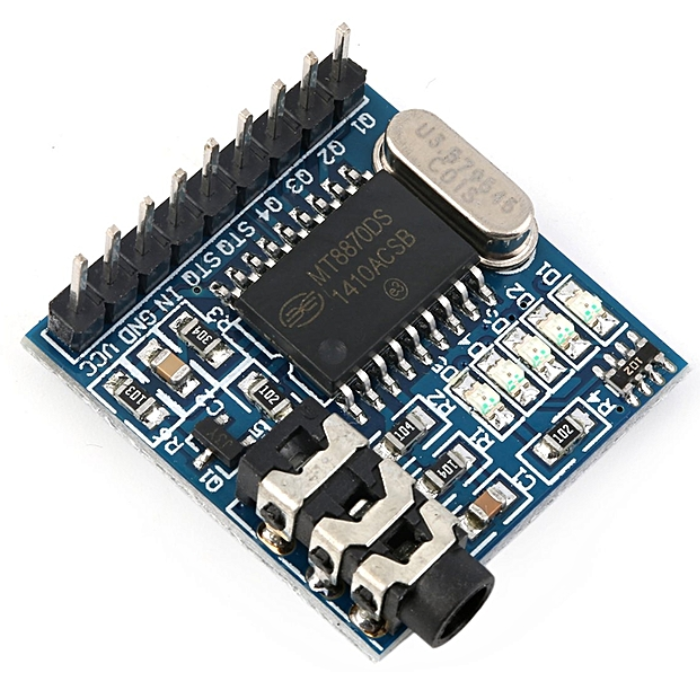

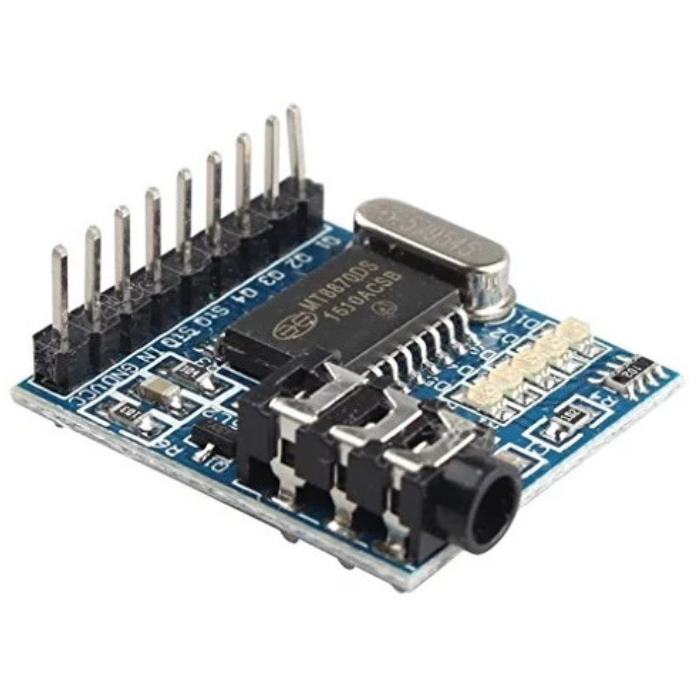

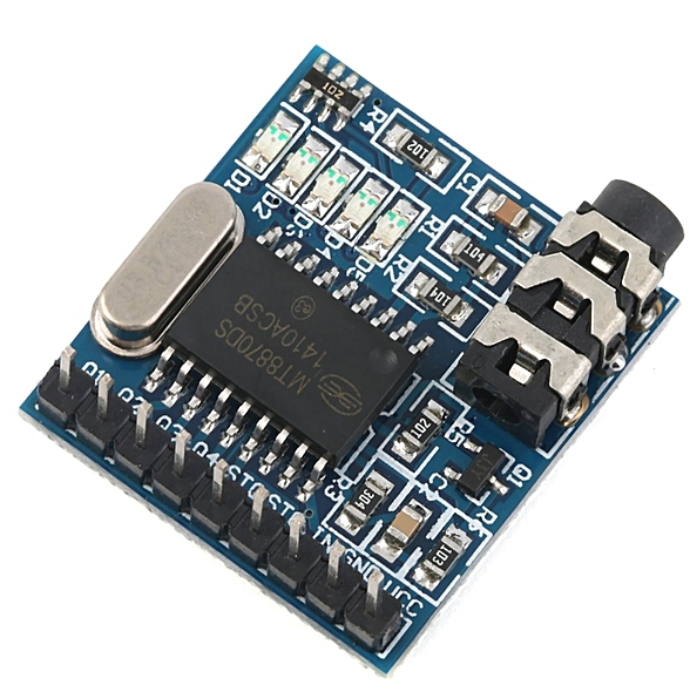

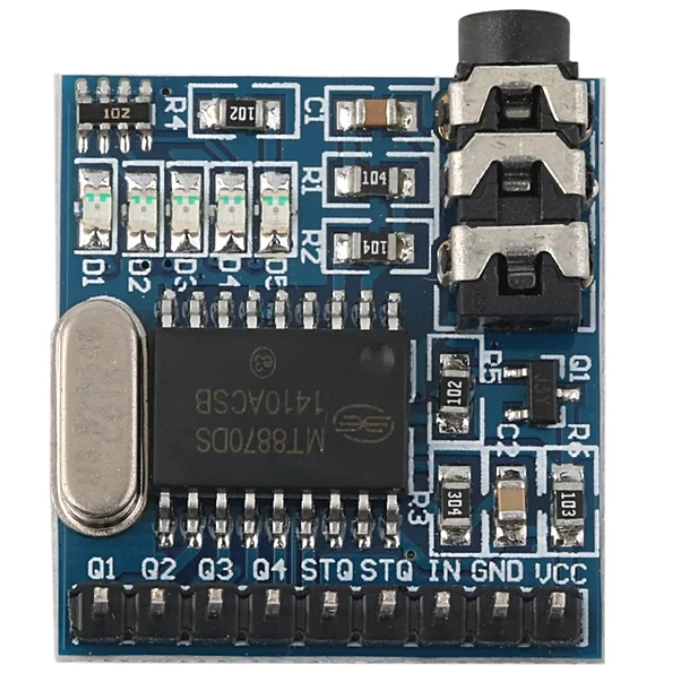

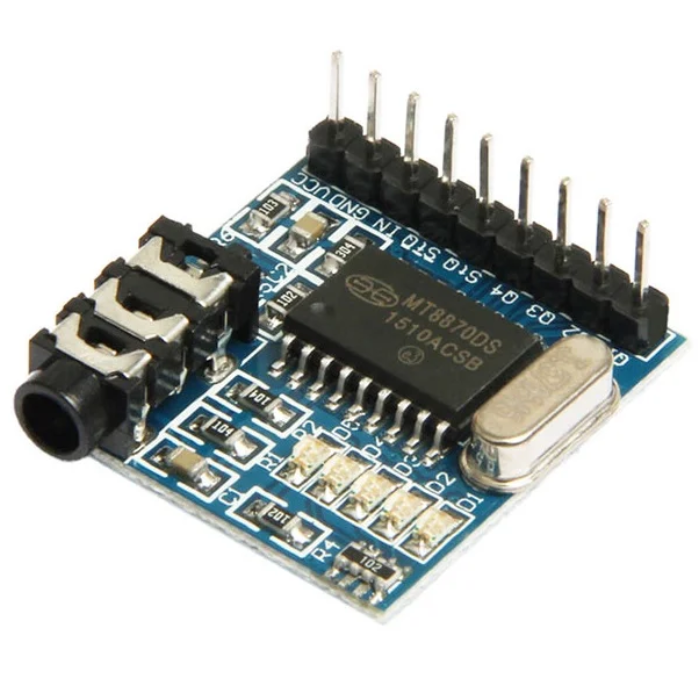

MT8870 DTMF Voice Decoding Module

MT8870 DTMF Voice Decoding Module

The DTMF Decoder Module is an outstanding choice for projects that necessitate dual-tone multi-frequency decoding. This module is ideally suited for applications such as modem interfaces, mobile radios, and various DTMF implementations, ensuring extensive compatibility with a focus on user-friendliness.

It comes equipped with onboard LEDs, low power consumption, and an adjustable guard time, ensuring dependable performance and seamless integration with UNO/MEGA2560/DUE boards. The internal gain-setting amplifier and central office quality enhance signal reception, making it a preferred option for diverse projects. With user-friendly input interfaces, multi-channel outputs, and extensive functionality, this module is indispensable for both electronics enthusiasts and professionals.

Features:

• Integrated voice input interface

• Low power consumption

• Internal gain-setting amplifier

• Onboard LED for straightforward output state monitoring

• Customisable guard time

• Central office quality performance

• Built-in 3.5mm input interface

• 5-channel output interface

• Incorporates MT8870 frequency decoder chip

• Power-down mode available

• Inhibit mode functionality

• Integrated audio input interface

• LED indicators for output state verification, serving as a complete DTMF receiver

• Designed for direct insertion into the UNO/MEGA2560/DUE board, eliminating the need for external circuits or wiring

• 12 digital outputs for decoding mobile and fixed telephone keys (0-9, * #), plus an additional 4 digital outputs (ABCD) for software-controlled “DTMF Dial” functionality

Applications:

• Modems, mobile radios, and call routing systems

• Mobile-controlled robotics

• Home automation solutions

• Menu navigation via phone keypads

• Industrial automation applications

• Educational projects

• Prototyping tasks

Specifications
