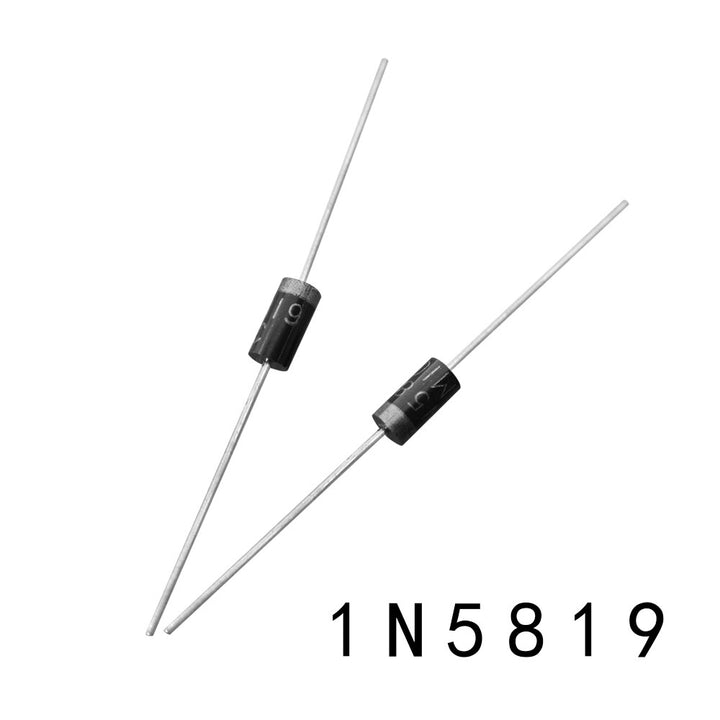

1N5819 1W Schottky Diode

The 1N5819 is a Schottky diode, known for its fast switching speed and low forward voltage drop characteristics.

Type: The 1N5819 is a Schottky diode, which is a semiconductor diode with a low forward voltage drop compared to standard diodes. It is commonly used in applications requiring fast switching and low power loss.

Power Dissipation: It can handle up to 1 watt of power dissipation under normal operating conditions.

Forward Voltage Drop: The forward voltage drop across the diode is typically much lower than standard silicon diodes, typically around 0.3 volts at low currents.

Reverse Voltage Rating: The maximum reverse voltage (VR) the 1N5819 can withstand without breakdown is usually around 40 volts, although exact specifications may vary depending on the manufacturer.

Forward Current: The maximum average forward rectified current (IF(AV)) for the 1N5819 is usually around 1 ampere.

Package Type: It is typically available in through-hole packages such as axial leads or surface-mount packages like SOD-123, making it suitable for various circuit designs.

Construction: Schottky diodes are constructed using a metal-semiconductor junction rather than a P-N junction in standard diodes. This construction contributes to their fast switching speed and low forward voltage drop characteristics.

Applications:

The 1N5819 is commonly used in applications where low forward voltage drop and fast switching times are critical, such as rectification, voltage clamping, and reverse polarity protection in power supplies, voltage regulators, and switching circuits.

Temperature Range: It is designed to operate over a wide temperature range, typically from -65°C to +125°C, ensuring reliable performance under different environmental conditions.
