PCF8591 ADC-DAC Converter Module
- Product SKU: R0916
- Category: Development Boards, Electronic Components, Other Modules, Robotics, ₹100 to ₹500

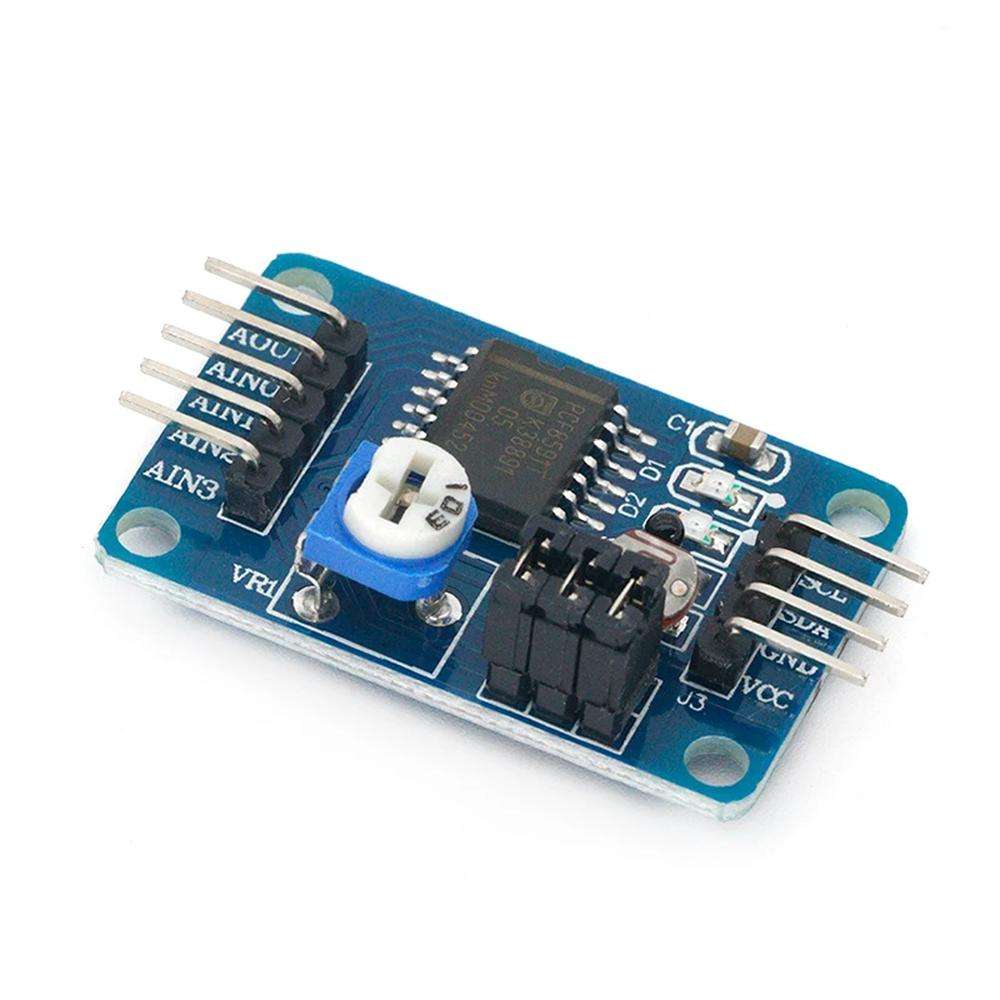

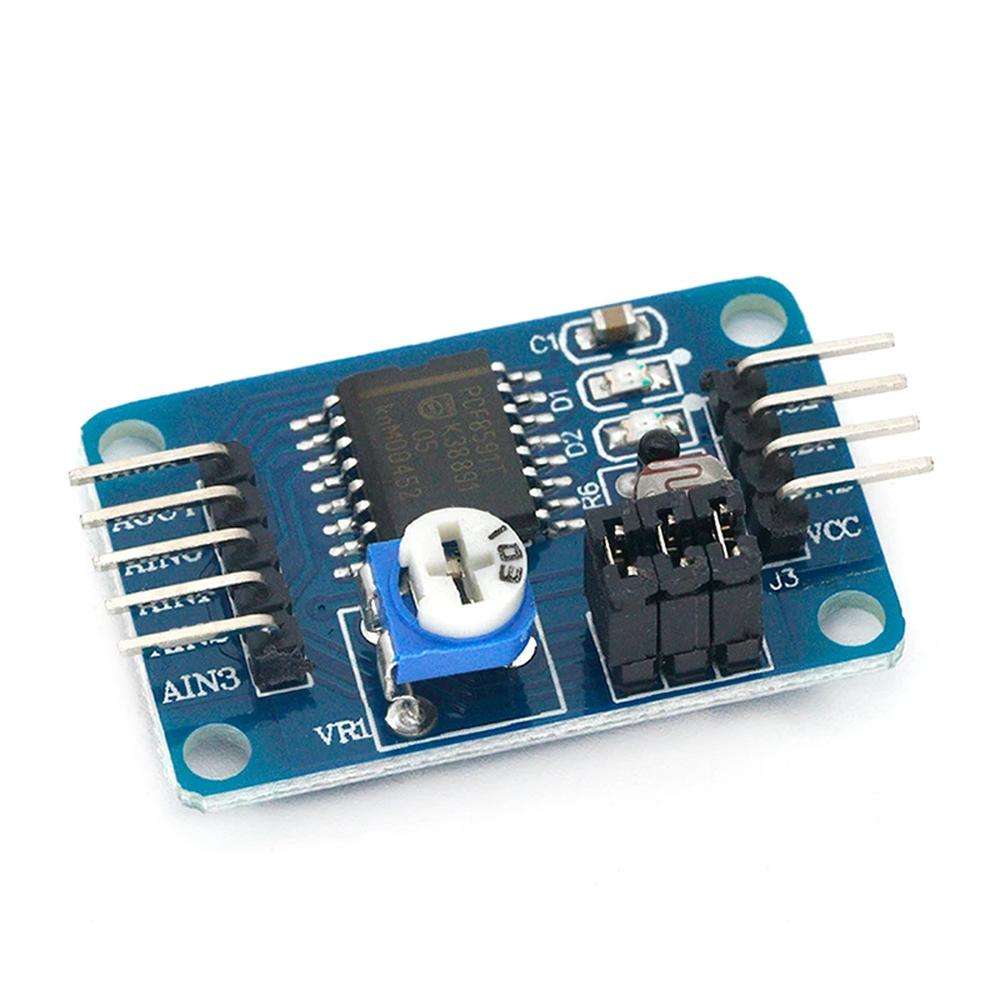

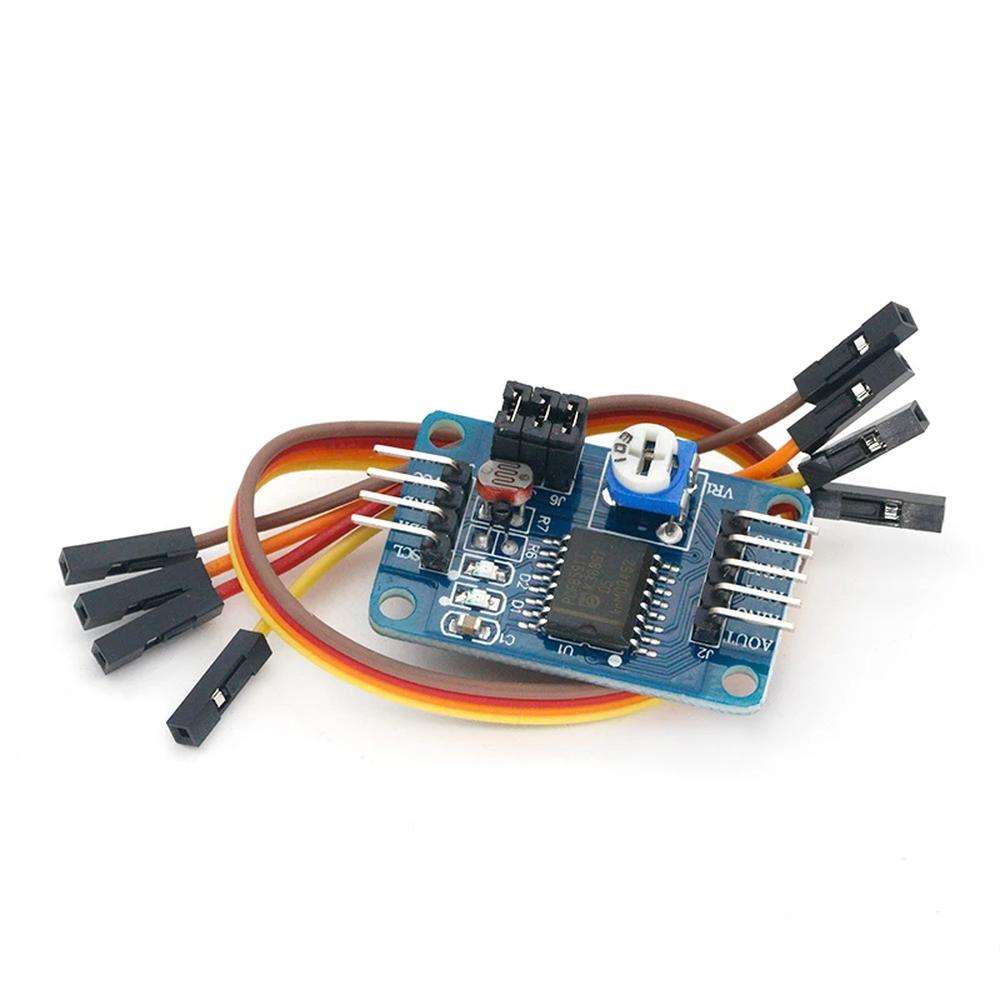

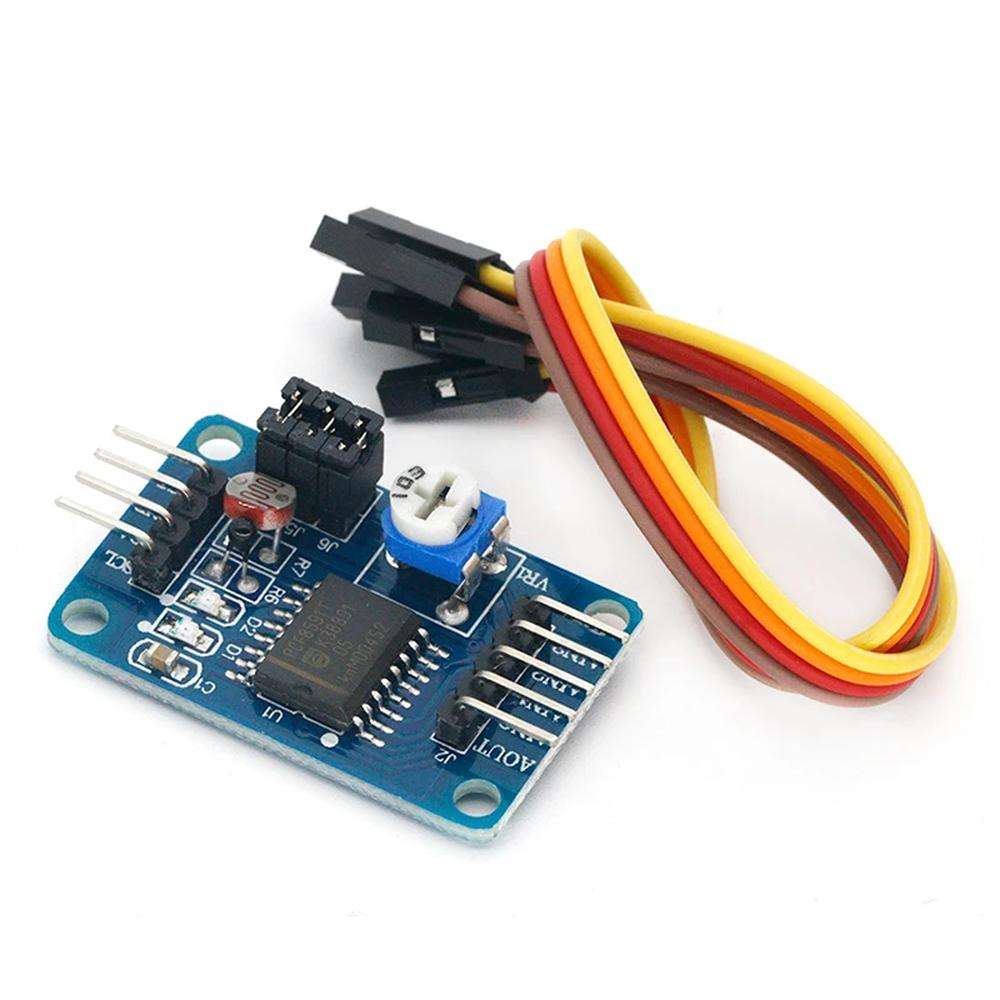

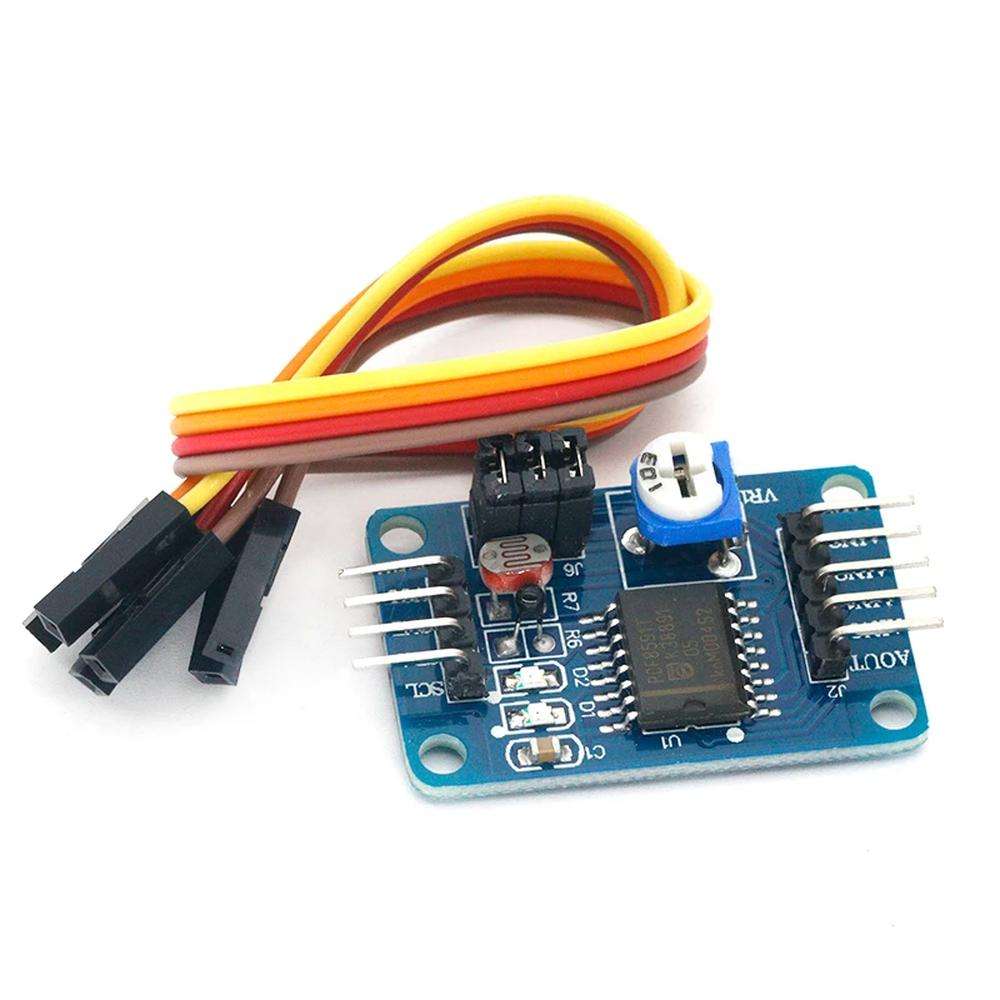

PCF8591-ADC-DAC Analog Digital Converter Module
The PCF8591 is a 8-bit CMOS data acquisition device. The PCF8591 has the four analog inputs, one analog output and a serial I2C bus interface. PCF8591 has three address pins A0, A1 and A2 that can be used to set the I2C hardware address, 8 PCF8591 could be on the same I2C bus, without the need for additional hardware. On the PCF8591 control and data signals are transmitted in serial fashion via the two-wire bidirectional I2C bus.
PCF8591 IC Features:
- Single power supply
- PCF8591 operating voltage range of 2.5V-6V
- Low standby current
- Via I2C bus serial input / output
- PCF8591 by 3 hardware address pins addressing
- PCF8591 I2C bus speed sampling rate decided
- 4 analog inputs programmable single-ended or differential input
- Automatic incremental channel selection
- PCF8591 analog voltage range from VSS to VDD
- PCF8591 built-in track-and-hold circuit
- 8-bit successive approximation A / D converter
- 1 analog output DAC gain
Package Includes:
- 1 x PCF8591-ADC-DAC Analog Digital Converter Module
Specifications:
| Voltage input range | 3 to 5V DC |
| Standard double panel thickness | 1.6mm, 4 x 3mm holes |
| PCB size | 3.6cm * 2.3cm |
PCF8591-ADC-DAC Analog Digital Converter Module
The PCF8591 is a 8-bit CMOS data acquisition device. The PCF8591 has the four analog inputs, one analog output and a serial I2C bus interface. PCF8591 has three address pins A0, A1 and A2 that can be used to set the I2C hardware address, 8 PCF8591 could be on the same I2C bus, without the need for additional hardware. On the PCF8591 control and data signals are transmitted in serial fashion via the two-wire bidirectional I2C bus.
PCF8591 IC Features:
- Single power supply
- PCF8591 operating voltage range of 2.5V-6V
- Low standby current
- Via I2C bus serial input / output
- PCF8591 by 3 hardware address pins addressing
- PCF8591 I2C bus speed sampling rate decided
- 4 analog inputs programmable single-ended or differential input
- Automatic incremental channel selection
- PCF8591 analog voltage range from VSS to VDD
- PCF8591 built-in track-and-hold circuit
- 8-bit successive approximation A / D converter
- 1 analog output DAC gain
Package Includes:
- 1 x PCF8591-ADC-DAC Analog Digital Converter Module
Specifications:
| Voltage input range | 3 to 5V DC |
| Standard double panel thickness | 1.6mm, 4 x 3mm holes |
| PCB size | 3.6cm * 2.3cm |
