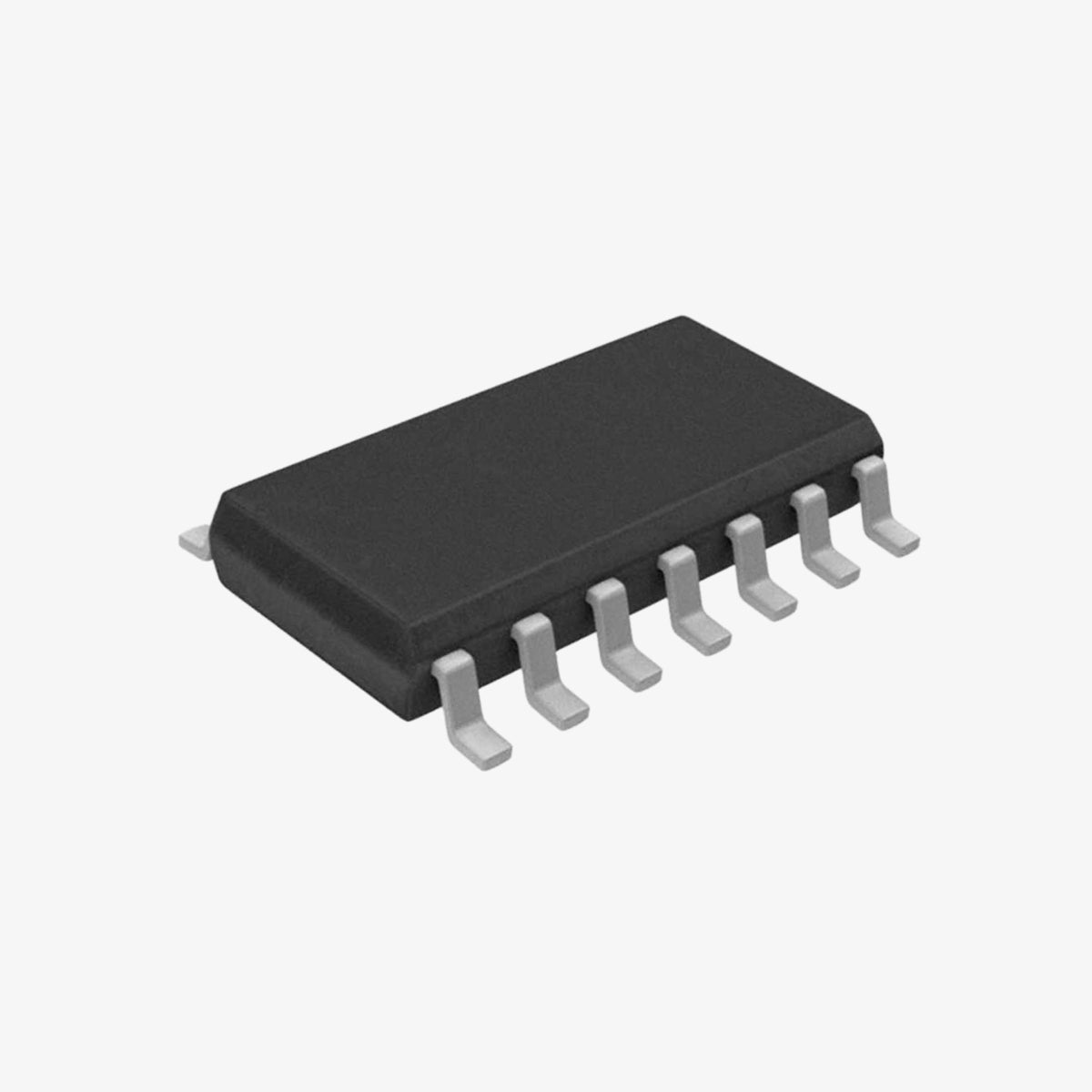

74HC02 Quad 2-Input NOR Gate IC - SOIC-14 SMD Package

The 74HC02 is a high-speed CMOS Quad 2-Input NOR Gate IC designed for a wide range of digital logic applications. It is housed in a compact SOIC-14 surface-mount device (SMD) package, making it suitable for high-density circuit board layouts. Here’s a detailed description of the product:

Key Features:

• Type: Quad 2-Input NOR Gate

• Package: SOIC-14 (Small Outline Integrated Circuit)

• Logic Family: 74HC (High-Speed CMOS)

• Operating Voltage: 2V to 6V

• Low Power Consumption: CMOS technology ensures low static power consumption

• High-Speed Operation: Fast propagation delay

• Wide Operating Temperature Range: -40°C to +85°C

Applications:

• Digital Logic Circuits: Ideal for general-purpose digital logic applications

• Signal Processing: Useful in signal processing and data manipulation

• Control Systems: Suitable for control systems and automation

• Embedded Systems: Commonly used in embedded systems and microcontroller interfacing

• Computing: Can be used in computing and arithmetic logic operations

Pin Configuration:

• Pin 1 (1A): Input A of NOR gate 1

• Pin 2 (1B): Input B of NOR gate 1

• Pin 3 (1Y): Output of NOR gate 1

• Pin 4 (2A): Input A of NOR gate 2

• Pin 5 (2B): Input B of NOR gate 2

• Pin 6 (2Y): Output of NOR gate 2

• Pin 7 (GND): Ground

• Pin 8 (3Y): Output of NOR gate 3

• Pin 9 (3A): Input A of NOR gate 3

• Pin 10 (3B): Input B of NOR gate 3

• Pin 11 (4Y): Output of NOR gate 4

• Pin 12 (4A): Input A of NOR gate 4

• Pin 13 (4B): Input B of NOR gate 4

• Pin 14 (VCC): Supply voltage

Electrical Characteristics:

• Supply Voltage (Vcc): 2V to 6V

• Input Voltage (Vin): 0V to Vcc

• Output Voltage (Vout): 0V to Vcc

• Low Input Current (Iin): ±1μA max

• Low Output Current (Iout): ±25mA max

• Propagation Delay: Typically 8ns at Vcc = 5V

• Power Consumption: Low power consumption due to CMOS technology

Note: Product images are for illustrative purposes only and may differ from the actual product.
