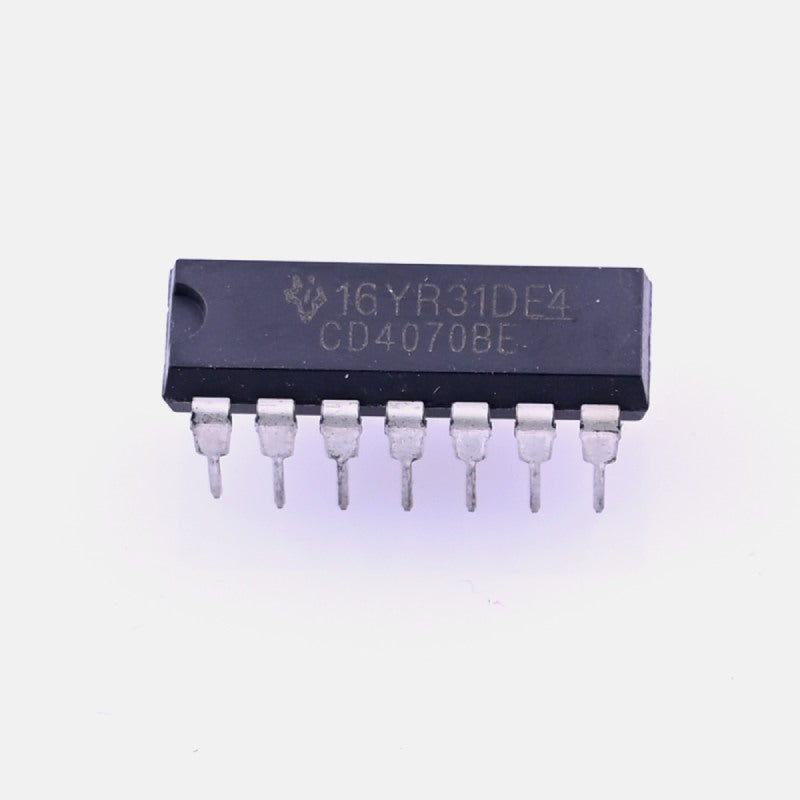

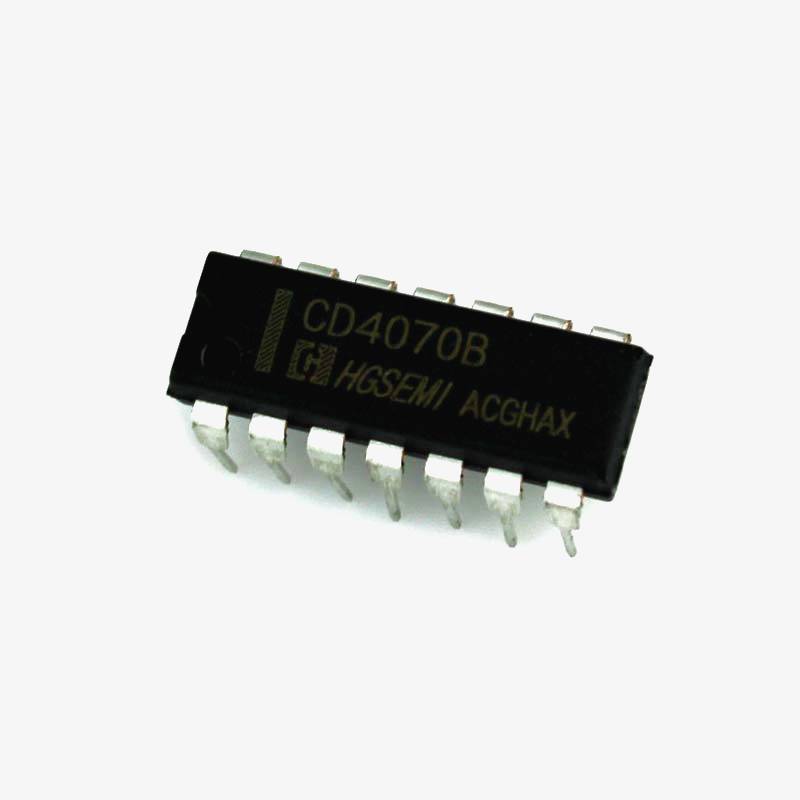

CD4070 - Quad 2-Input XOR Gate IC

The CD4070 IC contains four independent Exclusive OR gates inside a single package. It is often times referred to as a quad package 2-Input XOR gate IC. All four gates share the same power rail and each gate has two input lines and one output line. This IC gives the system designer a way to directly implement the Exclusive-OR Boolean function. The CD4070 makes use of complementary MOS (CMOS) transistors to achieve a broad power supply operating range, low power consumption, and a high noise margin. The IC operates at 5V, 10V, 15V, and even 20V. When operating at 5V the maximum low-level input voltage is 0.5 and the minimum high-level input voltage is 4.5

All inputs are protected from damage due to static discharge by diode clamps to VDD and VSS. The IC is mostly used in Logical comparators, Parity checkers, and generators.

Features of CD4070 - Quad 2-Input XOR Gate IC

• Has a wide supply voltage of up to 20V

• Symmetrical Output Characteristics

• Max input current 1µA at 18V over full Military Temperature Range

• Capable of driving x2 low power TTL loads or x1 LSTTL load (Fan out of 2 driving 74L or 1 driving 74LS)

• Has equal source and sink current capabilities

• Low Power TTL compatible

• Specified at 5V, 10V & 15V

• Noise Margin (Over Full Package Temperature Range) -:1V at VDD = 5V; 2V at VDD = 10V; 2.5V at VDD = 15V

• Operating Temperature Range: -55 to 125 °C

• Lead Temperature (TL) (Soldering, 10 seconds): 260°C

Package Contents

1× CD4070 - Quad 2-Input XOR Gate IC
