ESP32 CAM WiFi Module Bluetooth with OV2640 Camera Module 2MP For Face Recognization8

The ESP32 CAM WiFi Module with Bluetooth and OV2640 Camera Module (2MP) for Face Recognition is a compact camera solution that functions as a standalone system, boasting a footprint of just 40 x 27 mm. With a deep sleep current as low as 6mA, it is widely utilized in various IoT applications, including smart home devices, industrial wireless control, and wireless monitoring.

This module features a DIP package, allowing for direct insertion into a backplane for rapid product development. It offers a highly reliable connection mode, making it convenient for use in a variety of IoT hardware terminals.

The ESP32 integrates WiFi, traditional Bluetooth, and BLE Beacon capabilities, powered by two high-performance 32-bit LX6 CPUs and a 7-stage pipeline architecture. Its main frequency can be adjusted from 80MHz to 240MHz and includes on-chip sensors such as a Hall sensor and temperature sensor, among others.

Note: The product dimension may have2% error. The product color may have some variation due to the light effect.

Features :-

ESP32-CAM :

1. The smallest 802.11b/g/n Wi-Fi BT SoC module.

2. Low power 32-bit CPU, can also serve the application processor.

3. Up to 160MHz clock speed, summary computing power up to 600 DMIPS.

4. Built-in 520 KB SRAM, external 4MPSRAM.

5. Supports UART/SPI/I2C/PWM/ADC/DAC.

6. Support OV2640 and OV7670 cameras, built-in flash lamp.

7. Support image WiFI upload.

8. Supports TF card.

9. Supports multiple sleep modes.

10. Embedded Lwip and FreeRTOS.

11. Supports STA/AP/STA+AP operation mode.

12. Support Smart Config/AirKiss technology.

13. Support for serial port local and remote firmware upgrades (FOTA).

Specifications :-

1. Wireless Module: ESP32-S WiFi 802.11 b/g/n + Bluetooth 4.2 LE module with PCB antenna, u.FL connector, 32Mbit SPI flash, 4MBit PSRAM.

2. External Storage: micro SD card slotup to 4GB.

3. Camera

   • FPC connector.

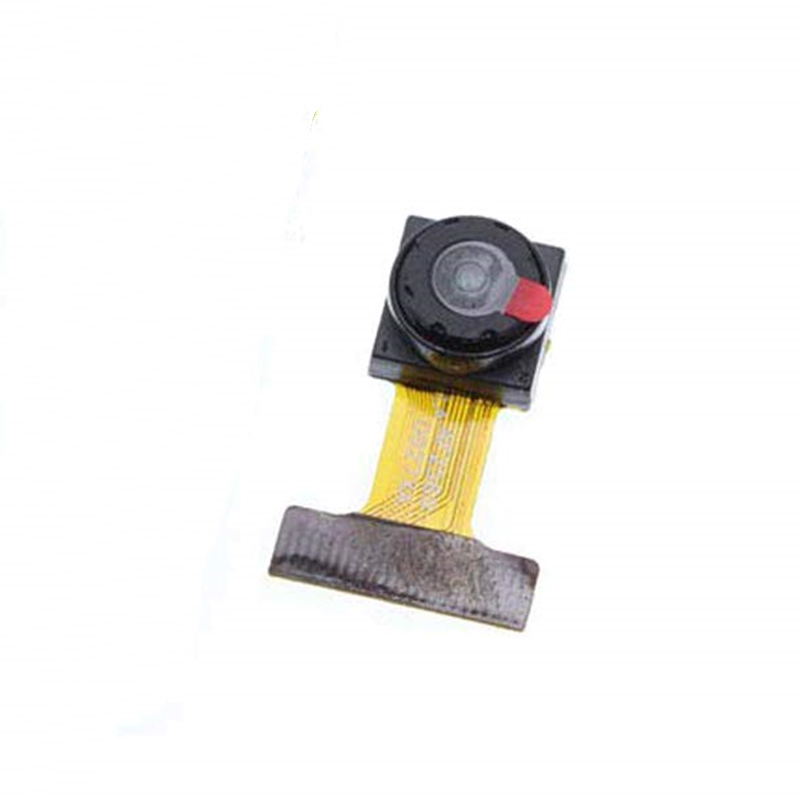

   • Support for OV2640 (sold with a board) or OV7670 cameras.

   • Image Format: JPEG(OV2640 support only ), BMP, grayscale.

   • LED flashlight.

4. Expansion: 16x through-holes with UART, SPI, I2C, PWM.

5. Misc: Reset button.

6. Power Supply: 5V via pin header.

7. Power Consumption.

1. Flash LED off: 180mA @ 5V.

2. Flash LED on to maximum brightness: 310mA @ 5V.

3. Deep-sleep: 6mA @ 5V min.

4. Modem-sleep: 20mA @ 5V min.

5. Light-sleep: 6.7mA @ 5V min.

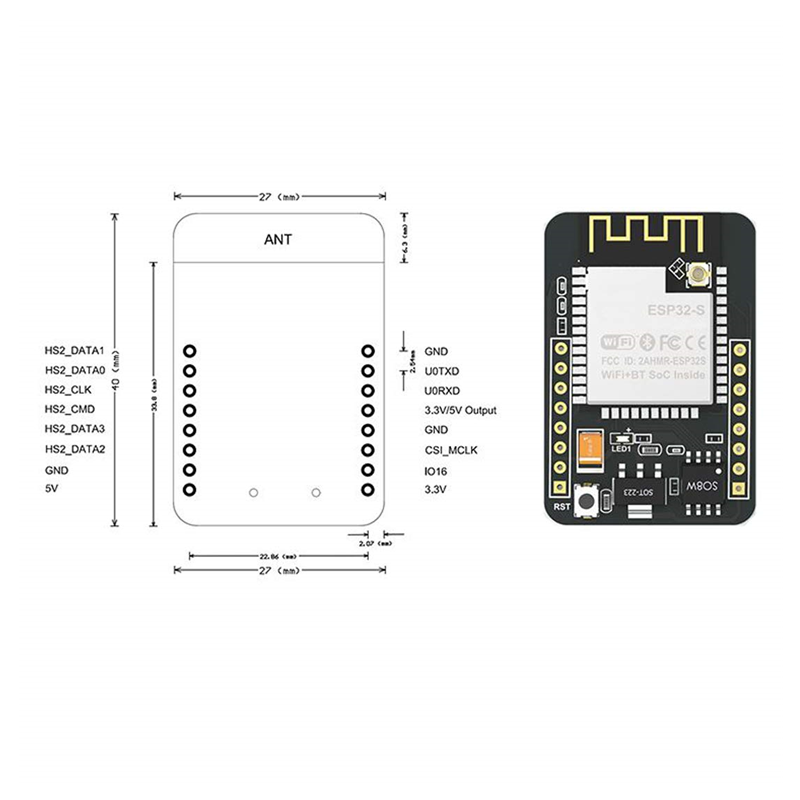

1. Dimensions (ESP32): 40 x 27 x 12 (LxWxH) mm.

2. Temperature Range: Operating: -20 ~ 85 ; storage: -40 ~ 90 @ <90%RH.

Package Includes :

1 x ESP32 CAM WiFi Module.

1 x OV2640 Camera Module 2MP.
