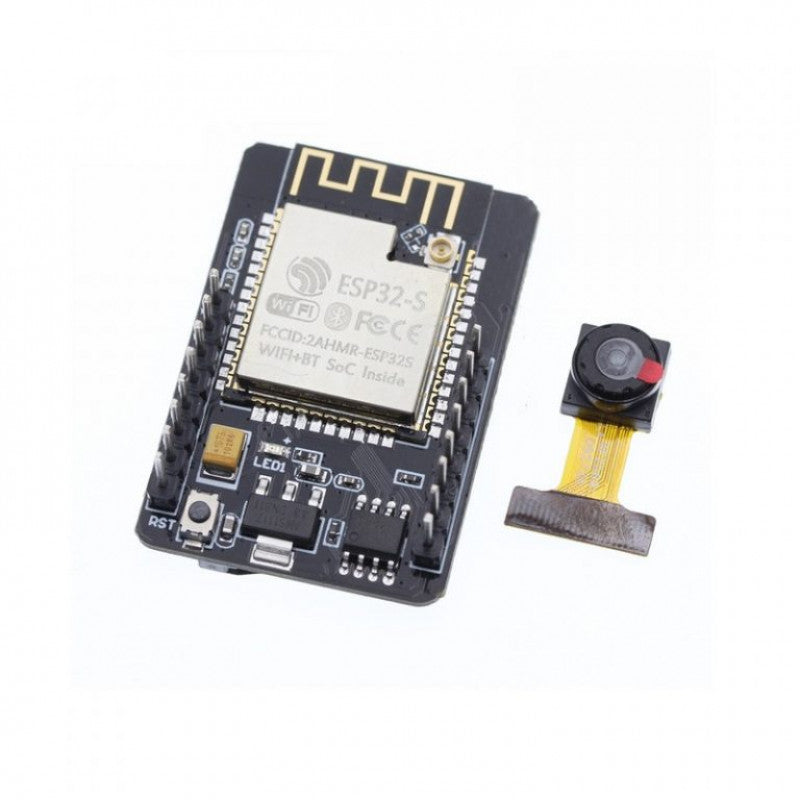

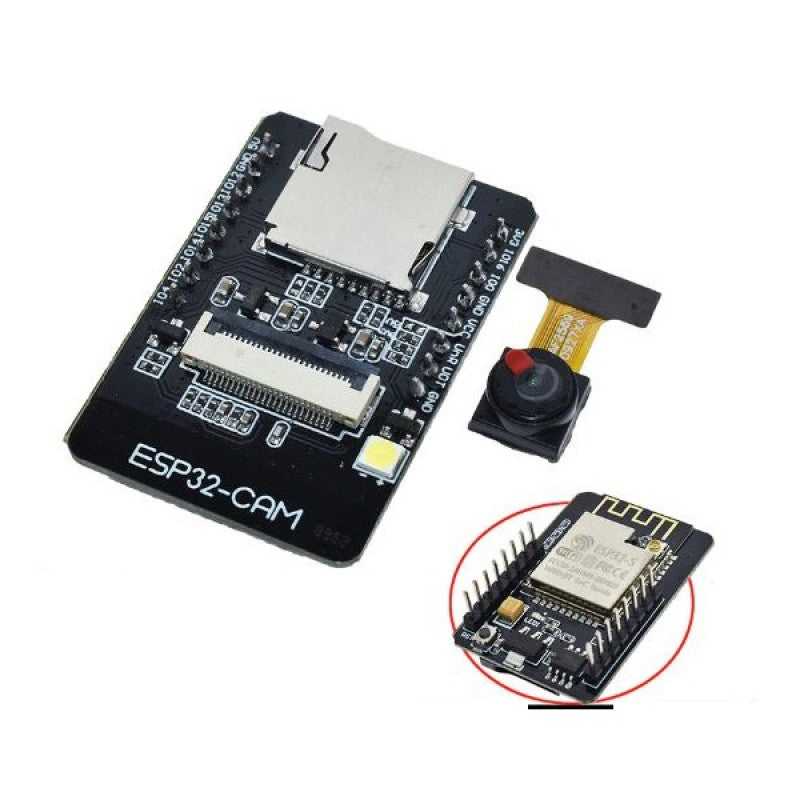

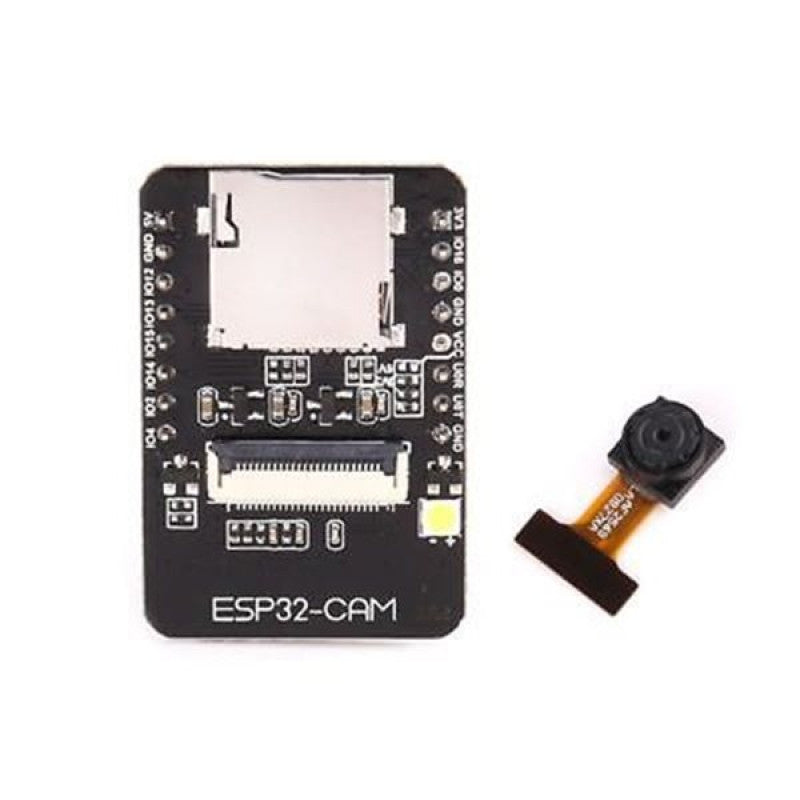

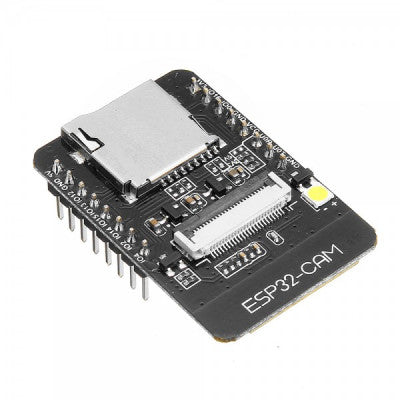

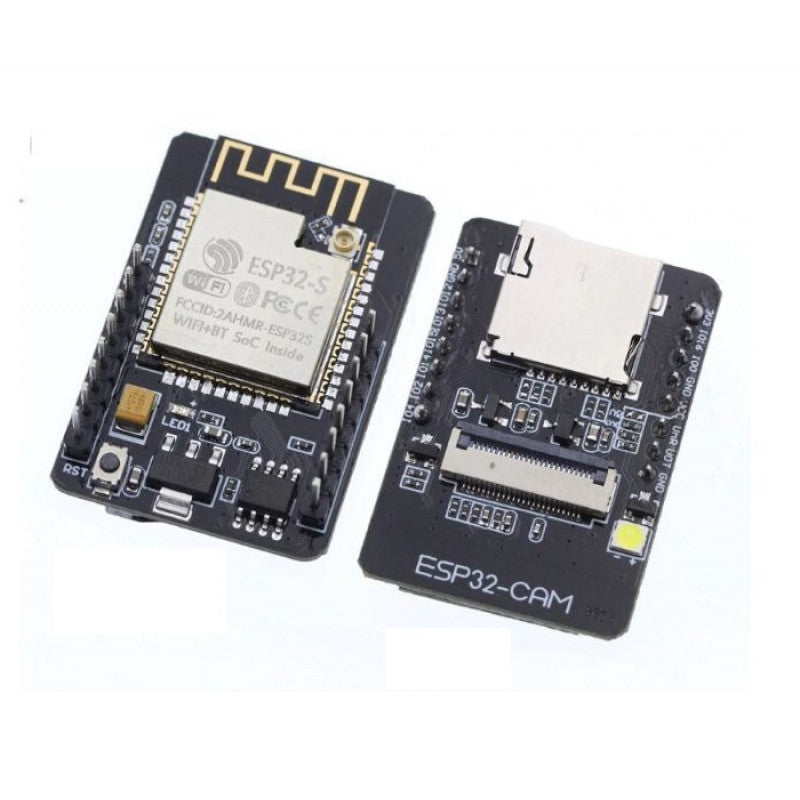

ESP32 CAM WiFi Module Bluetooth with OV2640 Camera Module 2MP For Face Recognization

SKU: R0411
Availability: Out Of Stock
Rs. 667.00 (Inclusive of 18% GST) No Hidden Charges
🚚 Order Above ₹999 & Get Free Shipping Anywhere in India
Description

The ESP32 CAM WiFi Module with Bluetooth and OV2640 Camera Module (2MP) for Face Recognition is a compact camera solution that functions as a standalone system, boasting a footprint of just 40 x 27 mm. With a deep sleep current as low as 6mA, it is widely utilized in various IoT applications, including smart home devices, industrial wireless control, and wireless monitoring.

This module features a DIP package, allowing for direct insertion into a backplane for rapid product development. It offers a highly reliable connection mode, making it convenient for use in a variety of IoT hardware terminals.

The ESP32 integrates WiFi, traditional Bluetooth, and BLE Beacon capabilities, powered by two high-performance 32-bit LX6 CPUs and a 7-stage pipeline architecture. Its main frequency can be adjusted from 80MHz to 240MHz and includes on-chip sensors such as a Hall sensor and temperature sensor, among others.

Note: The product dimension may have2% error. The product color may have some variation due to the light effect.

Features :-

ESP32-CAM :

  1. The smallest 802.11b/g/n Wi-Fi BT SoC module.
  2. Low power 32-bit CPU, can also serve the application processor.
  3. Up to 160MHz clock speed, summary computing power up to 600 DMIPS.
  4. Built-in 520 KB SRAM, external 4MPSRAM.
  5. Supports UART/SPI/I2C/PWM/ADC/DAC.
  6. Support OV2640 and OV7670 cameras, built-in flash lamp.
  7. Support image WiFI upload.
  8. Supports TF card.
  9. Supports multiple sleep modes.
  10. Embedded Lwip and FreeRTOS.
  11. Supports STA/AP/STA+AP operation mode.
  12. Support Smart Config/AirKiss technology.
  13. Support for serial port local and remote firmware upgrades (FOTA).

Specifications :-

  1. Wireless Module: ESP32-S WiFi 802.11 b/g/n + Bluetooth 4.2 LE module with PCB antenna, u.FL connector, 32Mbit SPI flash, 4MBit PSRAM.
  2. External Storage: micro SD card slotup to 4GB.
  3. Camera
    • FPC connector.
    • Support for OV2640 (sold with a board) or OV7670 cameras.
    • Image Format: JPEG(OV2640 support only ), BMP, grayscale.
    • LED flashlight.
  4. Expansion: 16x through-holes with UART, SPI, I2C, PWM.
  5. Misc: Reset button.
  6. Power Supply: 5V via pin header.
  7. Power Consumption.
  1. Flash LED off: 180mA @ 5V.
  2. Flash LED on to maximum brightness: 310mA @ 5V.
  3. Deep-sleep: 6mA @ 5V min.
  4. Modem-sleep: 20mA @ 5V min.
  5. Light-sleep: 6.7mA @ 5V min.
  1. Dimensions (ESP32): 40 x 27 x 12 (LxWxH) mm.
  2. Temperature Range: Operating: -20 ~ 85 ; storage: -40 ~ 90 @ <90%RH.


Package Includes :

1 x ESP32 CAM WiFi Module.

1 x OV2640 Camera Module 2MP.


Additional information:-

Input Voltage (Volt)

5
Operating Temperature (C)

-20 ~ 85
SPI Flash

Default 32Mbit
RAM

520KB SRAM + 4MB PSRAM
Bluetooth

Bluetooth 4.2 BR/EDR and BLE standards
Wi-Fi

802.11 b/g/n/
UART Baudrate

115200 bps
Image Output Format

JPEG( OV2640 support only ), BMP, GRAYSCALE
Spectrum Range

2412 ~2484 MHz

* Product Images are shown for illustrative purposes only and may differ from actual product.
