BTS7960B 43A H-Bridge Motor Driver

BTS7960B 43A H-Bridge Motor Driver

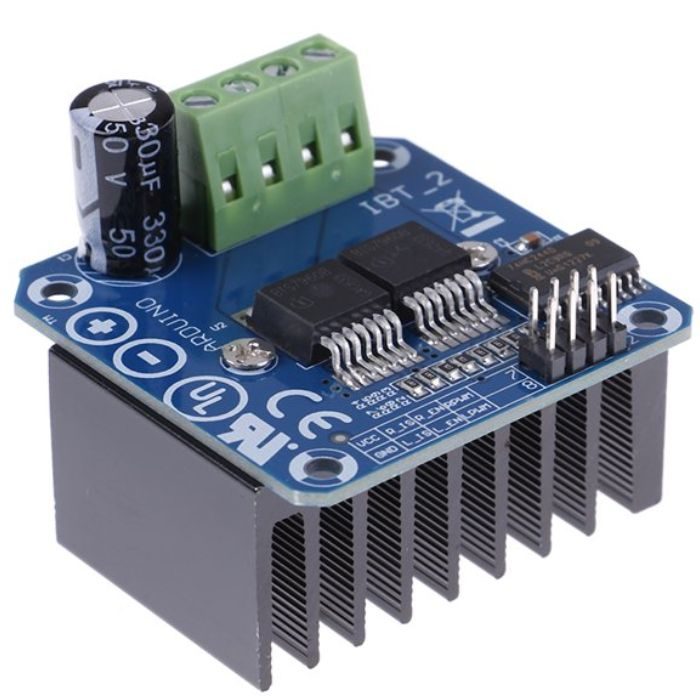

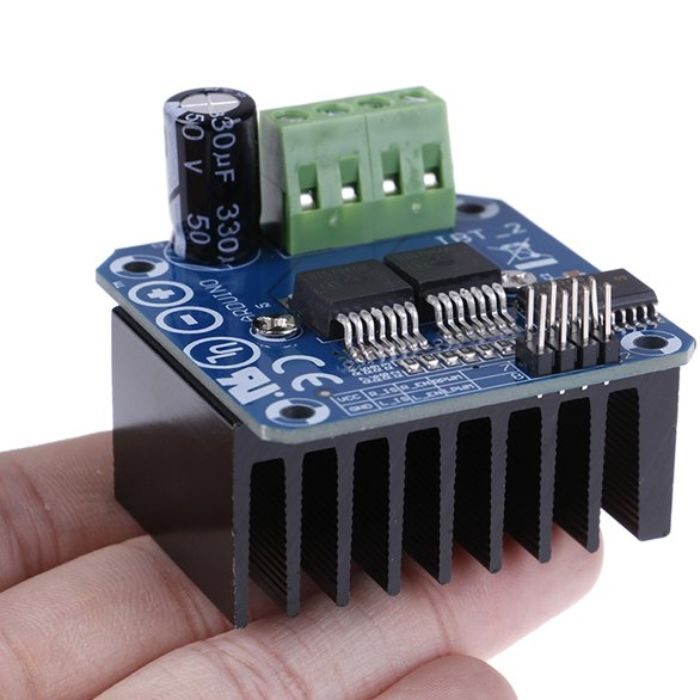

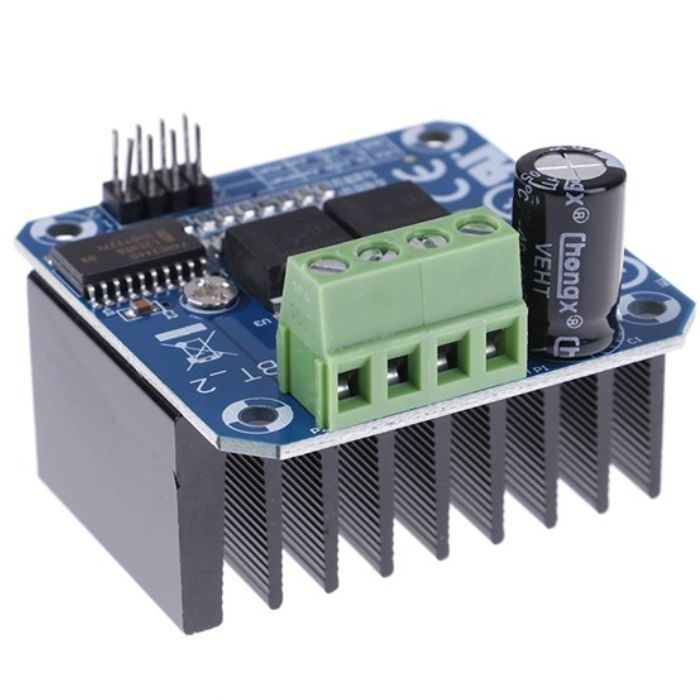

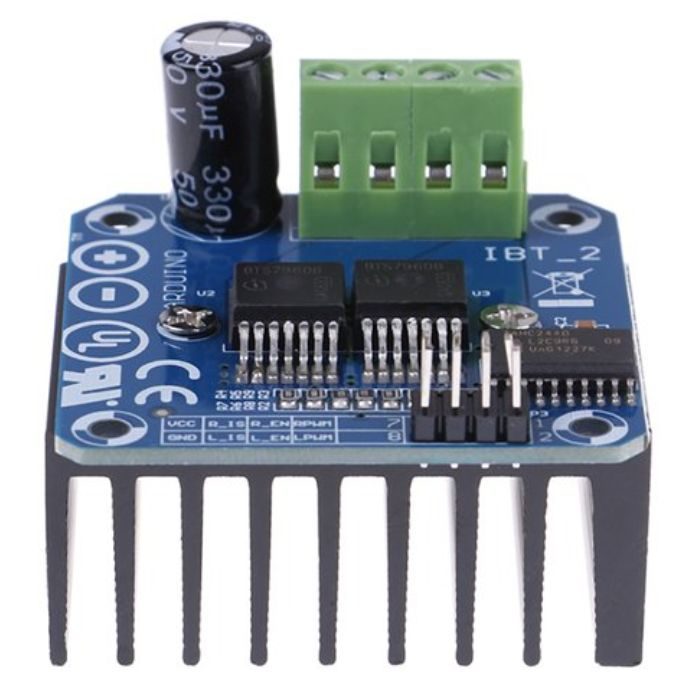

The Double BTS7960 43A H-Bridge High-Power Motor Driver Module is an advanced, fully integrated high-current H-bridge specifically engineered for motor drive applications utilizing the robust BTS7960 high current half bridge.

This driver falls within the NovalithICTM family, incorporating one p-channel high-side MOSFET and one n-channel low-side MOSFET, along with an integrated driver IC. The inclusion of a p-channel high-side switch negates the necessity for a charge pump, thereby minimising electromagnetic interference (EMI).

The integrated driver IC enhances microcontroller interfacing by offering logic level inputs, current sense diagnostics, slew rate adjustment, dead time generation, and comprehensive protection features against overtemperature, overvoltage, undervoltage, overcurrent, and short circuit conditions.

The Double BTS7960 43A H-Bridge Motor Driver Module presents a cost-effective solution for high-current PWM motor drives while being compact in size. To effectively control the motor using this driver, essential components required include:

• Arduino

• jumper wires

• batteries or power supply

Features

• Path resistance of typ. 16 mΩ @ 25 °C
• Low quiescent current of typ. 7 µA @ 25 °C
• PWM frequency capability up to 25 kHz with active freewheeling
• Switched mode current limitation to minimise power dissipation during overcurrent
• Current limitation threshold of 43 A typ.
• Status flag diagnostics with current sense functionality
• Overtemperature shutdown with latch behaviour
• Overvoltage lockout feature
• Undervoltage shutdown capability
• Driver circuit featuring logic level inputs
• Customizable slew rates for optimised EMI performance
