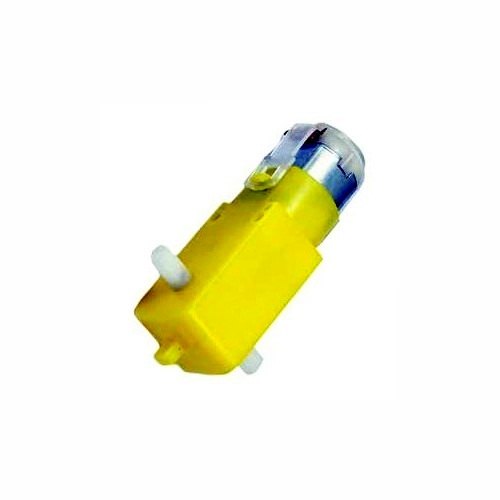

The 100 RPM Dual Shaft BO Motor - Straight motor offers excellent torque and RPM at lower operating voltages, which is one of its main advantages.
The compact shaft design, combined with matching wheels, creates an optimized solution for your application or robotic project. Its lightweight structure and mounting holes on the body make it ideal for in-circuit placements. This motor is compatible with 69mm diameter wheels for plastic gear motors.
Serving as an alternative to our metal gear DC motors, it operates at a voltage range of 3-12V, making it perfect for constructing small to medium-sized robots.
This motor is a great choice for DIY enthusiasts, as it is affordable, compact, easy to install, and well-suited for use in mobile robot cars. They are frequently used in our 2WD platforms.
Specifications of 100 RPM Dual Shaft BO Motor - Straight:-
- Shaft length: 7 mm
- Motor Design: Straight Dual Shaft
- Shaft Diameter: 5.5 mm
- Size: 55 x 48 x 23 mm.
- Operating Voltage: 3 to 12V.
- Current (without loading): 40-180mA.
- RPM: 100 rpm.
- Output Torque: 0.35 kg cm.
Features of 100 RPM Dual Shaft BO Motor - Straight:-
- Cost-effectiveness of the injection-molding process.
- Elimination of machining operations.
- Low density: lightweight, low inertia.
- Uniformity of parts.
- Capability to absorb shock and vibration as a result of elastic compliance.
- Ability to operate with minimum or no lubrication, due to inherent lubricity.
- The relatively low coefficient of friction.
- Corrosion-resistance; elimination of plating, or protective coatings.
- The quietness of operation.
- Tolerances are often less critical than for metal gears, due in part to their greater resilience.
- Consistency with the trend to greater use of plastic housings and other components.
* Product Images are shown for illustrative purposes only and may differ from actual product.
