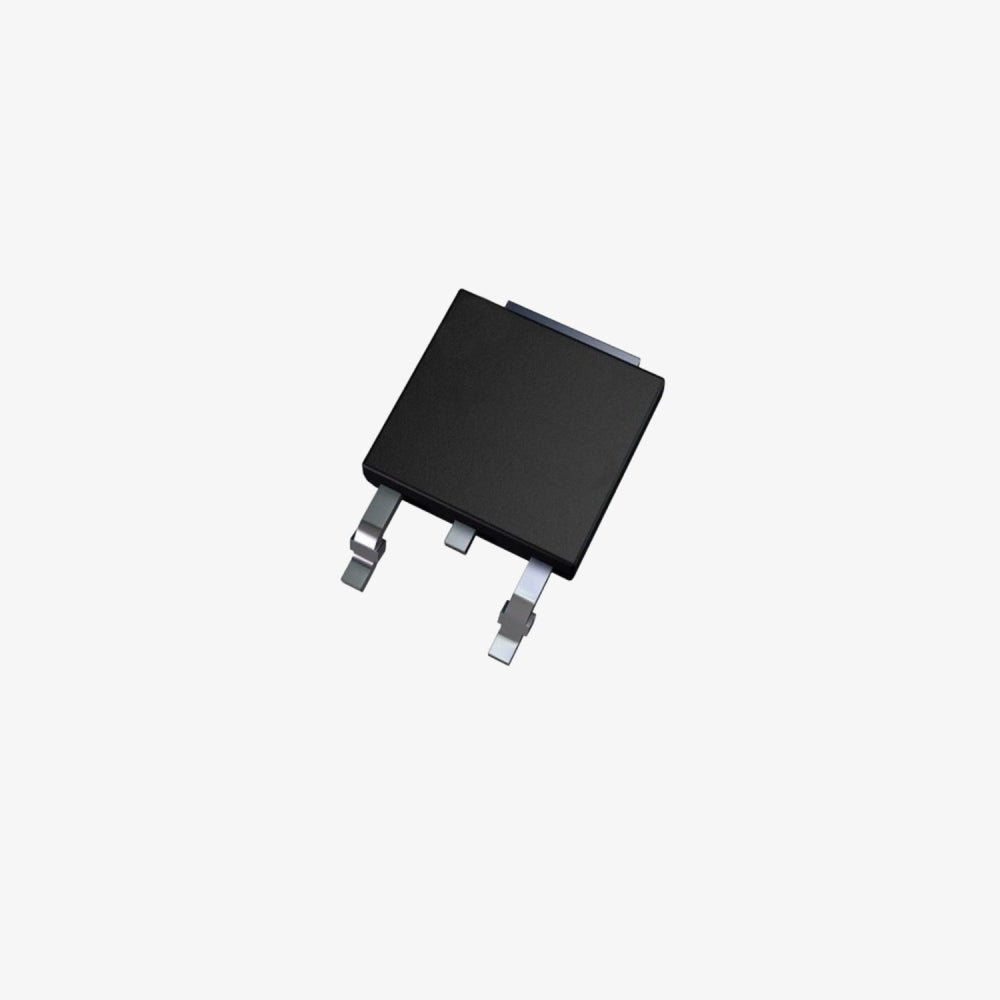

78M05/7805 - 5V Positive Voltage Regulator IC - TO-252 SMD Package

The 78M05/7805 is a 5V positive voltage regulator IC engineered to deliver a consistent output voltage with robust current handling capabilities. Encased in a TO-252 surface-mount device (SMD) package, this component is ideal for compact circuit board designs. Below is a comprehensive overview of the product:

Key Features of the 7805 Voltage Regulator:

• Type: Positive Voltage Regulator

• Package: TO-252 (Surface Mount Device)

• Output Voltage: 5V

• Maximum Output Current: 500mA

• Input Voltage Range: Up to 35V

• Dropout Voltage: Typically 2V

• Thermal Overload Protection: Safeguards the IC from overheating

• Short-Circuit Protection: Prevents damage from excessive current

• Output Voltage Tolerance: ±2%

Applications:

• Power Supplies: Ideal for implementation in regulated power supply circuits.

• Industrial Equipment: Utilised in numerous industrial applications where stable voltage is essential.

• Consumer Electronics: Perfect for maintaining stable voltage in consumer electronic devices.

• Telecommunication: Essential for telecommunication equipment requiring a regulated voltage supply.

• Battery-Powered Devices: Well-suited for battery-operated applications due to its low dropout voltage.

Pin Configuration of the 7805 IC:

• Pin 1 (GND): Ground

• Pin 2 (Input): Input voltage

• Pin 3 (Output): Regulated output voltage

• Tab: Internally connected to Pin 2 (Output) for effective heat dissipation

Electrical Characteristics:

• Input Voltage (Vin): Up to 35V

• Output Voltage (Vout): 5V

• Output Current (Iout): Maximum 500mA

• Dropout Voltage: Typically 2V

• Output Voltage Tolerance: ±2%

• Load Regulation: 0.1% (maximum)

• Line Regulation: 0.02%/V (maximum)

• Quiescent Current: Typically 4mA

Package Includes:

1 x 78M05/7805 - 5V Positive Voltage Regulator IC - TO-252 SMD Package

Note: Product images are for illustrative purposes only and may vary from the actual product.
