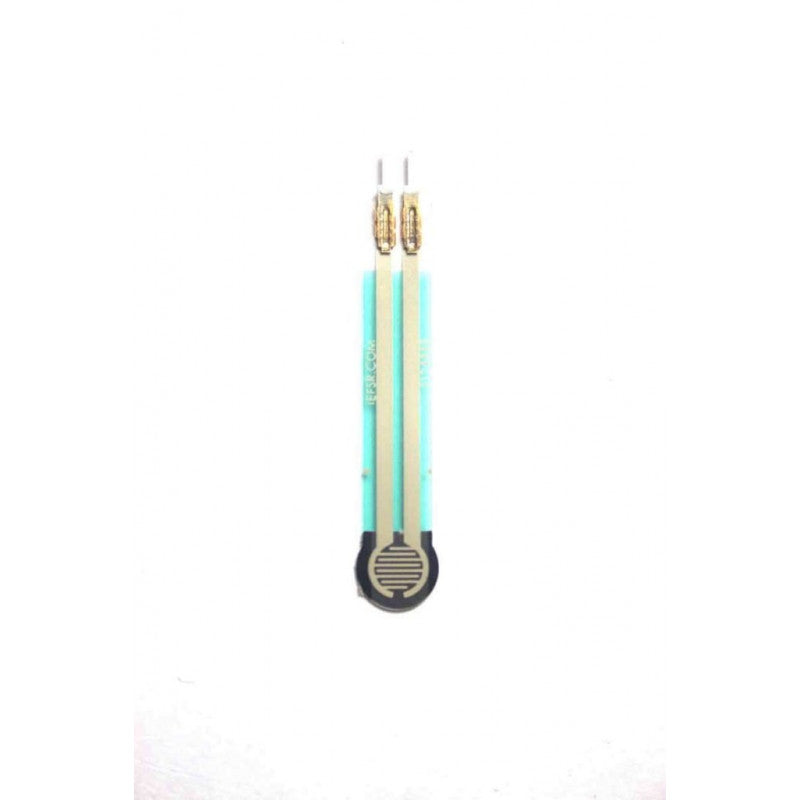

Force Sensitive Resistor (FSR)
This is a small force-sensitive resistor with a 0.16" (4 mm) diameter active sensing area. This FSR varies its resistance depending on how much pressure is applied. The harder the force, the lower the resistance. When no pressure is applied, resistance exceeds 1MΩ, and with full pressure, it drops to about 2.5kΩ.
Two pins extend from the bottom of the sensor with a 0.1" pitch, making it breadboard-friendly.
These sensors are simple to set up and great for pressure sensing, but they aren't incredibly accurate. Use them to detect squeezing or pressing actions, but avoid using them as precision scales.
Applications:-
- Testing and Measurement Equipment
- Embedded Electronics
- OEM Development Kits
- Consumer Electronics
- Multimeters
Features:-
- Easily customizable to a wide range of sizes
- Cost-effective
- Ultra-thin: 0.45 mm
- Robust: up to 10 million actuations
- Simple and easy to integrate
Package Includes:-
- 1 × Force Sensor (5.08 mm Circle)
Specifications:-
| Parameter |
Value |
| Actuation Force |
0.1 Newtons |
| Force Sensitivity Range |
0.1 – 10.02 Newtons |
| Non-Actuated Resistance |
10MΩ |
| Device Rise Time |
<3 microseconds |
| Operating Temperature |
-30°C to 60°C |
| Clock Speed |
16 MHz |
| Flash Memory |
32 KB |
| Overall Length |
4.5 cm (45 mm) |
| Overall Width |
0.7 cm (7 mm) |
| Sensing Area |
0.4 cm (4 mm) |
*Product images are shown for illustrative purposes only and may differ from the actual product.
