Description

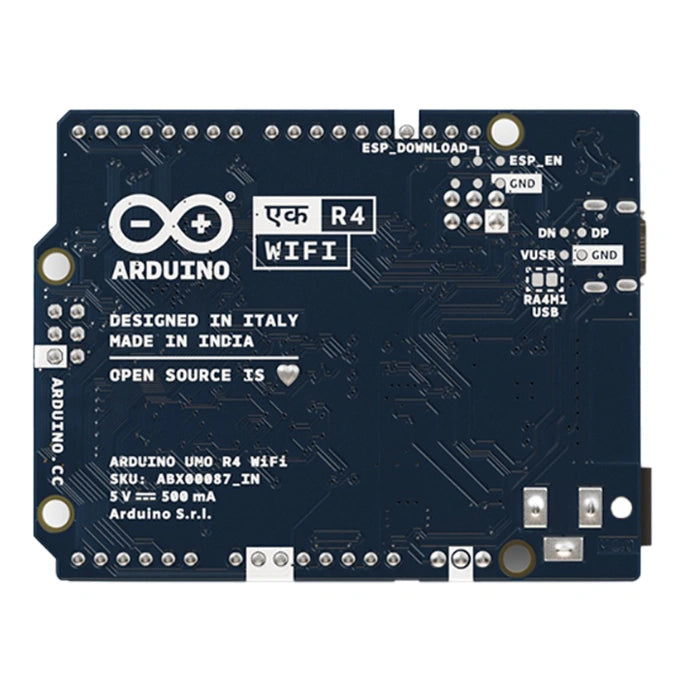

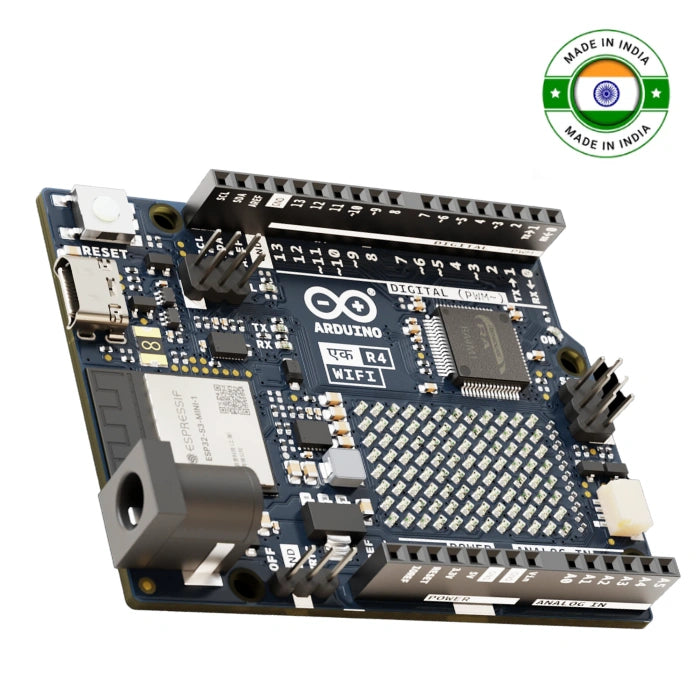

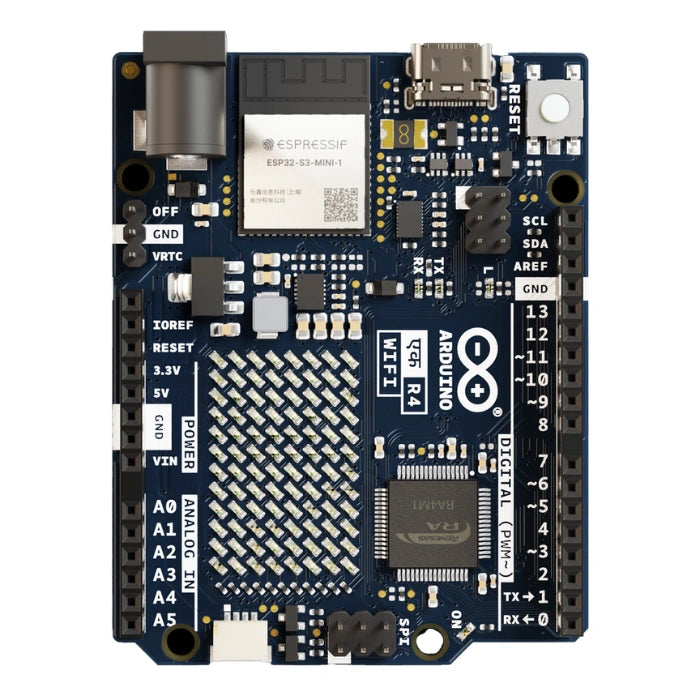

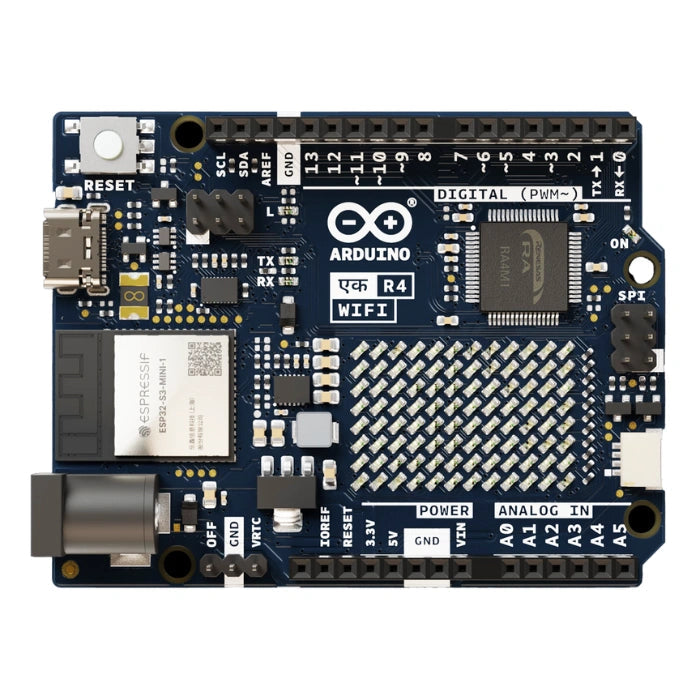

xOriginal Arduino UNO EK (एक) R4 WiFi - Made in India
The Original Arduino Uno EK R4 Wi-Fi, proudly manufactured in India, enhances the UNO series with an advanced 32-bit architecture. It operates on the Renesas R7FA4M1AB3CFM microcontroller, which boasts a 48 MHz Arm Cortex-M4 processor, along with 256 kB Flash and 32 kB SRAM.
Equipped with integrated WiFi and Bluetooth through the ESP32-S3 module, this board streamlines the development of IoT applications. The inclusion of a programmable 12×8 LED matrix adds a creative dimension, making it perfect for animations and games. Suitable for both novices and experienced developers, the UNO R4 WiFi supports an input voltage range of 6-24 V and can be powered via USB-C. Benefit from comprehensive documentation and full compatibility with legacy Arduino shields.
Engage with the Arduino UNO R4 WiFi and transform your innovative concepts into reality.
Features
-
Main MCU
Renesas RA4M1 (R7FA4M1AB3CFM#AA0) – Oversees all pin headers and communication interfaces -
Processor & Performance
48 MHz Arm Cortex-M4 with Floating Point Unit (FPU)
5V operating voltage
Real-Time Clock (RTC)
Memory Protection Unit (MPU)
Digital-to-Analog Converter (DAC) -
Memory
256 kB Flash Memory
32 kB SRAM
8 kB EEPROM (Data Memory) -
Peripherals
Capacitive Touch Sensing Unit (CTSU)
USB 2.0 Full-Speed (USBFS)
14-bit ADC
Up to 12-bit DAC
Operational Amplifier (OPAMP) -
Power
5V operating voltage for RA4M1
Recommended input voltage: 6-24V
VIN pin & barrel jack (6-24V input)
USB-C power supply (5V) -
Communication
1x UART (D0, D1)
1x SPI (D10-D13, ICSP header)
1x I2C (A4, A5, SDA, SCL)
1x CAN (D4, D5, requires external transceiver) -
Wireless Connectivity
Wi-Fi 4 (802.11 b/g/n) – Up to 150 Mbps, 2.4 GHz band
Bluetooth 5
Comparison Table
| Feature |
 Original Arduino Uno EK R4 WiFi (Made in India) |
 Arduino Uno R4 WiFi (Standard) |
|---|---|---|
| Microcontroller (MCU) | Renesas R7FA4M1A (Cortex-M4, 48 MHz) | Renesas RA4M1 (Cortex-M4, 48 MHz) |
| Wi-Fi / Bluetooth | ESP32-S3 module | ESP32-S3 module (up to 240 MHz) |
| Flash / SRAM / EEPROM | 256 kB / 32 kB SRAM / 8 kB EEPROM | 256 kB / 32 kB SRAM / 8 kB EEPROM |
| On-board LED matrix | 12 × 8 programmable red LED display | 12 × 8 programmable red LED display |
| Qwiic connector | Yes (for I²C, 3.3 V) | Yes (compatible) |
| Peripherals | 14-bit ADC, 12-bit DAC, CAN bus, RTC, OP-AMP | 14-bit ADC, 12-bit DAC, CAN bus, RTC, OP-AMP |
| Power & Input Voltage | 5V operating; 6–24V VIN & USB-C | 5V operating; 6–24V VIN & USB-C |
| Dimensions / Form Factor | UNO form factor (~68.8 × 53.3 mm), shield-compatible | UNO form factor (~68.8 × 53.3 mm), shield-compatible |
| Country of Origin | Made in India | Official Arduino production (Italy/Global) |
Specifications
| Specification | Details |
|---|---|
| Microcontroller | R7FA4M1AB3CFM |
| Processor | 48 MHz Arm Cortex-M4 |
| Connectivity |
