RS232 to TTL Serial Interface Module - 4 Pin

The RS232 to TTL Serial Interface Module is designed around the MAX3232 transceiver IC, enabling seamless communication between TTL and RS232 ports by converting the necessary electrical signals.

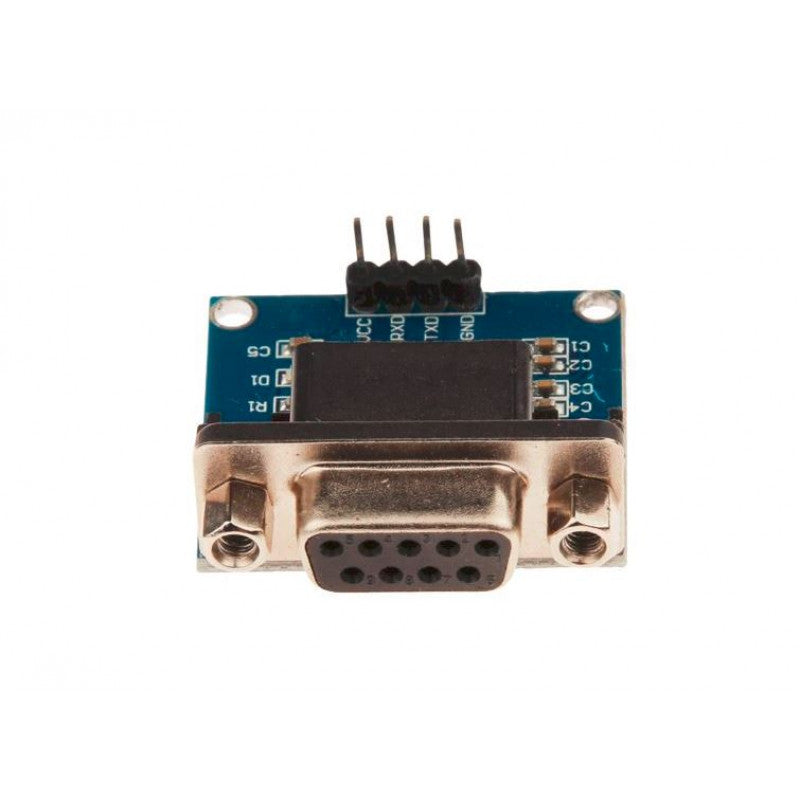

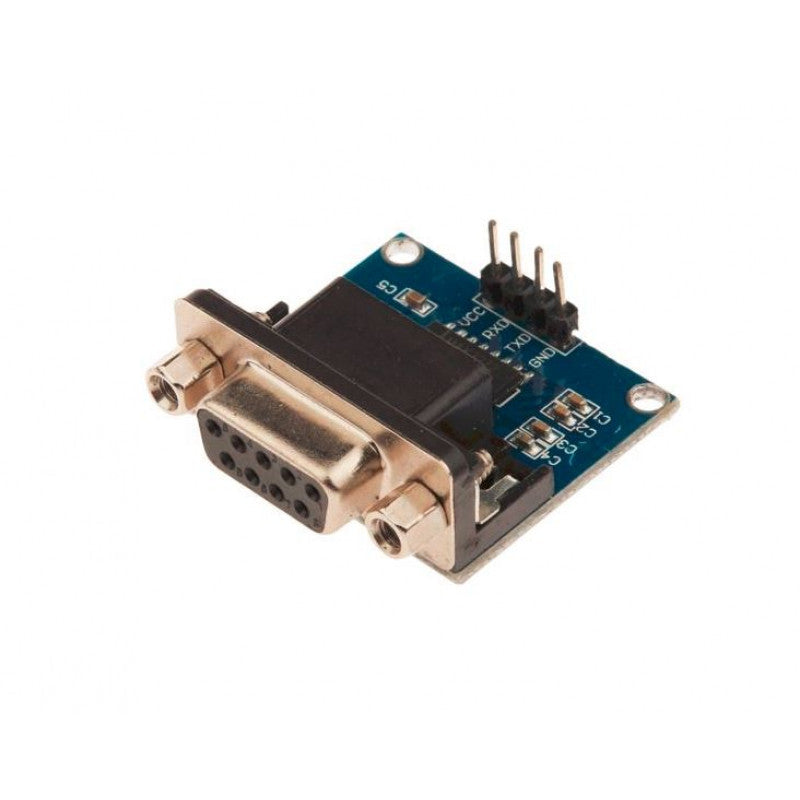

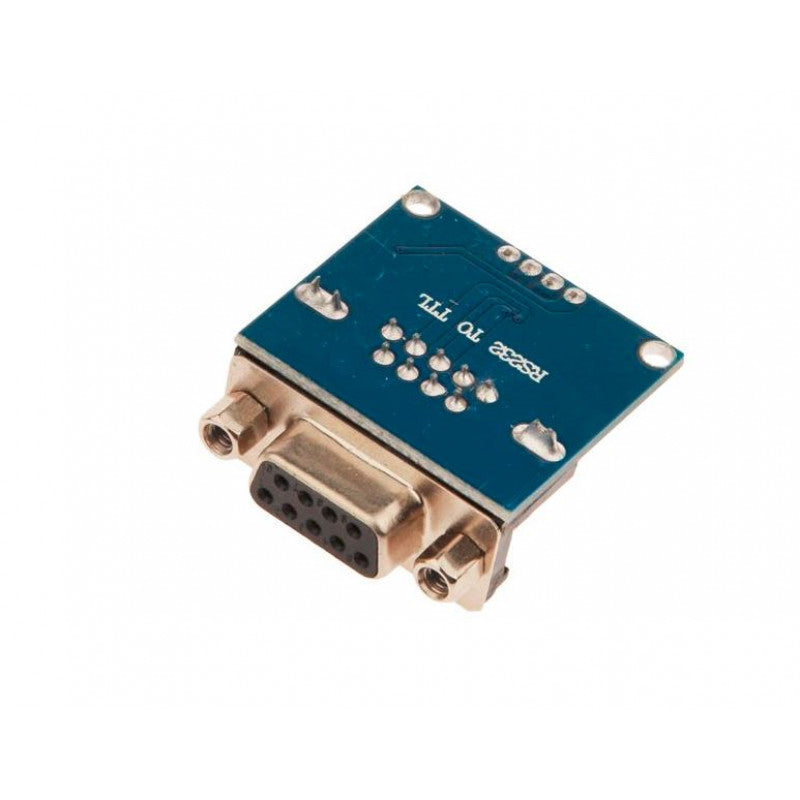

This module typically features a DB9 connector on one side for direct connection to a computer’s COM port, and four header pins with jumper cables on the other side, allowing easy connection to a breadboard or microcontroller project board.

The module utilizes the MAX3232CSE+ IC in a 16-pin narrow SO package, requiring a voltage of 3.0V to 5.5V for operation. It includes two receivers and two transmitters, supports a maximum data rate of 120 kbps, and uses four 0.1µF charge-pump capacitors. It's also compatible with the widely used MAX3232 IC pinout. Designed to work with UART systems, it is suitable for microcontrollers like ATMEL and PIC.

This module, equipped with a DB9 connector, is ideal for connecting serial devices like DVD players, routers, and hard drives to microcontroller systems for upgrades or other uses.

Features :-

• It is widely used in radio modification, phone flash, XBOX360 flash, GPS, vehicle detection, DVD flash, hard disk repair set-top box upgrade.

• It can be used to program STC MCU, NXP MCU, Renesas MCU, STM32 MCU, N+-2EC MCU

• Pre-assembled compact size board

• Suitable for use with most microcontrollers

• Operates up to 250 k bit/s

Specifications :-

• IC Chip - MAX3232

• Operating Voltage (VDC)- 3.3 ~ 5.5

• Width  (mm) - 32

• Height (mm) - 15

• Weight (gm) - 12

Package Includes :-

1 x RS232 to TTL Serial Interface Module - 4 Pin
