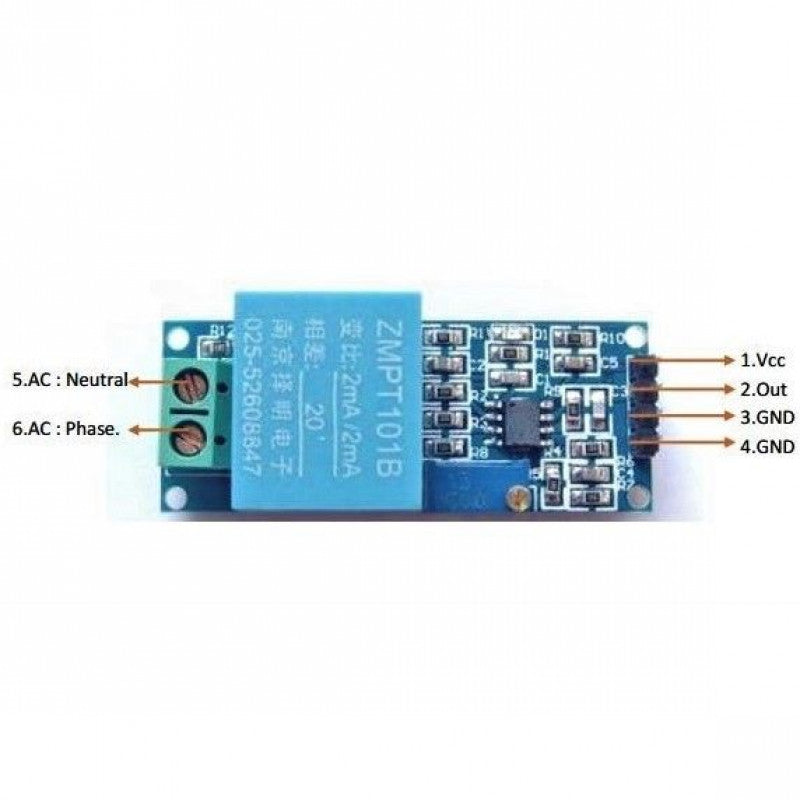

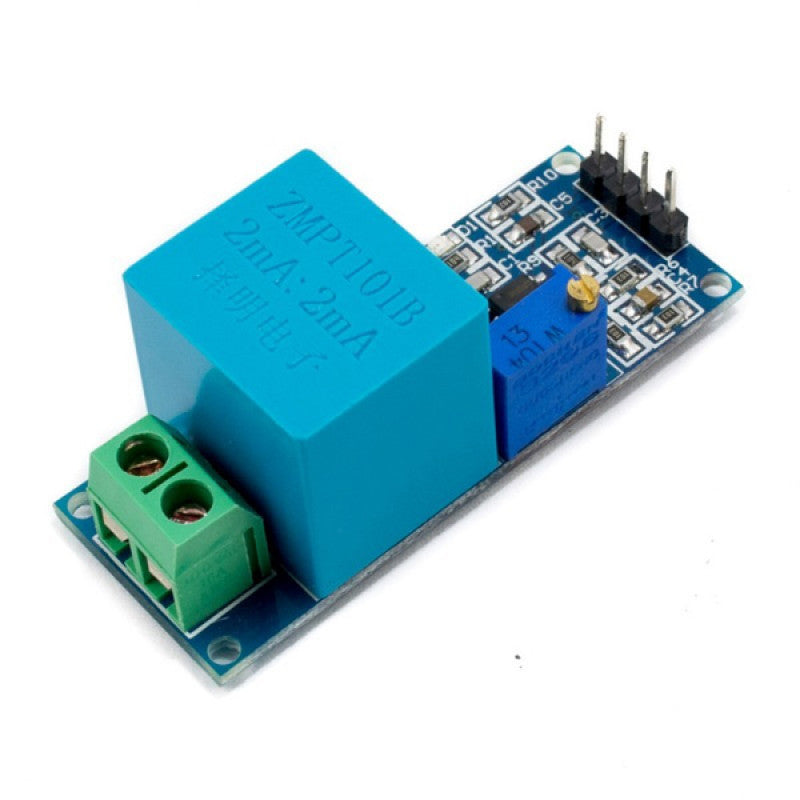

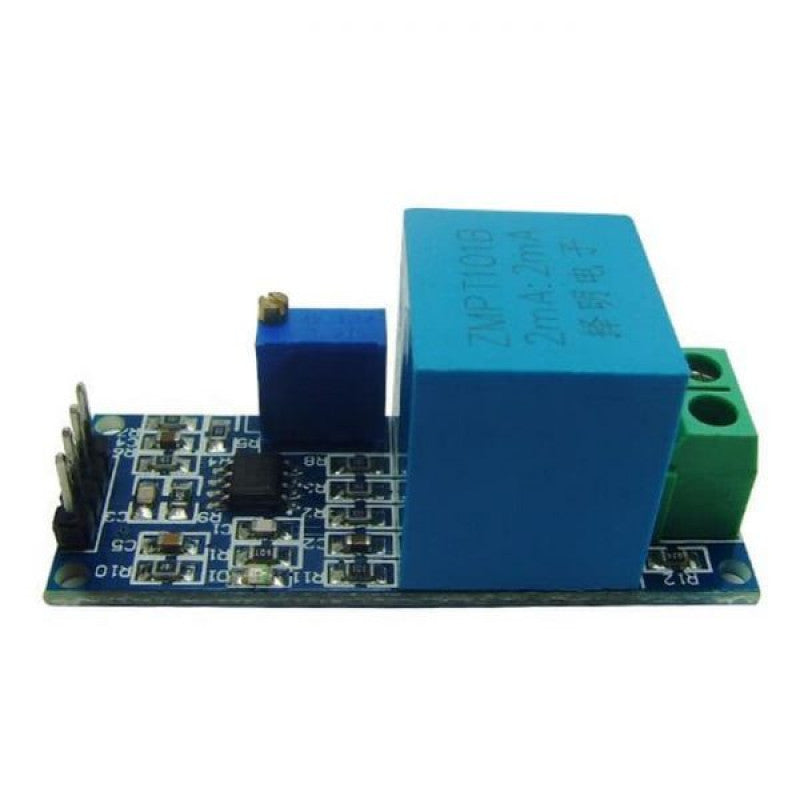

ZMPT101B AC Single Phase Voltage Sensor Module

The ZMPT101B AC Single-Phase Voltage Sensor Module is built around the high-precision ZMPT101B voltage transformer. It is an excellent choice for DIY projects requiring accurate AC voltage measurement with a voltage transformer. This module is particularly well-suited for use with open-source platforms like Arduino, ESP8266, and Raspberry Pi. It is ideal for electrical projects that demand high galvanic isolation, a wide range of measurement, high accuracy, and consistent performance.

The module features an onboard precision miniature voltage transformer and an active phase AC output voltage transformer. It includes a precision operational amplifier circuit for signal sampling and appropriate compensation to ensure precise functionality. Capable of measuring AC voltages up to 250V, the module offers an adjustable analog output for versatility. This brand-new, high-quality module delivers reliable and high-performance results.

FEATURES of ZMPT101B AC Single Phase Voltage Sensor Module:-

• Voltage upto 250 volts can be measured

• Light weight with on-board micro-precision voltage transformer

• High precision on-board op-amp circuit

• Operating temperature : 40ºC ~ + 70ºC

• Supply voltage 5 volts to 30 volts

ADVANTAGES of ZMPT101B AC Single Phase Voltage Sensor Module:-

• Analog output corresponding quantity can be adjusted.

• Pcb board size : 49.5 (mm) x19.4 (mm)

• Good consistency, for voltage and power measurement

• Very efficient and accuracy
