Accurate flow measurement is crucial from both qualitative and economic perspectives. Flow meters have proven to be excellent devices for measuring water flow, and with the well-known YF-S201 water flow sensor, creating a water management system has become straightforward. For instance, you can build a robotic cocktail dispensing machine that uses this sensor to measure components like soda and water with precision.

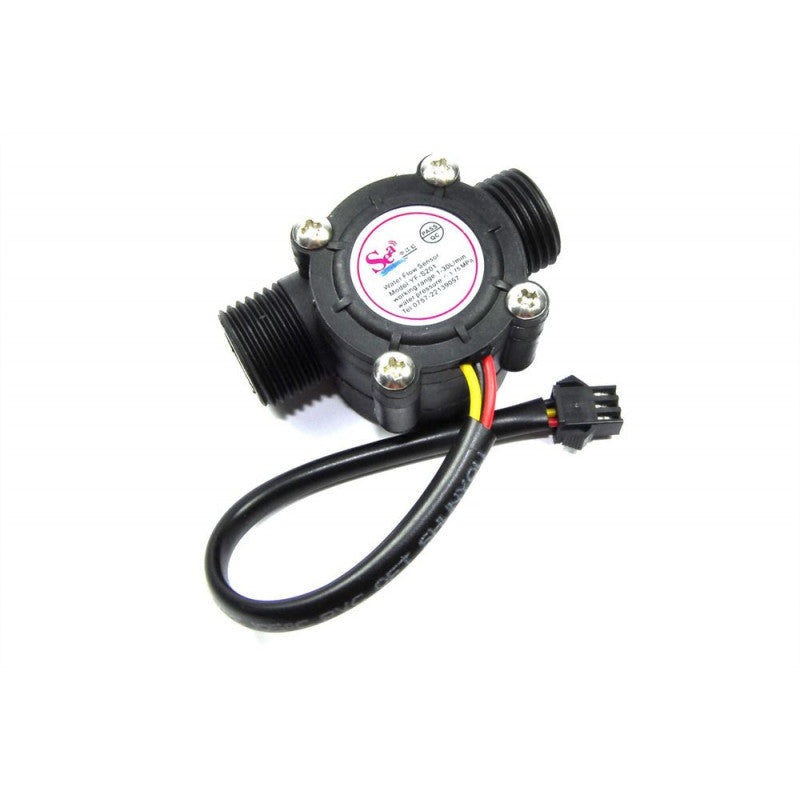

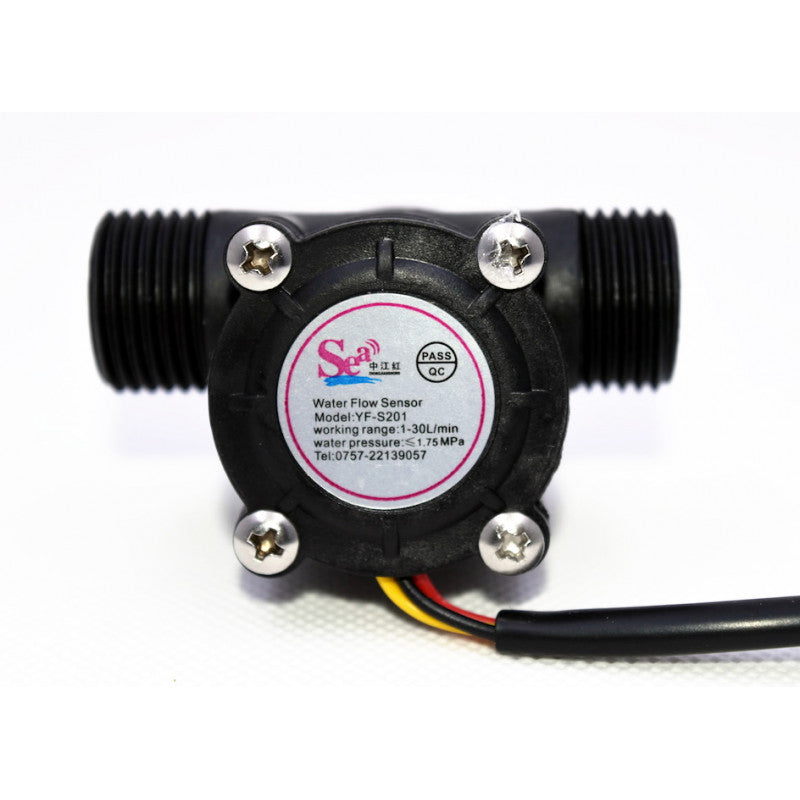

The YF-S201 1/2 inch water flow sensor is designed to be installed inline with the water pipe and features a pinwheel sensor that tracks the amount of water flowing through it. It includes an integrated magnetic Hall-effect sensor that generates an electrical pulse with each revolution. The YF-S201 sensor has just three wires, making it easy to connect to any microcontroller or Arduino board. It operates on +5V Vcc and provides pulse output, requiring a secure fit within the water pipeline.
Specifications of 1/2 inch Water Flow Sensor - YF-S201:-
- Model: YF-S201
- Sensor Type: Hall effect
- Working Voltage: 5 to 18V DC (min tested working voltage 4.5V)
- Max current draw: 15mA @ 5V
- Output Type: 5V TTL
- Working Flow Rate: 1 to 30 Liters/Minute
- Working Temperature range: -25 to +80℃
- Working Humidity Range: 35%-80% RH
- Accuracy: ±10%
- Maximum water pressure: 2.0 MPa
- Output duty cycle: 50% +-10%
- Output rise time: 0.04us
- Output fall time: 0.18us
- Flow rate pulse characteristics: Frequency (Hz) = 7.5 * Flow rate (L/min)
- Pulses per Liter: 450
- Durability: minimum 300,000 cycles
